Santak C2KR(S) - RS232 Interface; AS400 Interface

11
RS232 Interface
5.5.2 AS400 INTERFACE
Except for the communication protocol as mentioned above, this series UPS
has an optional AS400 card for AS400 communication protocol. Please
contact your local distributor for details.

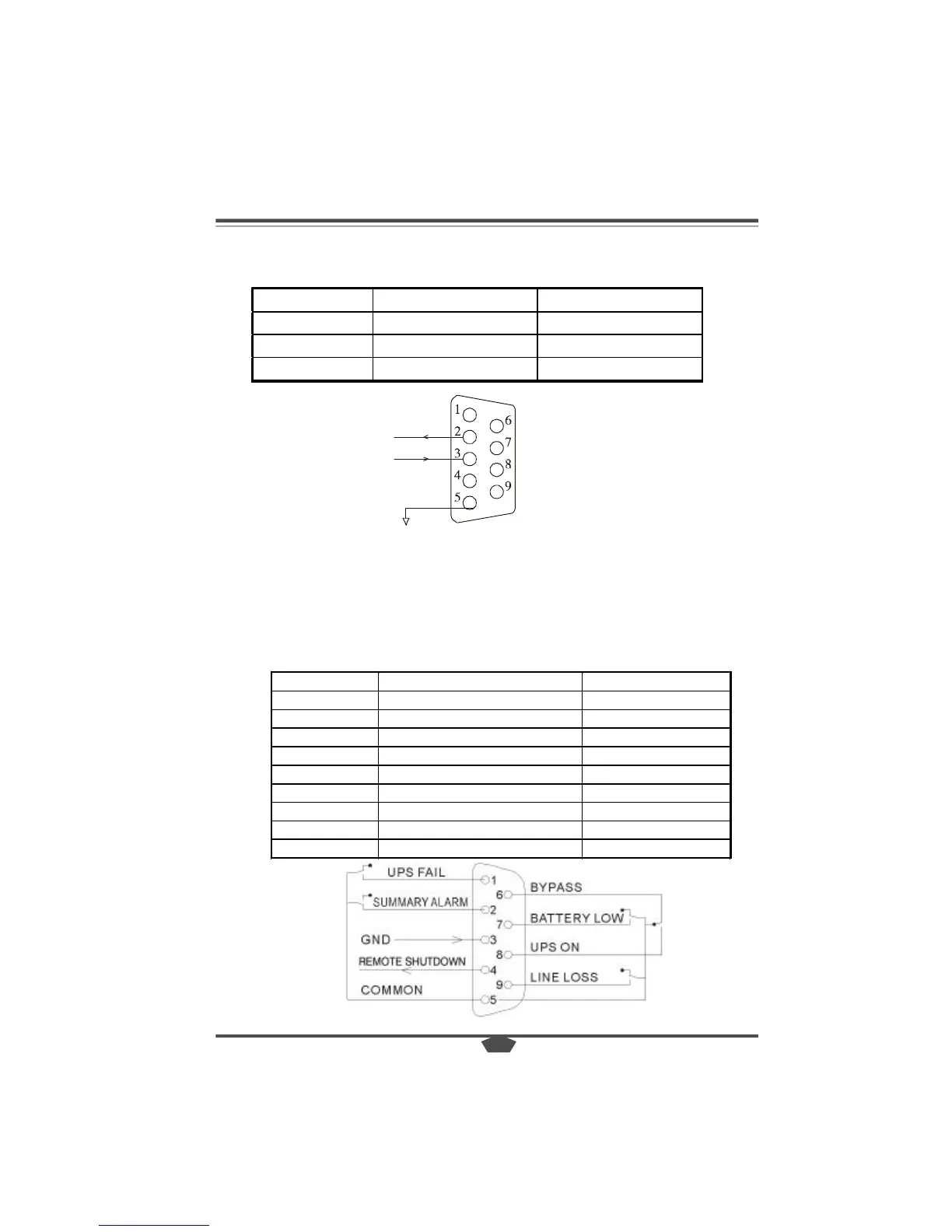

The following is the pin assignment and description of DB-9 connector in
AS400 card.
5. TECHNICAL DATA
5.5.1 RS232 INTERFACE
The following is the pin assignment and description of DB-9 connector.
Pin# Description I/O
2 RS232 Tx Output
3 RS232 Rx Input
5 Ground Input
RX
T
X
GND
Pin# Description I/O type
1 UPS Failure Output
2 Summary Alarm Output
3 GND
4 Remote shutdown Input
5 Common
6 Bypass Output
7 Battery Low Output
8 UPS ON Output
9 Utility power failure(Line Loss) Output
DB9 Interface of AS400 communication protocol
