load level battery level
INDICATOR 1 96%-105% 1%-35%
INDICATOR 2 76%-95% 36%-55%
INDICATOR 3 56%-75% 56%-75%
INDICATOR 4 36%-55% 76%-95%
INDICATOR 5 1%-35% 96%-100%
3.SYSTEM DESCRIPTION
3.2 REAR PANEL

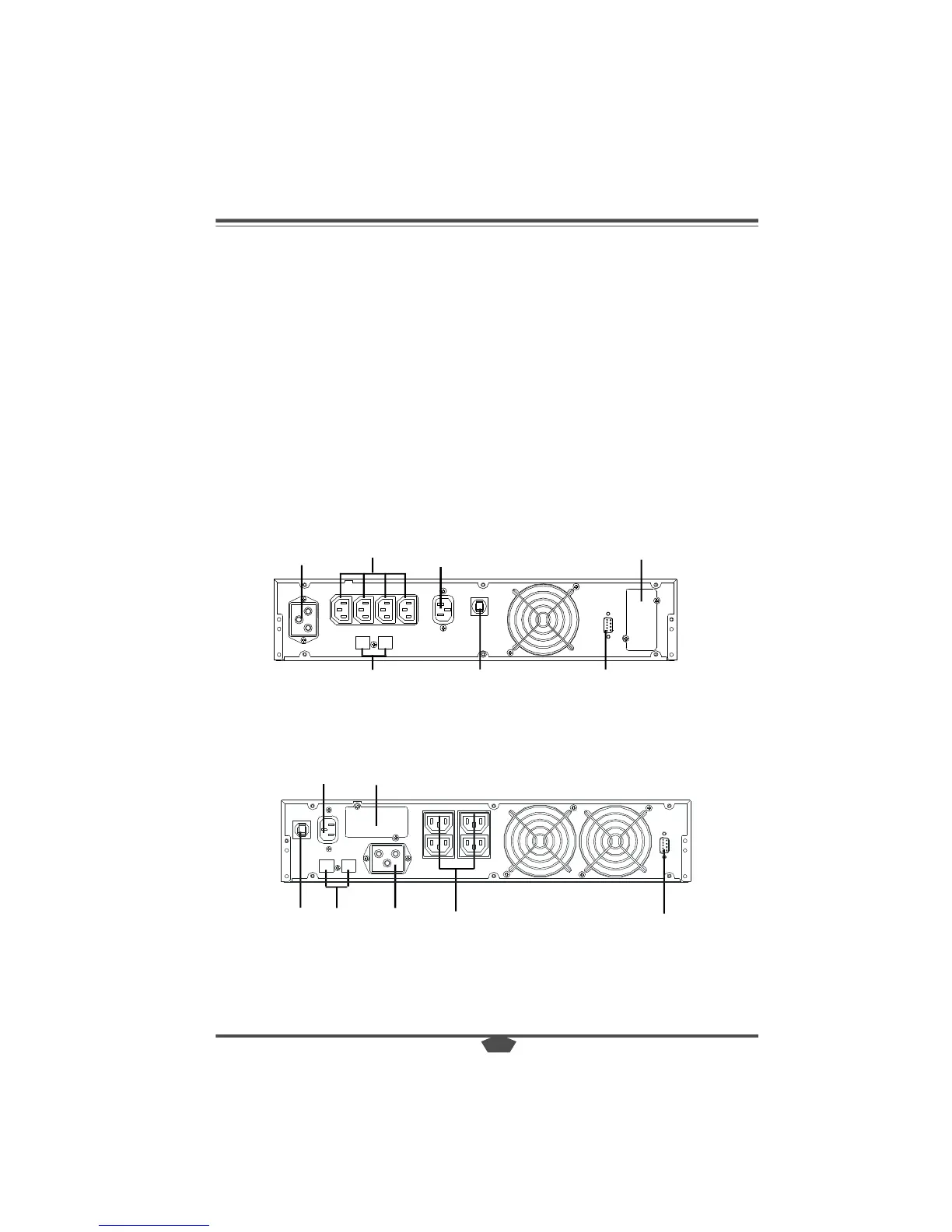

The rear panels of the UPS and the battery packs are shown as below:
INDICATOR 1-5
● Shows the load level in utility power mode.
● Shows the battery level in battery mode.
1K(S)
Only available
for 1KS
Output socket
Intelligent slot
Surge protection Input breaker Communication port
Input
socket
(RJ45)
2K
Communication port
Surge
protection
Intelligent
slot
Output
socket
External
battery
socket
Input
breaker
Input
socket
(RJ45)
