Santon Premier Plus 210 - Primary Circulating Pump Performance

Primary circulating pump:
Model No: Grundfos
Working pressure: 1 MPa (10 bar) max.
Voltage rating: 230V ac, 50Hz
Starting capacitor: 2µF
Enclosure rating: IP42
Electrical data
SPEED
SETTING
SPEED
R.P.M.
INPUT
POWER (W)
FULL LOAD
CURRENT (A)
LOCKED ROTOR
CURRENT (A)
lll 1750 95 0.44 0.47
ll 1100 65 0. 30 0.31
l 750 40 0.17 0.18
1
3
2
0.0
0.0
0.0 0.1 0.2
0.3
0.4
0.5
0.6
0.7 0.8 0.9 1.0 1.1 1.2
0.5
2.5
3.0 3.5 4.02.01.51.0
1.0
2.0
3.0
4.0
5.0
6.0
H (m)
( /h)
3
m
(l/s)

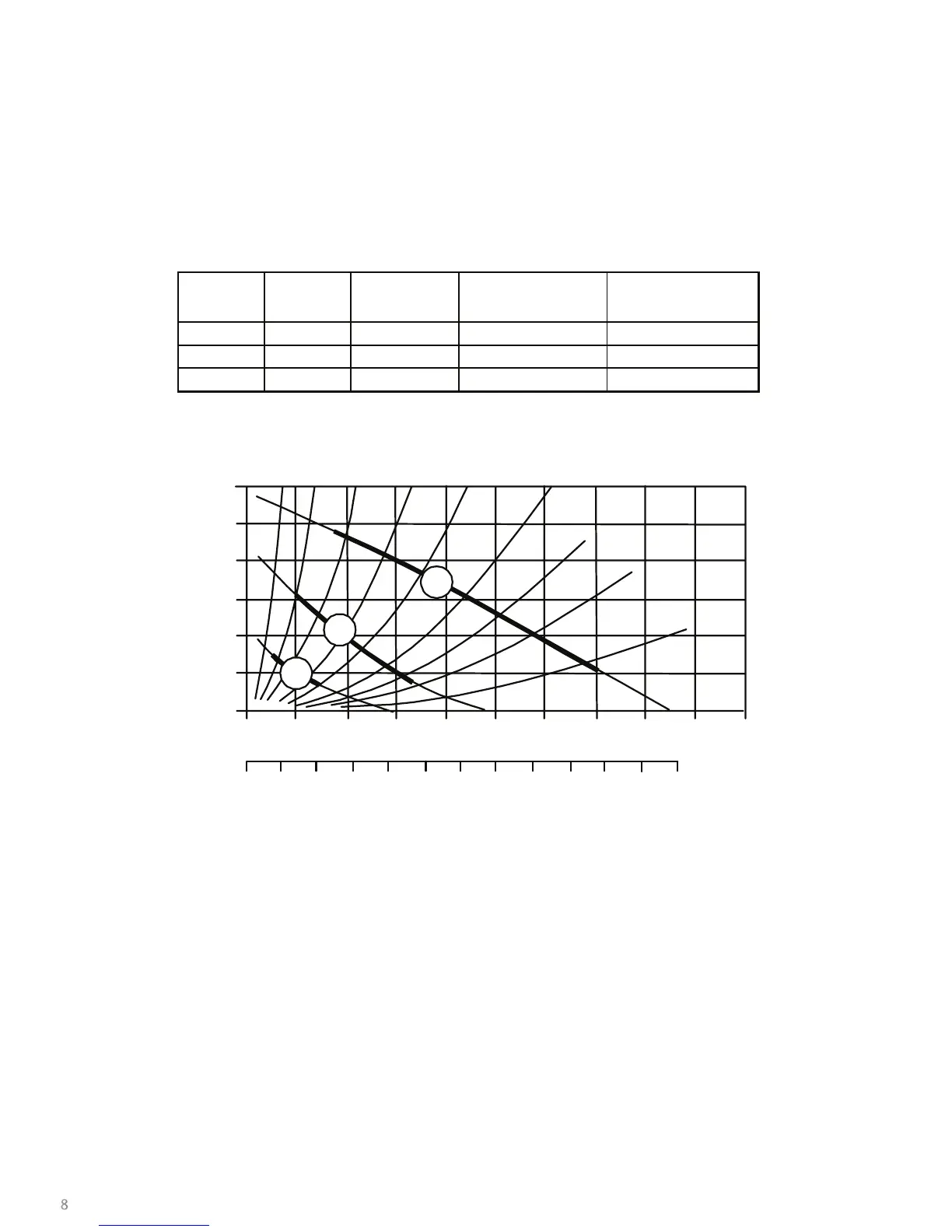

Pump Curves
Graph 2 - Pump performance curves
