Santon R25 - TEMPERATURE SETTINGS; Control Thermostat Adjustment; Thermal Cut-out Function

MULTIPOINT
7
7
Control Thermostat :
The heater is fitted with an adjustable Cotherm TSD 01105 rod type
thermostat. This does not have a calibrated scale. The minimum setting
(approximately18°C) is indicated by - and the maximum settting (approximately 70°C)
by +. It is recommended that the thermostat is set by turning to the maximum setting,
and then turning back by an angle of 45° (one eighth of a turn).
Settings above 60°C are not recommended.
Thermal Cut-out
The heater is fitted with a manually re-settable thermal cut-out which will interupt the
power to the element in the event of overheating . In the event of the thermal cut-out
operating it is re-set by pressing the re-set button (refer to figure 5) after checking the
thermostat. See section 8.
The thermal cut-out has a calibrated scale and should be set 15°C above the control
thermostat setting, but not above 85°C.
iiiiiiiiiii
4.0 TEMPERATURE SETTINGS
N
E
THERMAL
CUT-OUT
CONTROL
THERMOSTAT

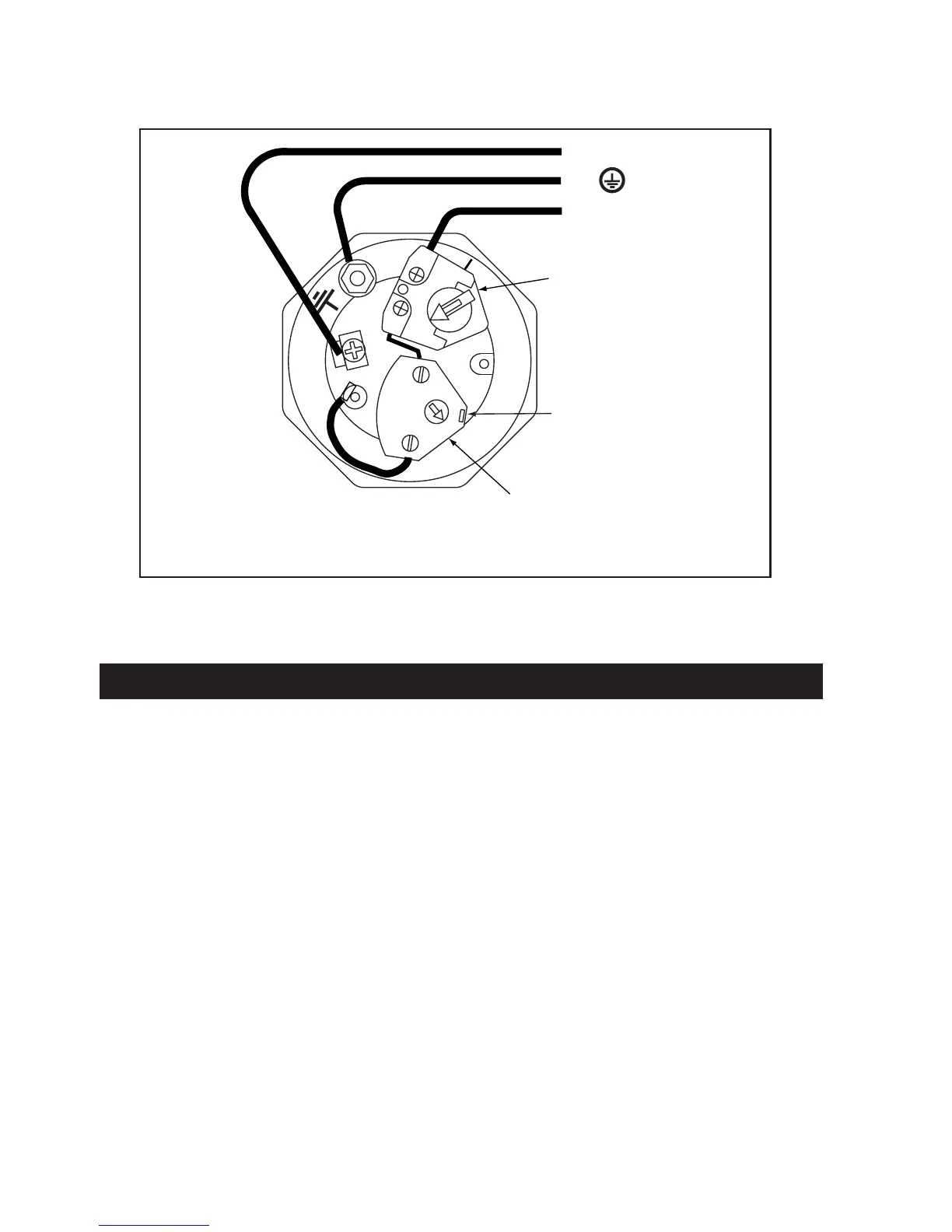

FIG 5 : ELECTRICAL CONNECTIONS
RE-SET BUTTO
N
L
N
