8
Max. 5/8 in. (1.5 cm)
Min. 16 in. (40.6 cm)
Min. 3 ½ in. (8.9 cm)
Min. 1 ½ in. (3.8 cm)
CAUTION: Avoid potential
personal injury or property damage!
● Drywall covering the wall
must not exceed 5/8 in. (1.5 cm)
● Minimum wood stud size:
nominal 2 x 4 in. (5.1 x 10.2 cm)
actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)
● Minimum horizontal space
between fasteners:16 in. (40.6 cm)
● Stud centers must be verified
1
LOCATE
2
VERIFY
3
MARK

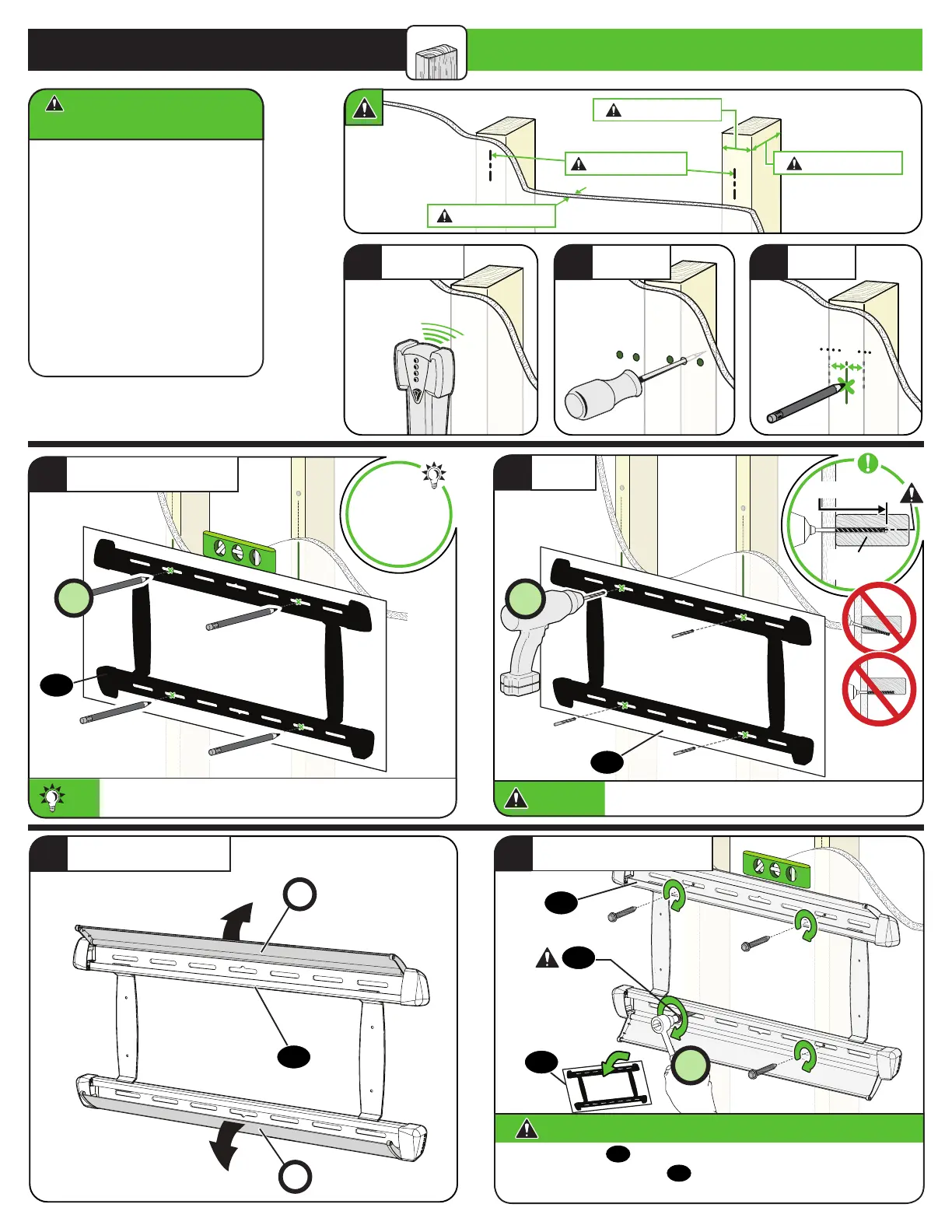

STEP 2A Attach Wall Plate
Wood Stud Installation
4X
07
4X
3
½ in. (9 cm)
7/32 in.
(5.5 mm)
5
DRILL
CAUTION:
Be sure you drill into the CENTER of the stud.
07
TIP:
To calculate your precise wall plate location, check out our
HeightFinder at sanus.com [www.sanus.com/1172].
sanus.com
/1172
HeightFinder™
Visit
4
POSITION TEMPLATE
4X
09
7
SECURELY TIGHTEN
6
OPEN COVERS
08
07
08
P
P
Go to STEP 3 on PAGE 10.
All four lag bolts
09
MUST BE firmly tightened to prevent unwanted
movement of the wall plate
08
.
Ensure the wall plate is securely
fastened to the wall before continuing on to the next step.
CAUTION:
Avoid potential personal injury or property damage!
To Next Page
