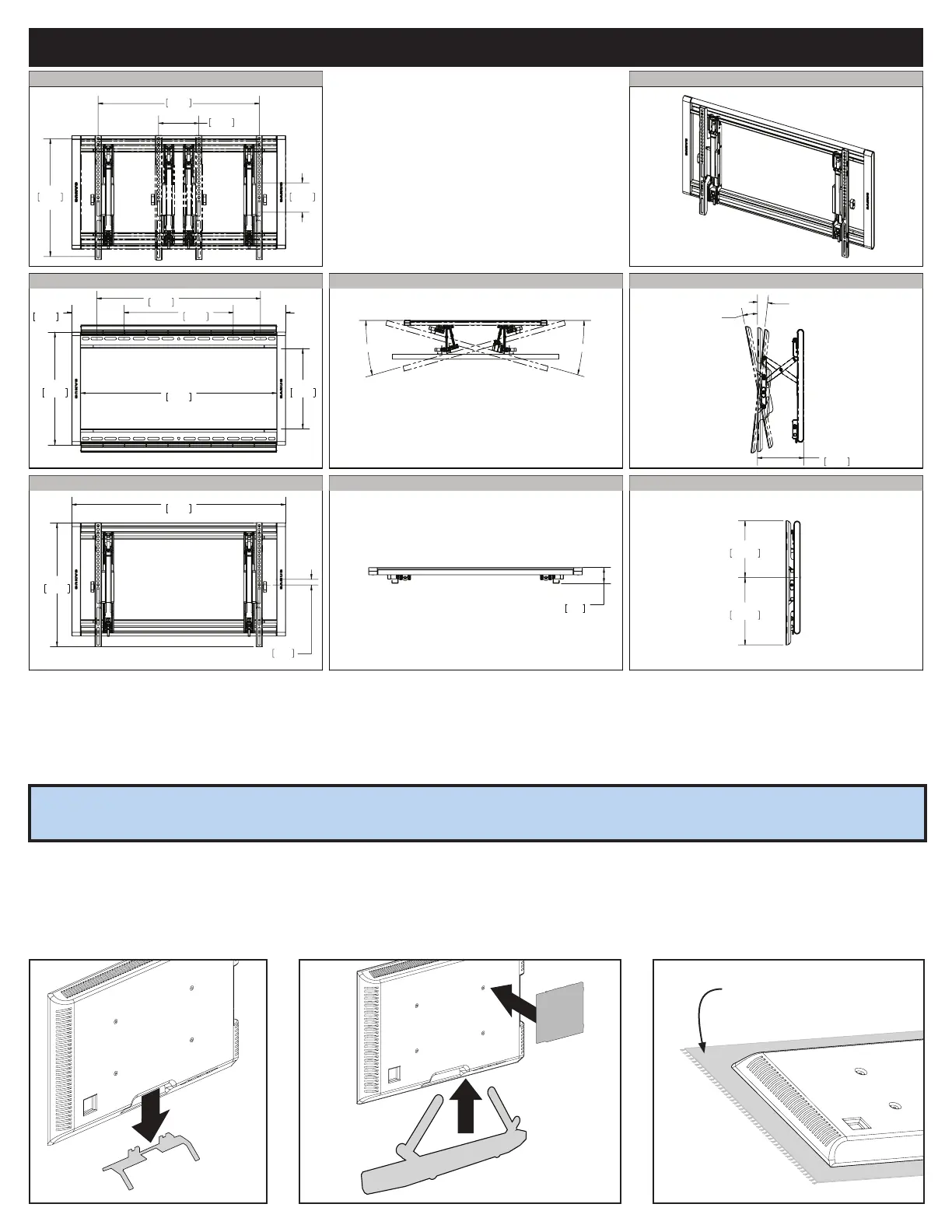

Sanus BLT3 - Product Dimensions; TV Interface Dimensions; Wall Plate Dimensions; Full Mount Dimensions

3
BEFORE YOU BEGIN
Remove the stand from
your TV — if attached.
Install any accessories you may
have purchased, if they require TV removal
prior to assembly. The TV is removable for
future accessory purchases.
Soft clean surface
Protect the face of your TV
when laying it down for installation.
Dimensions in. [mm]
5.9in
150mm
MIN
23.6in
600mm
MAX
15.7in
400mm
MAX
3.9in
100mm
MIN
28.7in
730mm
31.3in
796mm
15.1in
383mm
10.8in
273mm
24.0in
610mm
16.0in
406mm
15deg
15deg
6.8in
172mm
7deg
12deg
7.6in
192.4mm
9.0in
228.6mm
C
L
SYM
2.1in.
53mm
31.3in
796mm
16.6in
421mm
0.7in
19mm
OFFSET
SIMULATED 42"
FLAT SCREEN TV WITH 400 MM VESA
TV INTERFACE
WALL PLATE TOP VIEW - EXTENDED
3-D
SIDE VIEW - EXTENDED
SIDE VIEW RETRACTED TOP VIEW - RETRACTED FULLY ASSEMBLED MOUNT
