Sanus BLT3 - Wood Stud Installation

6
Max. 5/8 in. (1.5 cm)
Min. 16 in. (40.6 cm)
Min. 3 ½ in. (8.9 cm)
Min. 1 ½ in. (3.8 cm)
CAUTION: Avoid potential
personal injury or property damage!
● Drywall covering the wall
must not exceed 5/8 in. (1.5 cm)
● Minimum wood stud size:
nominal 2 x 4 in. (5.1 x 10.2 cm)
actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)
● Minimum horizontal space
between fasteners:16 in. (40.6 cm)
● Stud centers must be verified

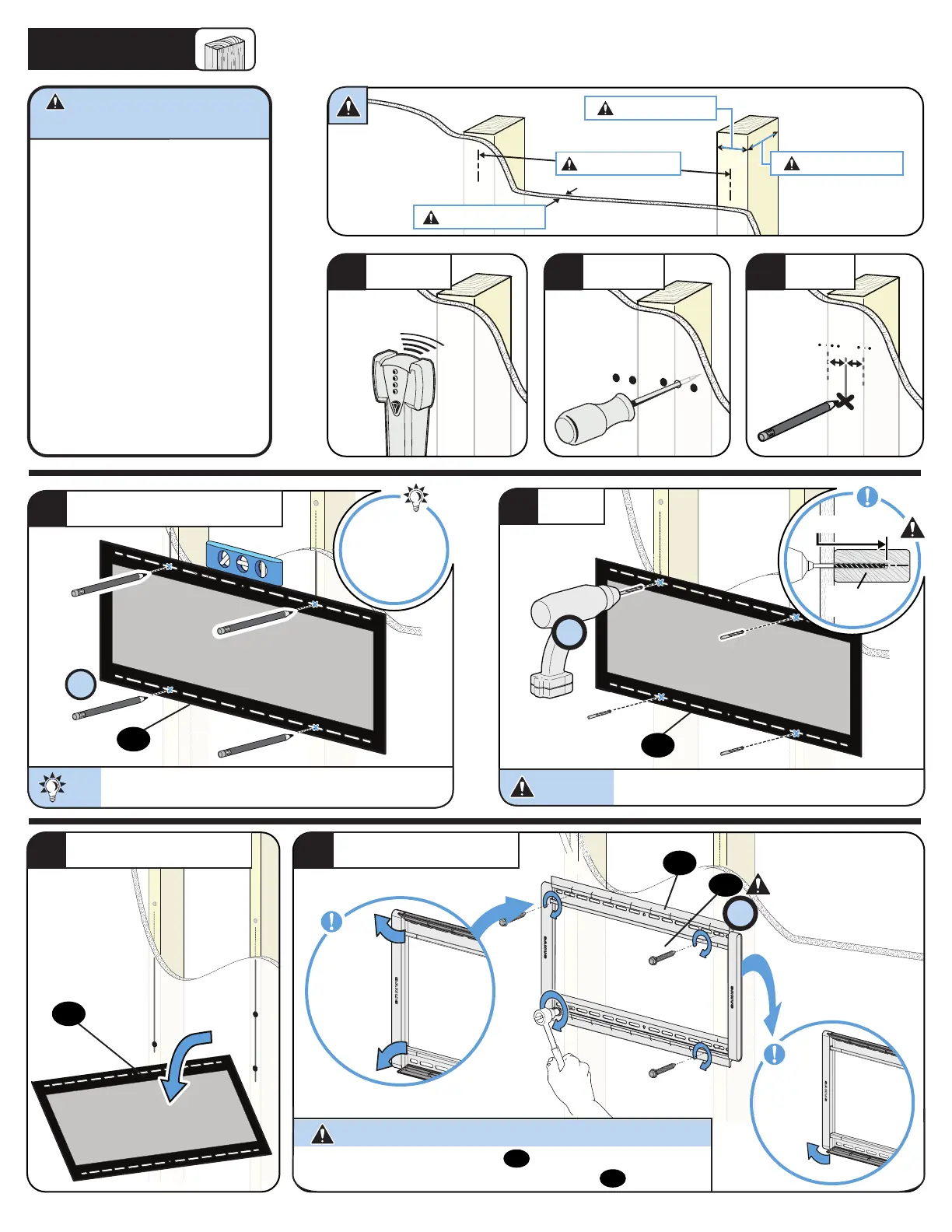

STEP 2A
Wood Stud Installation
1
LOCATE
2
VERIFY
3
MARK
4X
2 ¾ in. (6.9 cm)
7/32 in.
(5.5 mm)
4
POSITION TEMPLATE
TIP:
To calculate your precise wall plate location, check out
our HeightFinder at sanus.com [www.sanus.com/1172].
sanus.com
/1172
HeightFinder™
Visit
5
DRILL
CAUTION:
Be sure you drill into the CENTER of the stud.
4X
08
Skip to STEP 3 on PAGE 9.
6
REMOVE TEMPLATE
7
SECURELY TIGHTEN
4X
06
06
06
07
CAUTION: Avoid potential personal injury or property damage!
Open
covers
Close
bottom
cover
Do not over-tighten the lag bolts
08
. Tighten the lag bolts only
until they are pulled firmly against the wall plate
07
.
