Sanus LLF122 - Solid Concrete or Concrete Block Installation

14
Concrete Install Kit #CMK1 is not included
(see page 7) Contact Customer Service
at 1-855-734-7805 to inquire about the
Concrete Installation Kit CMK1.
CAUTION: Avoid potential personal injury or property damage!
● Mount the wall plate assembly
08
directly onto the concrete surface
● Minimum solid concrete thickness: 8 in. (203 mm)
● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
● Minimum horizontal space between fasteners: 16 in. (406 mm)
1 2

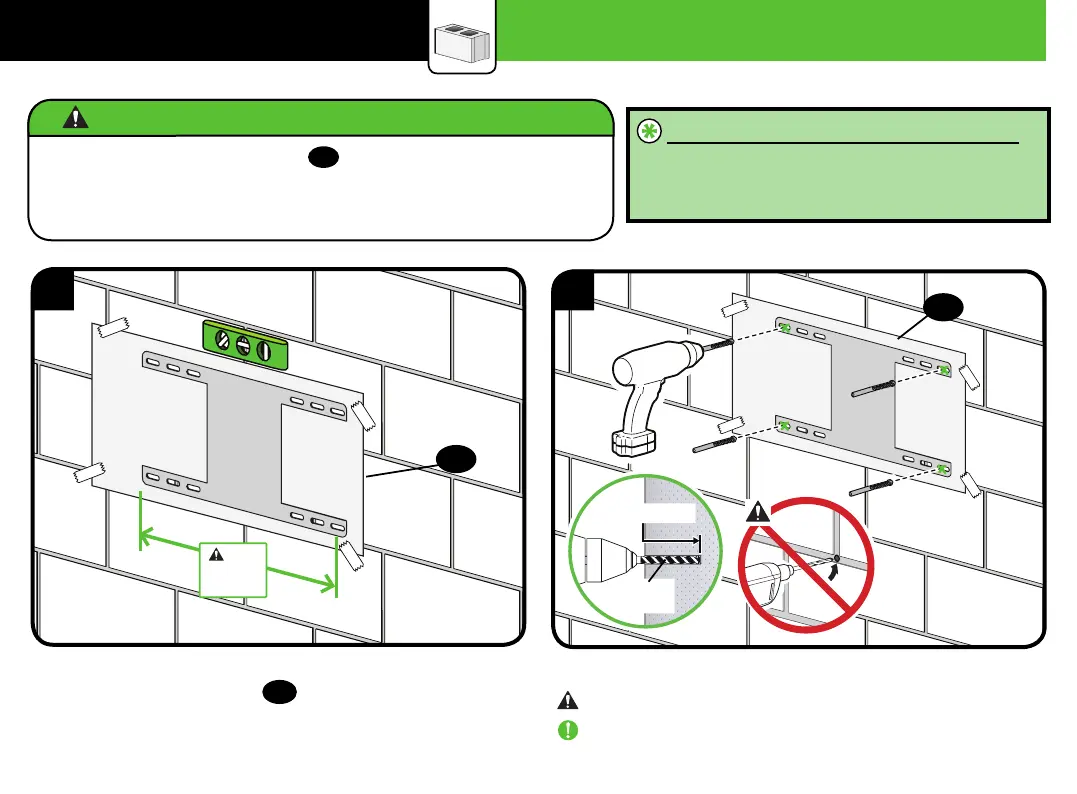

Level the wall plate template
07
and tape in place.
Drill four pilot holes.
CAUTION: Never drill into the mortar between blocks.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in.
(75 mm), using a 3/8 in. (10 mm) diameter drill bit.
MIN.
16 in.
(406 mm)
002862.eps
STEP 2B Attach Wall Plate
Solid Concrete or Concrete Block Installation
07
07
3/8 in.
(10 mm)
3 in. (75 mm)
