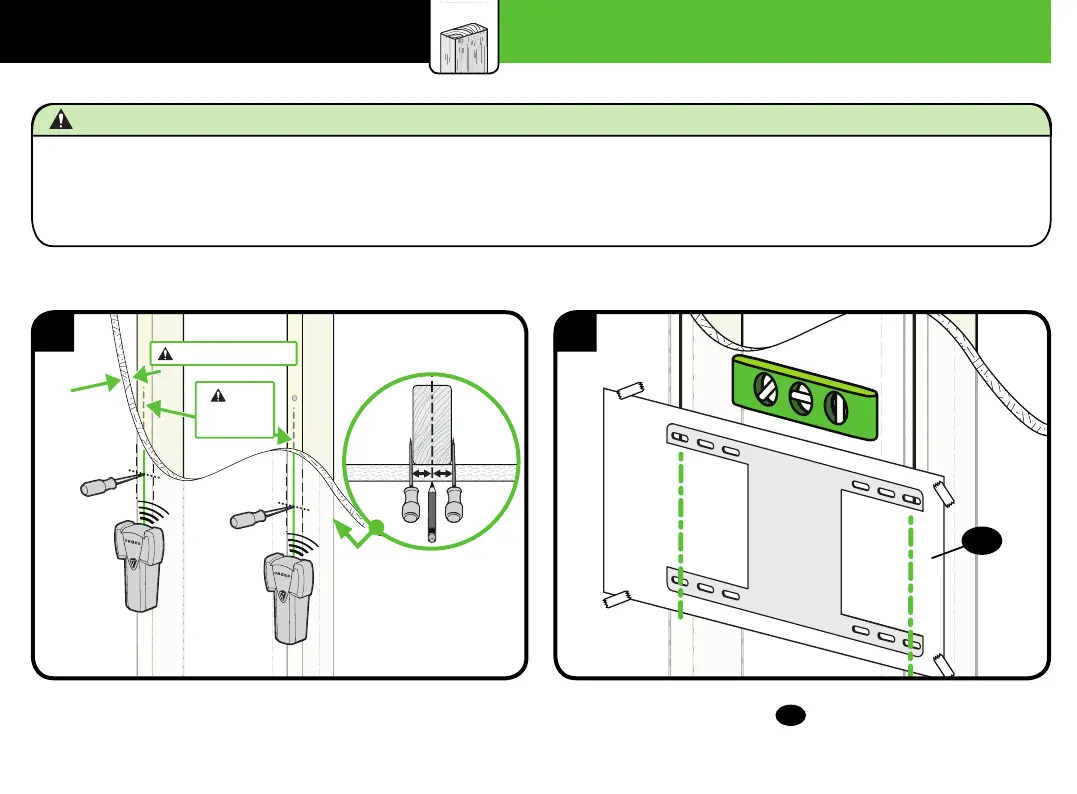

Locate studs. Verify the center of the stud(s) using an awl, a thin nail,
or an edge to edge stud finder.
1
2
MIN.
16 in.
(406 mm)
Level the wall plate template
07
and align the hole pattern over
the center of your studs, then tape in place.
STEP 2A Attach Wall Plate Wood Stud
Installation
MAX 5/8 in. (16 mm)
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1 ½ x 3 ½ in. (38 x 89 mm)
● Minimum horizontal space between fasteners: 16 in. (406 mm)
● Stud centers must be verified
07
