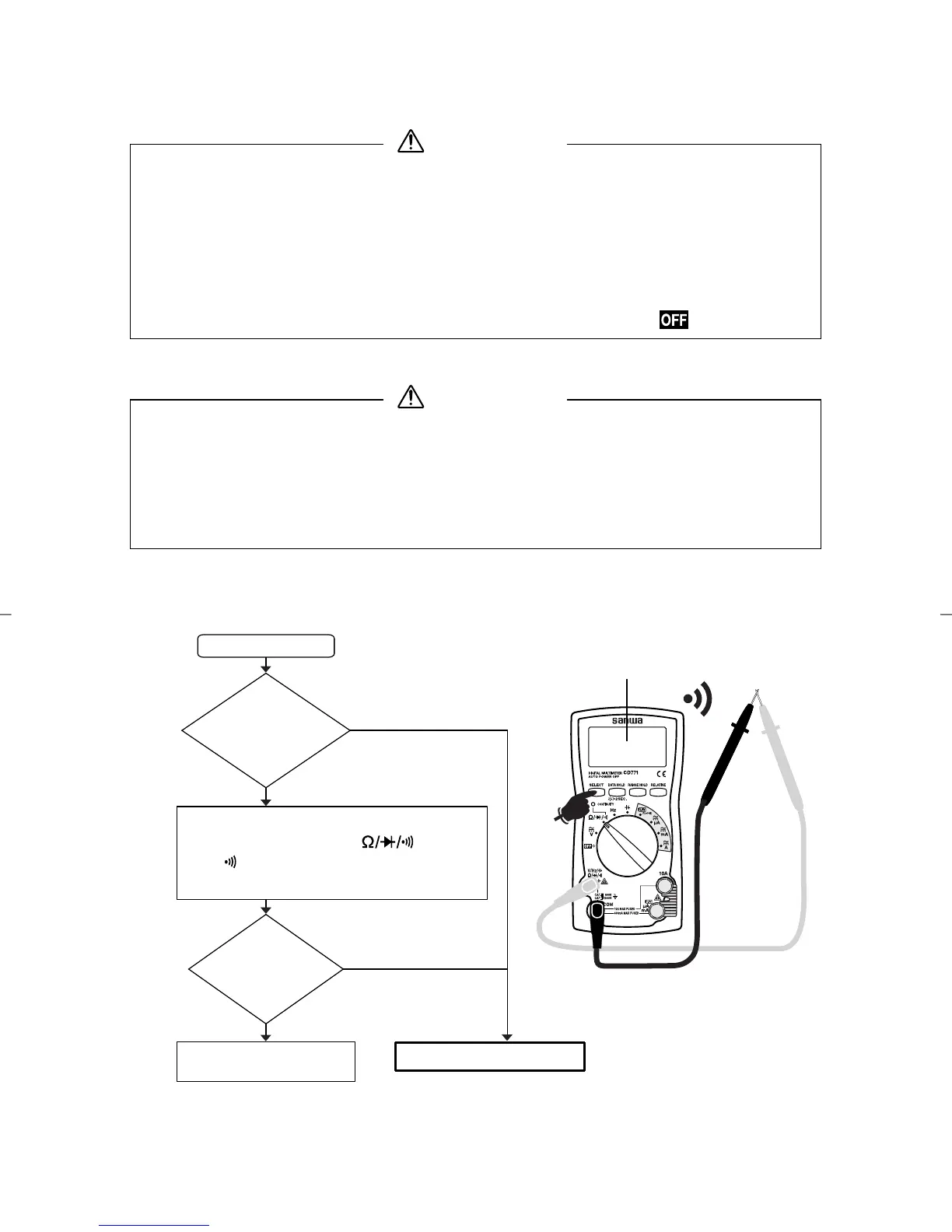

Always conduct the start-up inspection to ensure safety. (Inspection
by the continuity check.)
* If nothing appears on the display, the batteries might have been
discharged completely.
Inspection start
Meter or
test leads
not
broken?
appears?
Buzzer
sounds?
Broken.
Not broken.
Appears.
sounds.
Does not appear.
Does not sound.
1. Insert black plug of test lead to
COM
terminal and red plug to (0000000) terminal.
2.
Set 00 with function switch and select button.
3.
Short red and black test pins.
End of inspection.
Request for repair.
*
[5] MEASURING PROCEDURE
5-1 Start-up Inspection
1. Do not apply an input signal exceeding the maximum rated
input of each function.
2. During measurement, do not change the function switch.
3. During measurement, do not touch the test pin side of the
flange of the test lead.
4.
When measurement has been finished, remove the test pins from the
object measured and return the function switch to the 000 position.
WARNING
1.
Be sure that the battery low warning mark is not flickering or lit, when
the meter is turned on. If it is flickering or lit, replace the batteries with
new ones.
2.
Do not use the meter if the meter or test lead is damaged or broken.
3. Make sure the test leads are not cut and the fuse has not blown.
CAUTION
DRAWING No. CD771 03-1101 2040 6017
