Sanwa CD771 - Battery Load Voltage Measurement

—
13
—

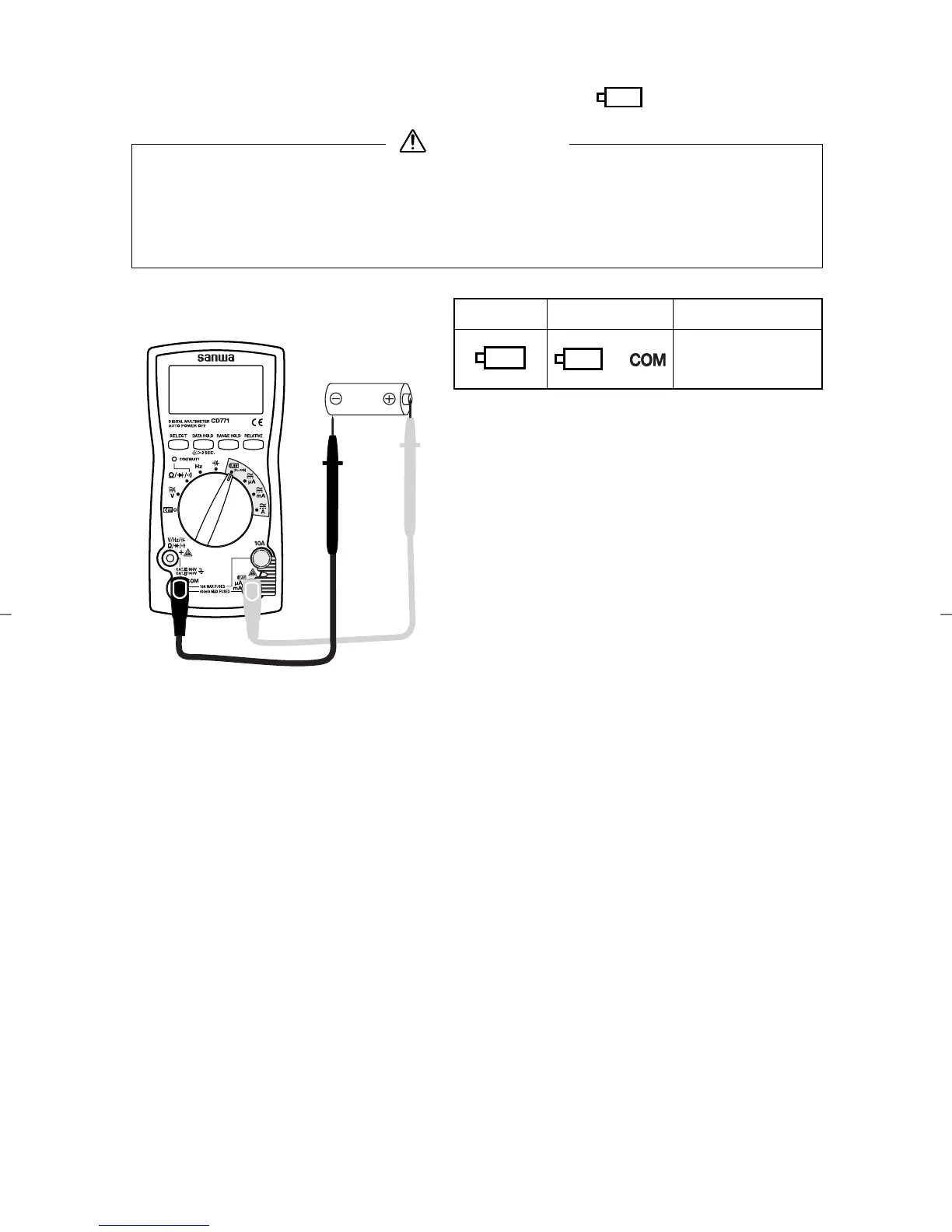

5-6 Battery Load Voltage Measurement (00000)
Remarks:
• The battery load voltage measuring
function is special for measurement
of 1.5 V battery voltage.
• The measured value is the battery
voltage when a load of 30  is
connected to the battery to measure.
Measurable batteries:
Manganese battery (R20, R14, R6)
Alkaline battery (LR20, LR14, LR6), etc.
Function Input Terminal Built-in Fuse
0.5A/1000V Fuse
Breaking capacity 30kA
1.5V
1.5V
and
1.5V
1. Never apply a voltage above the battery voltage (approx. 1.5 V)
to the input terminals.
2.
If measurement takes a long time, the battery being measured
will be discharged. Complete measurement quickly.
CAUTION
