Note:
Threshold: between 20Ω and 120Ω.
Response time: <100µs
5-5-3 Checking Continuity
1) Application
Checking the continuity of wiring and selecting wires.
2) How to use

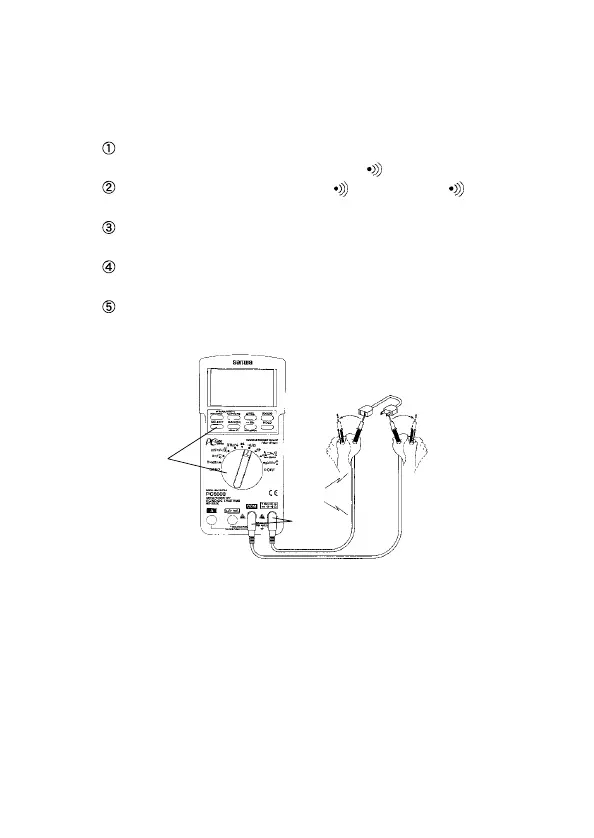

Connect the plug of black test lead to COM measuring input
terminal and plug of red test lead to measuring terminal.
Set the function switch at 'Ω/ ' and select ' ' with the
"SELECT" button.
Apply the red and black test pins to a circuit or conductor to
measure.
The continuity can be judged by whether the buzzer sounds
or not.
After measurement, release the red and black test pins from
the object measured.
—
