Identification of Controls
Identification of Controls
!
STANDBY/ON
Turns the DVD Recorder+VCR on and off.
@
Cassette Compartment (VCR deck)
Insert a video cassette here.
#
EJECT (VCR)
Ejects the tape in the VCR deck.
$
Disc Tray (DVD deck)
Insert a disc here.
%
OPEN/CLOSE (DVD)
Opens or closes the disc tray.
^
PLAY/PAUSE
Starts playback of a disc or tape. Pauses playback
or recording temporarily.
&
STOP
Stops playback.
*
REW
DVD: Skips to previous chapter.
VCR: Rewinds the tape during Stop mode. Press
during Play mode for fast reverse picture search.
(
FF
DVD: Skips to next chapter.
VCR: Advances the tape during Stop mode. Press
during Play mode for fast forward picture search.
)
REC MODE
1
DISC MENU
2
Front Panel Display
Shows the current status of the DVD
Recorder+VCR.
3
SELECT DVD/VCR
Toggles control between the DVD deck and the
VCR deck.
4
PR+/–
Scans up or down through memorized channels.
Also moves up and down in DVD navigation
menus.
5
REC
Starts recording. Press repeatedly to set the
recording time. Lights red when the DVD
Recorder+VCR is recording.
6
AVF (VIDEO, L-AUDIO-R)
Connects to the audio/video output of an external
source (VCR, Camcorder, etc.).
! @ # $
%

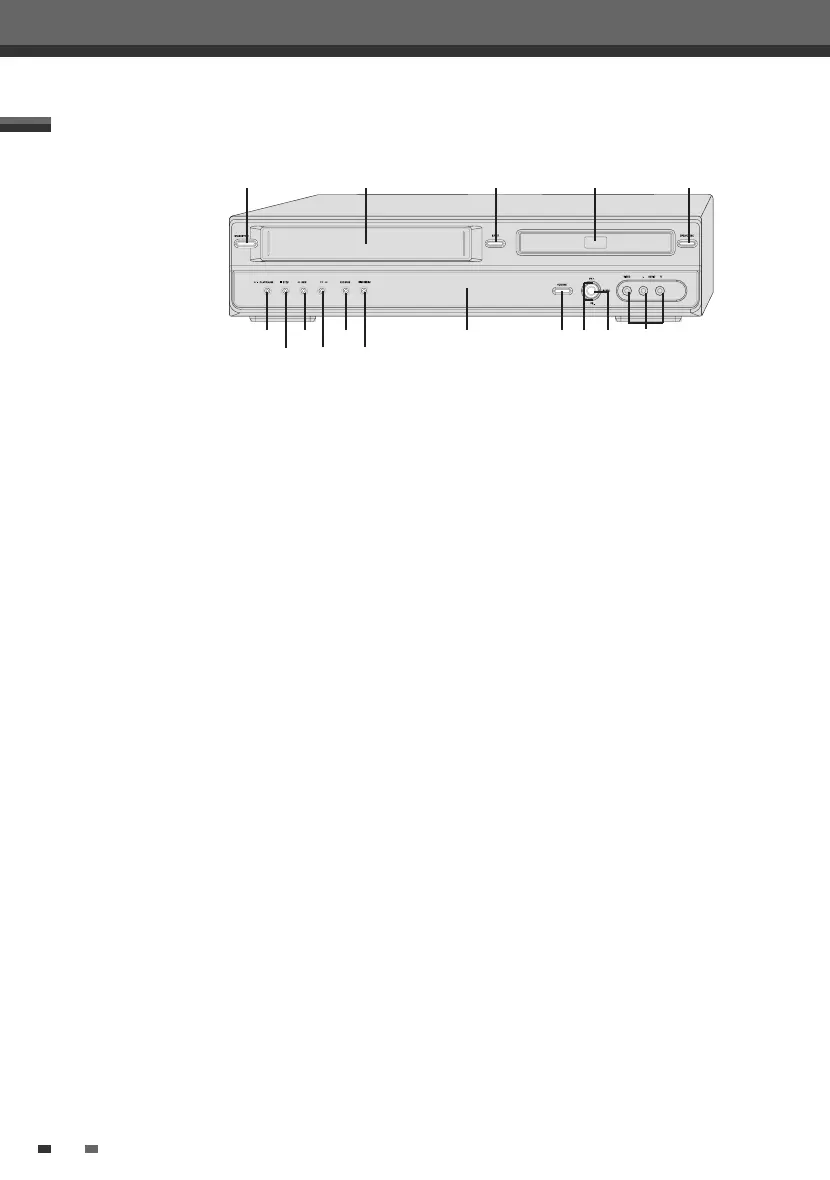

Front Panel
6
2
(
&
^ * 3 54
1
)
