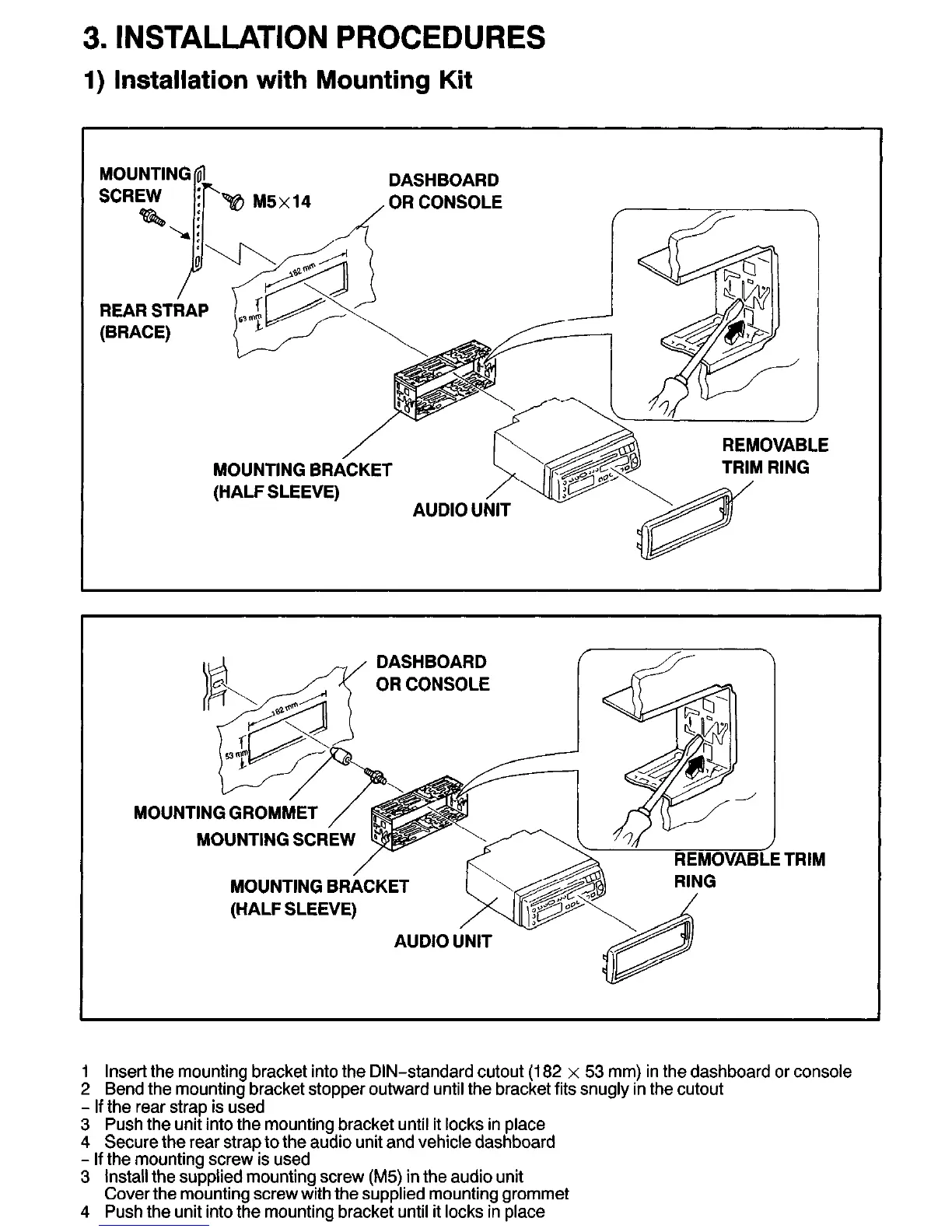

3. INSTALLATION PROCEDURES
1) Installation with Mounting Kit
DASHBOARD
TRIM RING
DASHBOARD
OR CONSOLE
MOUNTING SCREW
TRIM
1 Inset-t the mounting bracket into the DIN-standard cutout (182 x 53 mm) in the dashboard or console
2 Bend the mounting bracket stopper outward until the bracket fits snugly in the cutout
- If the rear strap is used
3 Push the unit into the mounting bracket until it locks in place
4 Secure the rear strap to the audio unit and vehicle dashboard
- If the mounting screw is used
3 Install the supplied mounting screw (M5) in the audio unit
Cover the mounting screw with the supplied mounting grommet
4 Push the unit into the mounting bracket until it locks in place
-24-
