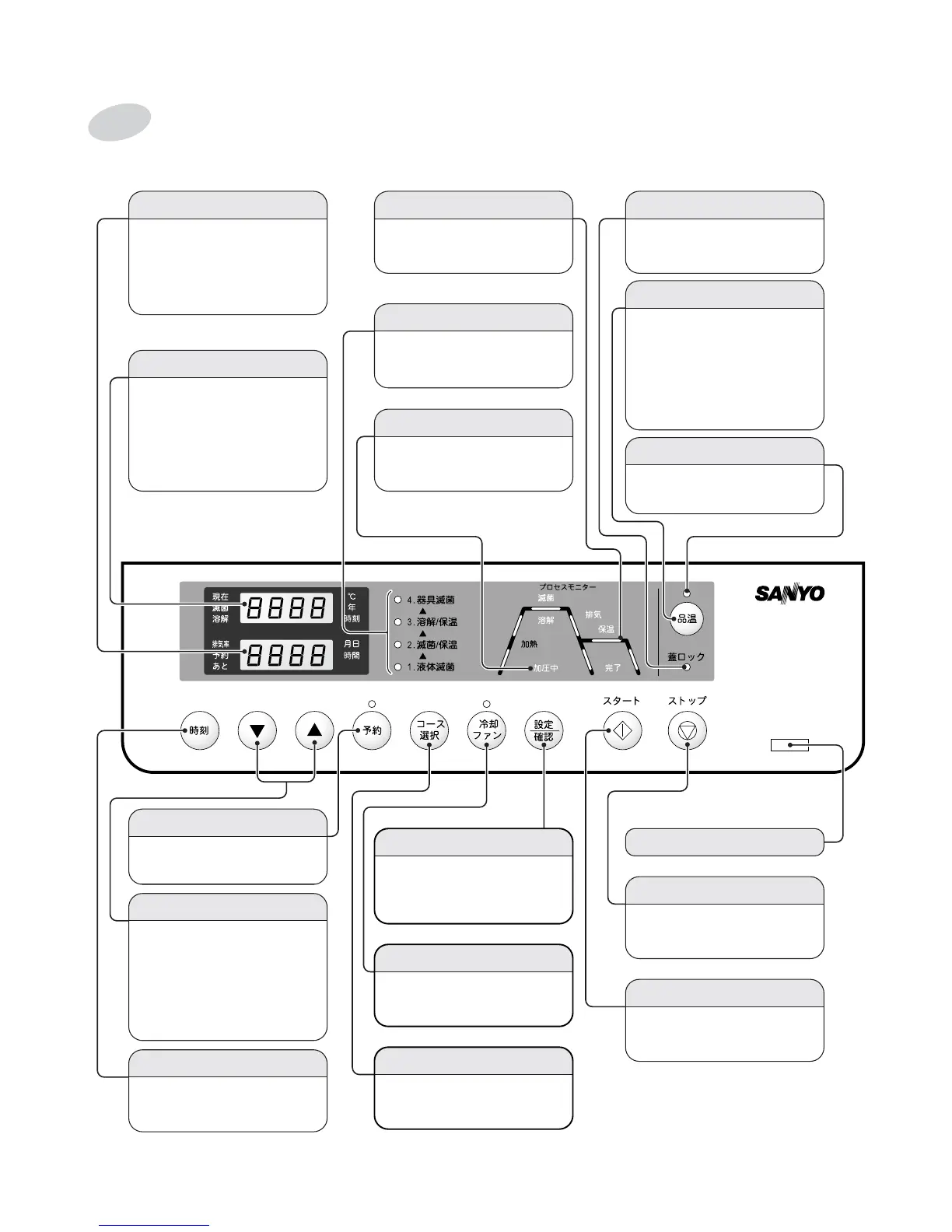

Control panel
Indicates the status of the current
process with a flickering bar.
Lights up when operation starts
with the cover locked.
Indicates the set time, remaining
time, sterilization cycle, exhaust
rate, cautionary messages, error
messages, date and voice guide
setting.
Indicates the selected sterilization
cycle with a lit lamp.
Sets the time until the start of
operation.
Stops operation and cancels
timer settings and heat-retention.
Starts operation and timer-set
operation.
When the optional object
temperature sensor is installed
and this object temperature
button is pressed, the lamp lights
up and the sterilization timer is
controlled by the temperature of
objects to be sterilized.
Indicates the current temperature,
sterilization set temperature,
melting set temperature, exhaust
starting temperature, date,
hour/minutes and voice guide
setting.
Lights up when the chamber is
internally under pressure.
Current time is indicated on
digital display I.
Used to engage the cooling mode
during exhausting.
Selects any of 3 programs and 4
cycles (total 12 selections).
Indicates change of settings and
settings of current operation on
the digital displays I and II.
Used for setting and changing the
sterilization temperature,
sterilization time, melting
temperature, melting time, heat-
retention temperature, exhaust
temperature, start timer and
exhaust rate.
Digital display II Process monitor lamp Cover lock lamp
Selection indicator lamp
Timer button
Stop button
Start button
Object temperature button
Digital display I
Under-pressure lamp
Time button
Cooling fan button
Cycle/program selector button
Setting confirmation button
Up/Down buttons
Model No. indication
The lamp lights up when this
button is pressed.
Object temperature lamp
