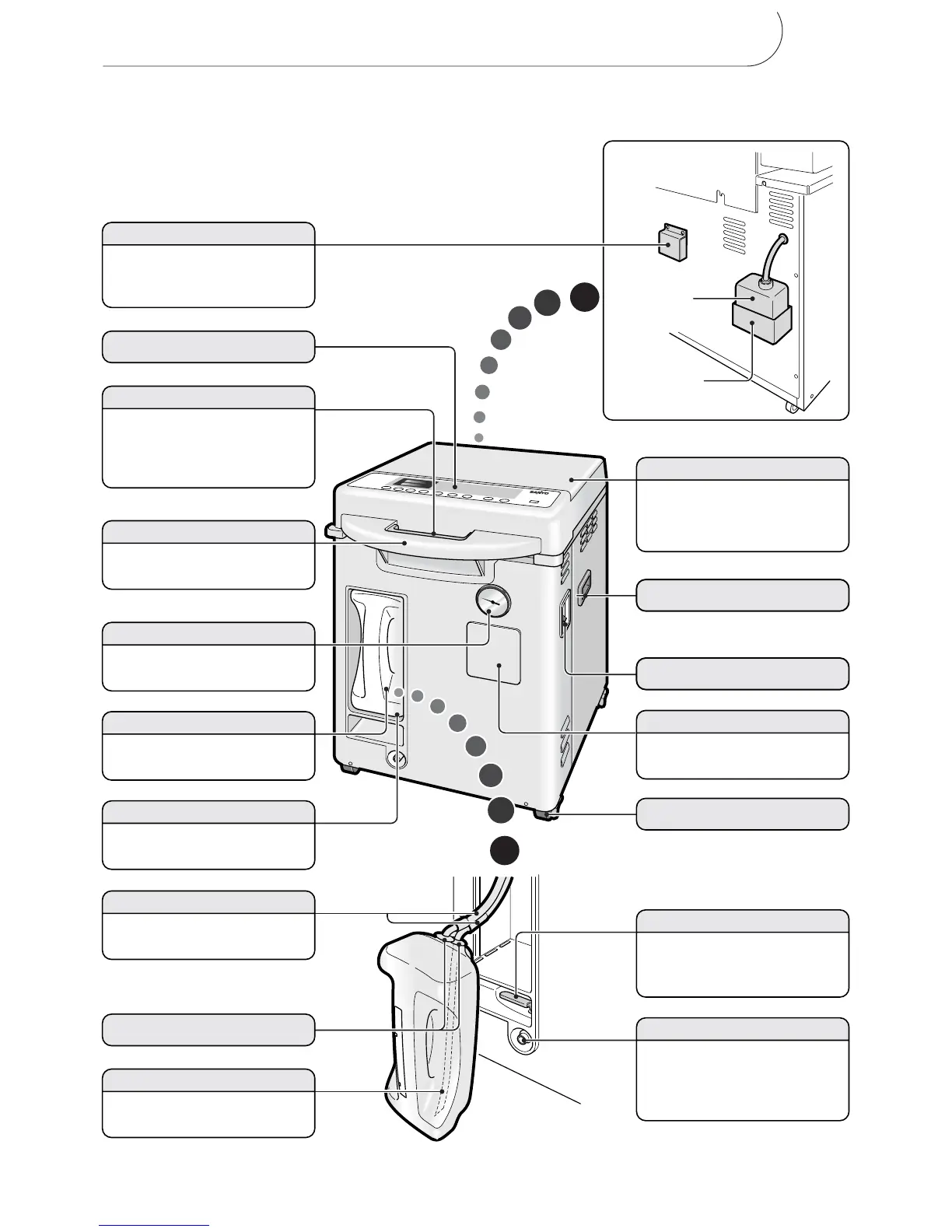

Exhaust tank
on the rear side
Tank mounting
bracket
Rear side
Handle
Use for opening/closing the
cover.
Steam is discharged through
this port if pressure in the
chamber rises abnormally.
Movable handle
Used for unlocking the cover.
The cover can be unlocked by
pressing this handle down and
pulling toward you.
Pressure gauge
Indicates the pressure inside
the chamber.
Exhaust tank
Condenses steam emitted
from the chamber.
Tank case
Encases the exhaust tank.
Control panel
Exhaust hose
Sends steam and air in the
chamber to the exhaust tank.
Grip
Caster
Exhaust valve
Manually opening/closing valve
used for draining heating water
from the chamber.
Drain outlet
Heating water is drained from the
chamber through this outlet.
Connect the included drain hose
to drain heating water.
Cover
Cover to shut the chamber tight.
It is lined with silicon rubber
packing.
Power switch
Cover
Remove this cover to connect the
optional printer to the product.
Hose in tank
Converts steam discharged
from the chamber into water.
Packings
Safety valve pressure relief port
