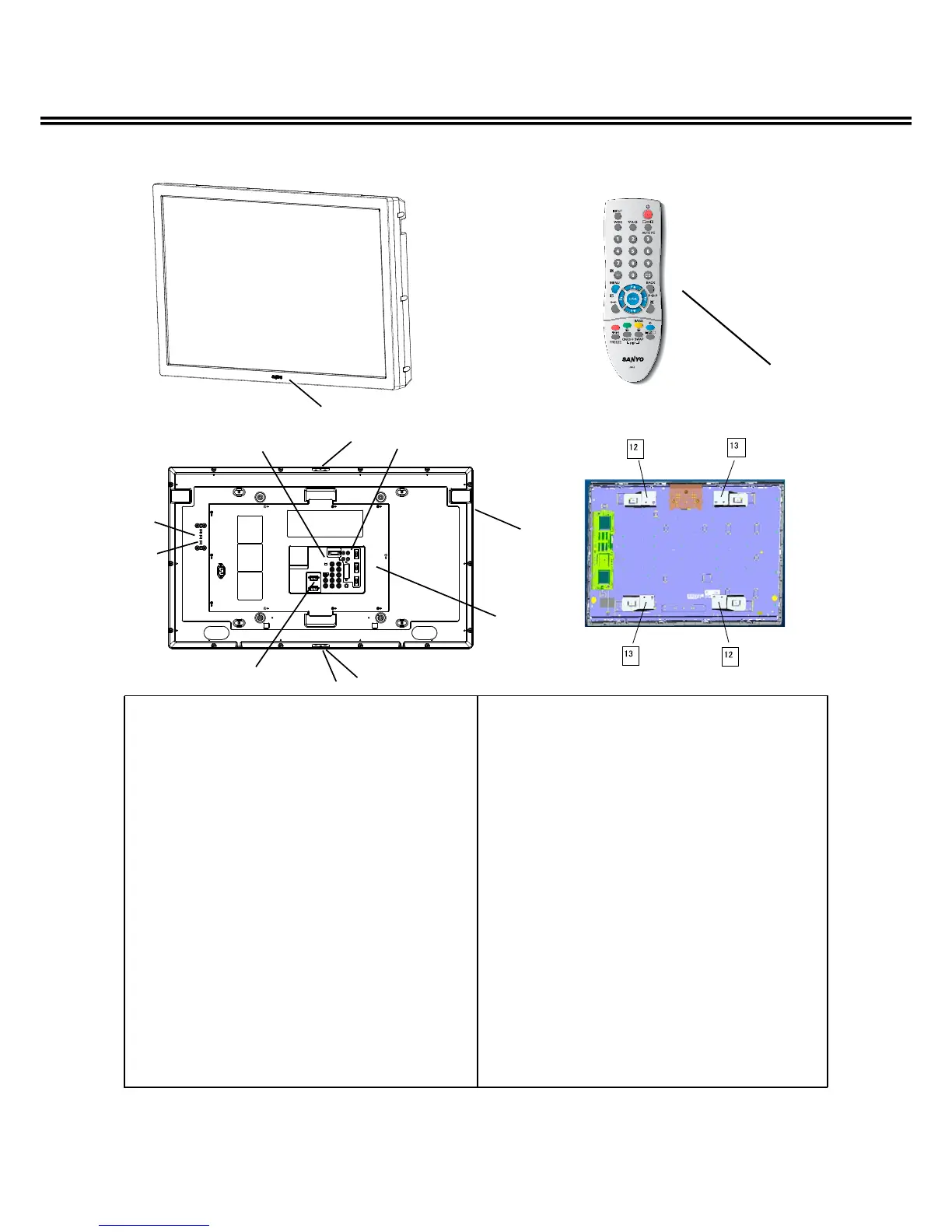

Cabinet Parts List
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
PID-42AE1
CABINET PARTS
1 6103496481 BUTTON PLATE ASSY-N8FA
2 6103494586 CONTROL BUTTONS-N8FA
3 6103483054 CABINET FRONT-N8FA
4 6103483078 CABINET BACK-N8FA
5 6103483139 DEC IND RC-N8FA
6 6103483160 DEC CONTROL SHEET-N8FA
7 6103487939 DEC CONTROL SHEET A-N8FA
8 6103489759 DEC AV TOP-N8FA
9 6103489742 DEC AV BTM-N8FA
10 6103483269 LID BACK-N8FA
11 6550035745 DEC SP TERMINAL-N8FA
6550034793 SPACER SHEET-N8FA X2(CABI
FRONT, SIDE)
6550034786 SPACER SHEET A-N8FA X4(CABI
FRONT, TOP/BOTTOM)
9103151350 GASKET C-N2HE X4
9103276084 GASKET -J3TW X3
6103483238 HOLDER MAIN PCB-N8FA (METAL
PLATE)
6103483245 HOLDER POWER PCB-N8FA
(METAL PLATE)
12 6103483306 MOUNTING VESA-N8FA X2
13 6103483290 VESA BRACKET-N8FA X2
6550022554 ADHESIVE CLOTH TAPE
6550024848 FIXER CABLE TIES,L100
6550035721 SPACER SHEET-N8FA
ACCESSOLIES
14 6520024854
REMOCON,JXPLG
6103499581
CD-ROM,OWNERS MANUAL-N8FA-A
6103489049 INSTALLATION GUIDE-N8FA
SCREWS
4120792203
SPECIAL SCREW -N7SRL X2
(PC TERMINAL)
4
10
14
3
6
5
11
7
8 9
1
2
4
10
14
3
6
5
11
7
8 9
1
2
4
10
14
3
6
5
11
7
8 9
1
2
