Sanyo PID-42AE1 Service Manual

29
PID-42AS1
CHASSIS PARTS
! 6550034861 ASSY,PWB,MAIN COMP N8FA
1
! 6550034854 ASSY,PWB,MAIN N8FA
2
! 6550030511 ASSY,PWB,KEY
3
! 6550030504 ASSY,PWB,LED
4
! 6550035752 ASSY,PWB,POWER
9450618087 TERMINAL, BOARD
X2
POWER CORD
! 6520031548 CORD,POWER-150MM
UK
! 9450541149 CORD,POWER-3.138MK
EUROPE
! 9450541156 CORD,POWER-3.0MK
USA
! 6520030183 CORD,POWER-1950MM
OTHER COMPONENT(ELECT)
LCD PANEL 6451019530 ASSY,LCD,FHD
LVDS CABLE 6520031500 CORD 51P,51P-51P(LVDS)
CN3-KQ 9103306347 STANDARD WIRE ASSY-JPN
CN2-KR 6103495224 STANDARD WIRE
K39L-K19L 6103495231 STANDARD WIRE
KJ-39J 6103395722 STANDARD WIRE ASSY-JPN
CN200-CN4 6520027619 NON STANDARD WIRE ASSY
KSPR-SP 6520025431 NON STANDARD WIRE ASSY-JPN
KSPL-SP 6520025424 NON STANDARD WIRE ASSY-JPN

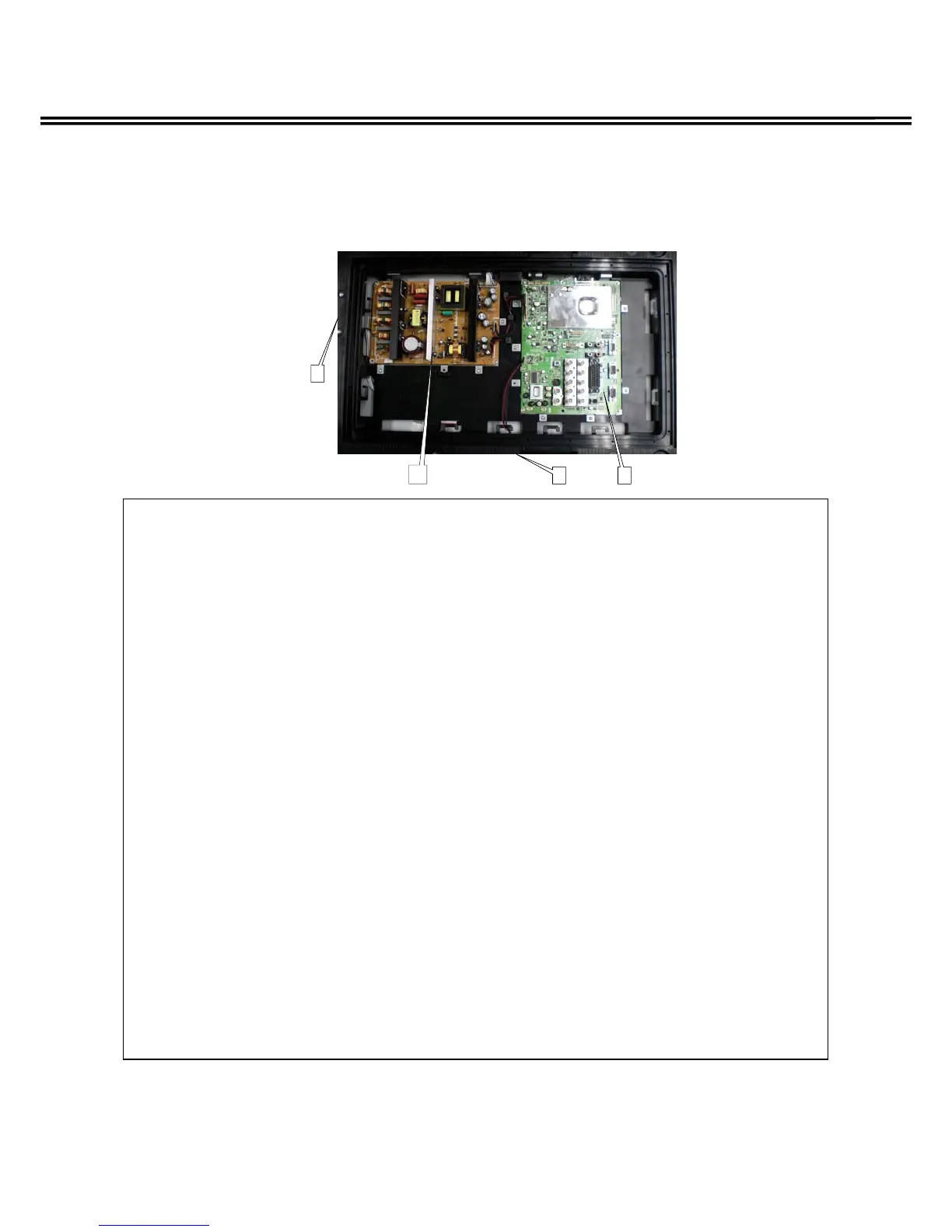

Chassis Electrical Parts List
1
4
3
2
