✔Note:
 •Thebrightnessintheroomhasagreatinfluenceonpicturequality.Itisrecommendedtolimit
ambientlightinginordertoobtainthebestimage.
 •Allmeasurementsareapproximateandmayvaryfromtheactualsizes.

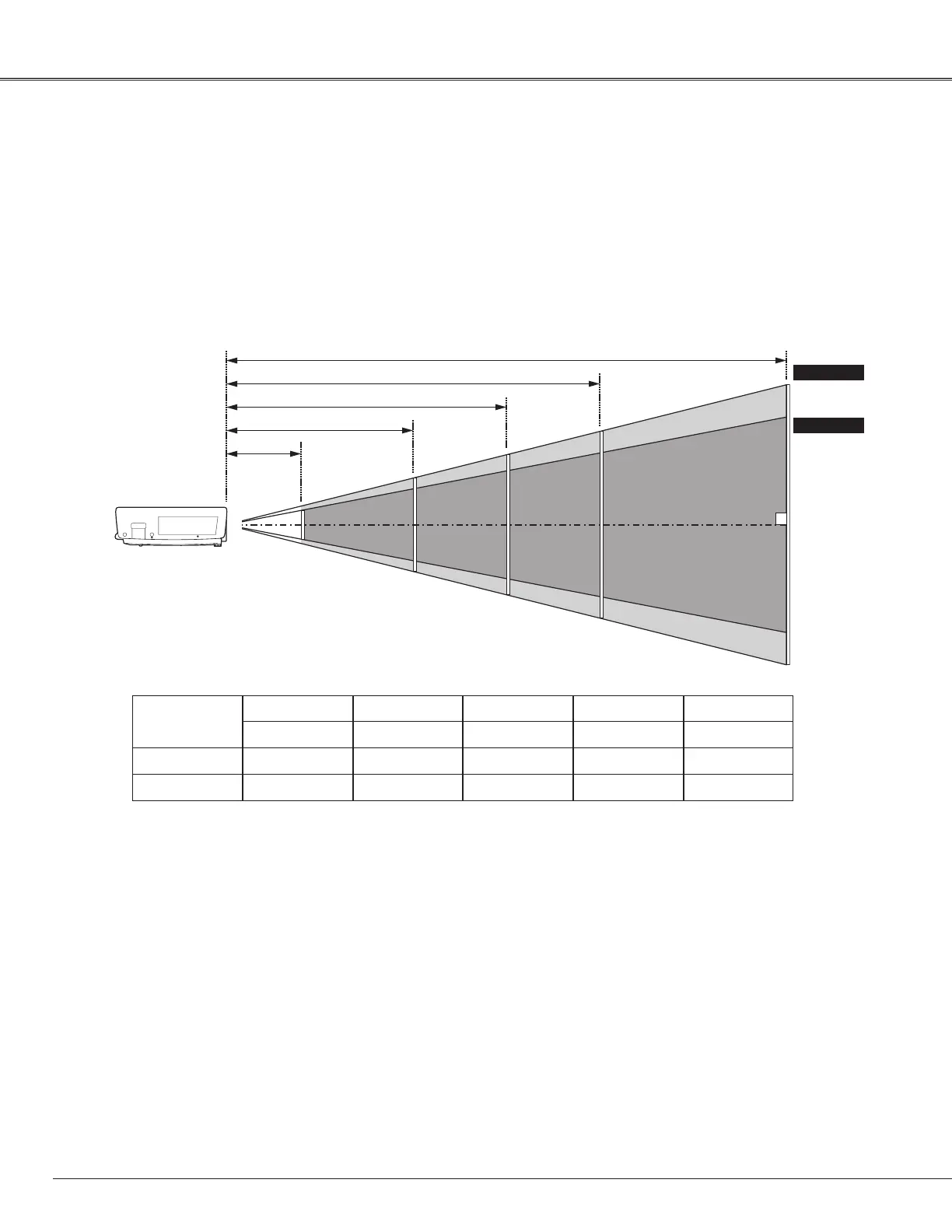

For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the
screen.
10.30m
6.84m
5.11m
3.38m
1.26m
10 0”
33.8' (10.30m)
22.4' (6.84m)
16.8' (5.11m)
14.4' (4.39m)
4.1' (1.26m)
150”
200”
300”
230”
155”
11 6”
78”
30”
Max. Zoom
Min. Zoom
Screen Size
(W x H) mm
4:3 aspect ratio
Zoom (min.)
30”
Zoom (max.)
610 x 457
4.1’ (1.26 m)
–––––
100”
2032 x 1524
14.4’ (4.39 m)
11.1’ (3.38 m)
150”
3048 x 2286
21.8’ (6.63 m)
16.8’ (5.11 m)
200”
4064 x 3048
29.1’ (8.86 m)
22.4’ (6.84 m)
300”
6096 x 4572
–––––
33.8’ (10.30 m)
(Inch Diagonal)
(Center)
Positioning the Projector
Installation
(The figure below is the example of Standard Lens.)
