Part Names and Functions

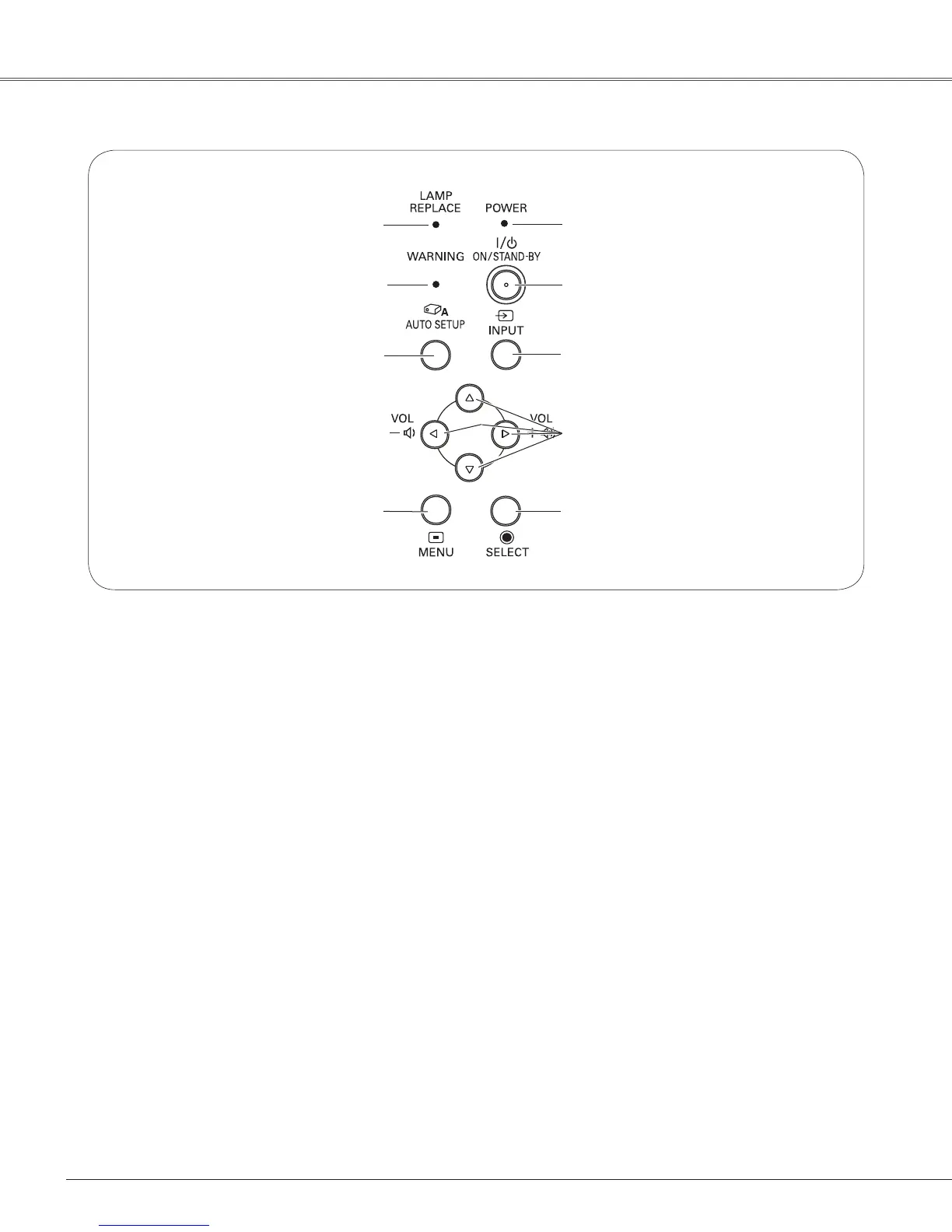

Top Control
⑨ LAMP REPLACE indicator
Lights yellow when the projection lamp reaches its
end of life (pp.64, 72).
⑧ WARNING indicator
– Lights red when the projector detects an abnormal
condition.
– Blinks red when the internal temperature of the
projector exceeds the operating range (pp.61, 72).
④ ON/STAND-BY button
Turn the projector on or off (pp.18-20).
⑤ POWER indicator
– Lights red when the projector is in stand-by mode.
– Lights green during operations.
– Blinks green in the Power management mode
(p.53).
③ INPUT button
Select an input source (pp. 27-28, 37-38).
⑥ MENU button
Open or close the On-Screen Menu (p.21).
② POINT (VOLUME +/–) buttons
– Select an item or adjust the value in the On-Screen
Menu (p.21).
– Pan the image in the Digital zoom +/- mode (p.36).
– Adjust the volume level (Point buttons) (p.24).
⑦ AUTO SETUP button
Execute the setting of Auto setup (includes Input
search, Auto PC adj. and Auto Keystone functions)
in the setting menu (pp.23, 45).
① SELECT button
– Execute the selected item (p.21).
– Expand or compress the image in the Digital zoom
mode (p.36).
