Installation
Connecting to Video Equipment
Cables used for connection
• Video and Audio cable (RCA x 3)
• S-Video cable
• Audio cable
(Cables are not supplied with the projector. )
Unplug the power cords of
both the projector and external
equipment from the AC outlet
before connecting cables.
Note:
When the AUDIO OUT is plugged-in, the projector's built-
in speaker is not available.

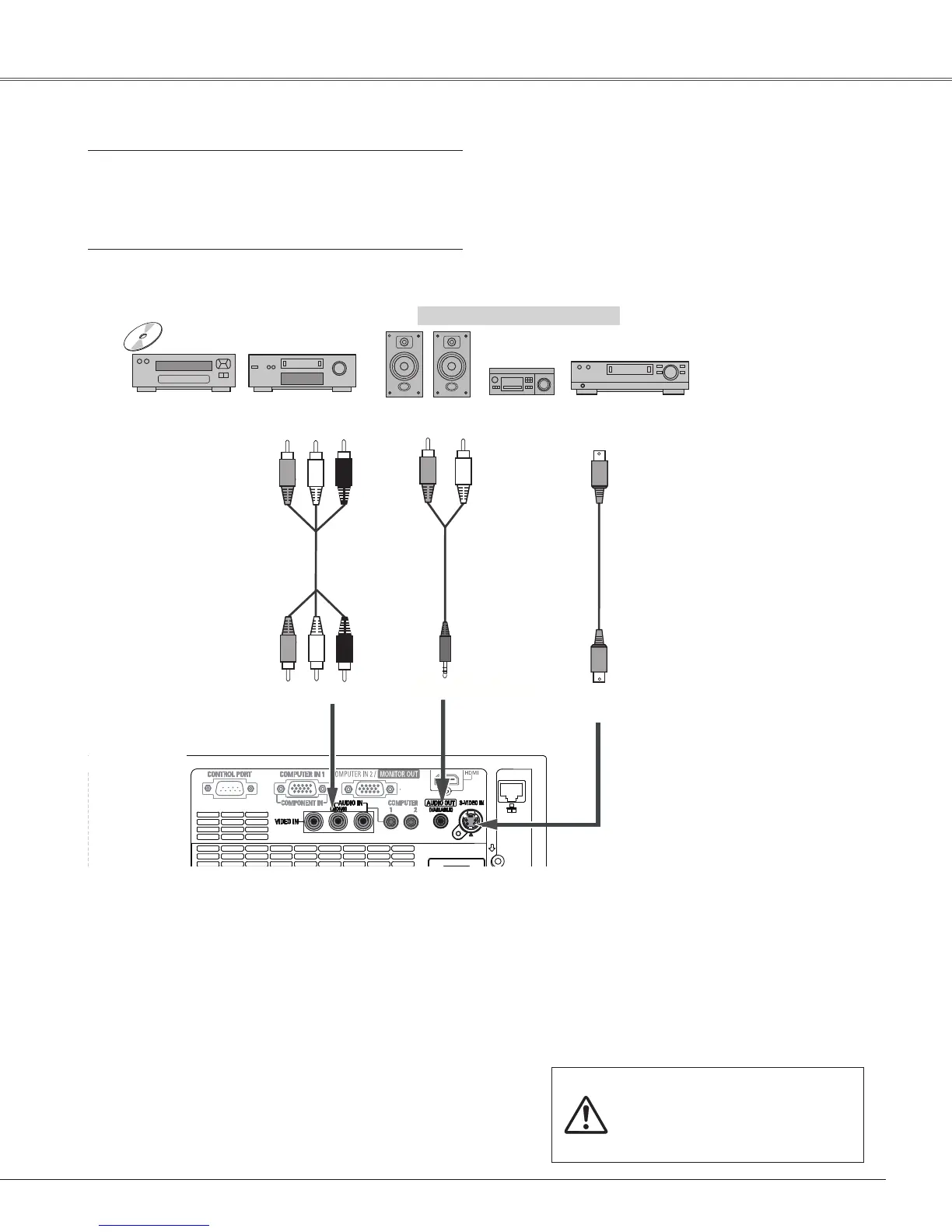

External Audio Equipment
Audio cable
(stereo)
VIDEO
S-VIDEO
S-Video cable
Video and audio cable
Video and Audio Output
S-Video Output
AUDIO IN
Audio Input
AUDIO OUT (stereo)
(R)(L)
(Video)
