-12-

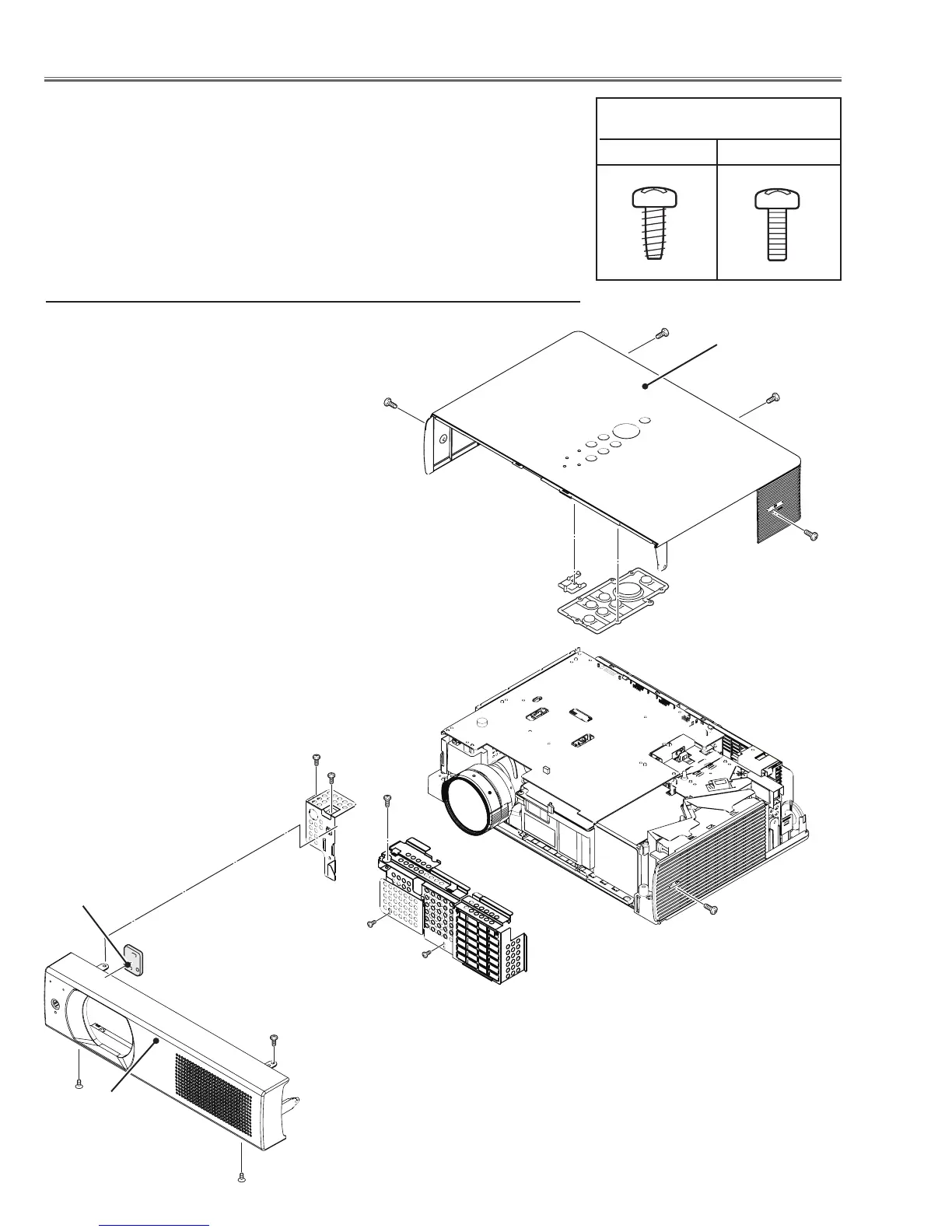

z Cabinet Top, Front, R/C Board removal
Mechanical Disassembly
Mechanical disassembly should be made following procedures in numerical or-
der.
Following steps show the basic procedures, therefore unnecessary step may
be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original
otherwise it may cause loss of performance and product safety.
Screws Expression
(Type Diameter x Length) mm
T type M Type
(T3x10)(Black)x5
Cabinet front
R/C Board
Fig.1
(M2.5x6)
Cabinet top
(M2.5x6)x3
(T2x6)X2
1. Remove the cabinet top.
2. Remove the Cabinet front.
3. Remove the R/C Board.
Control Buttons
(T3x8)x2
To Next Page
