KB3-WXU3000

-73-

Electrical Parts List

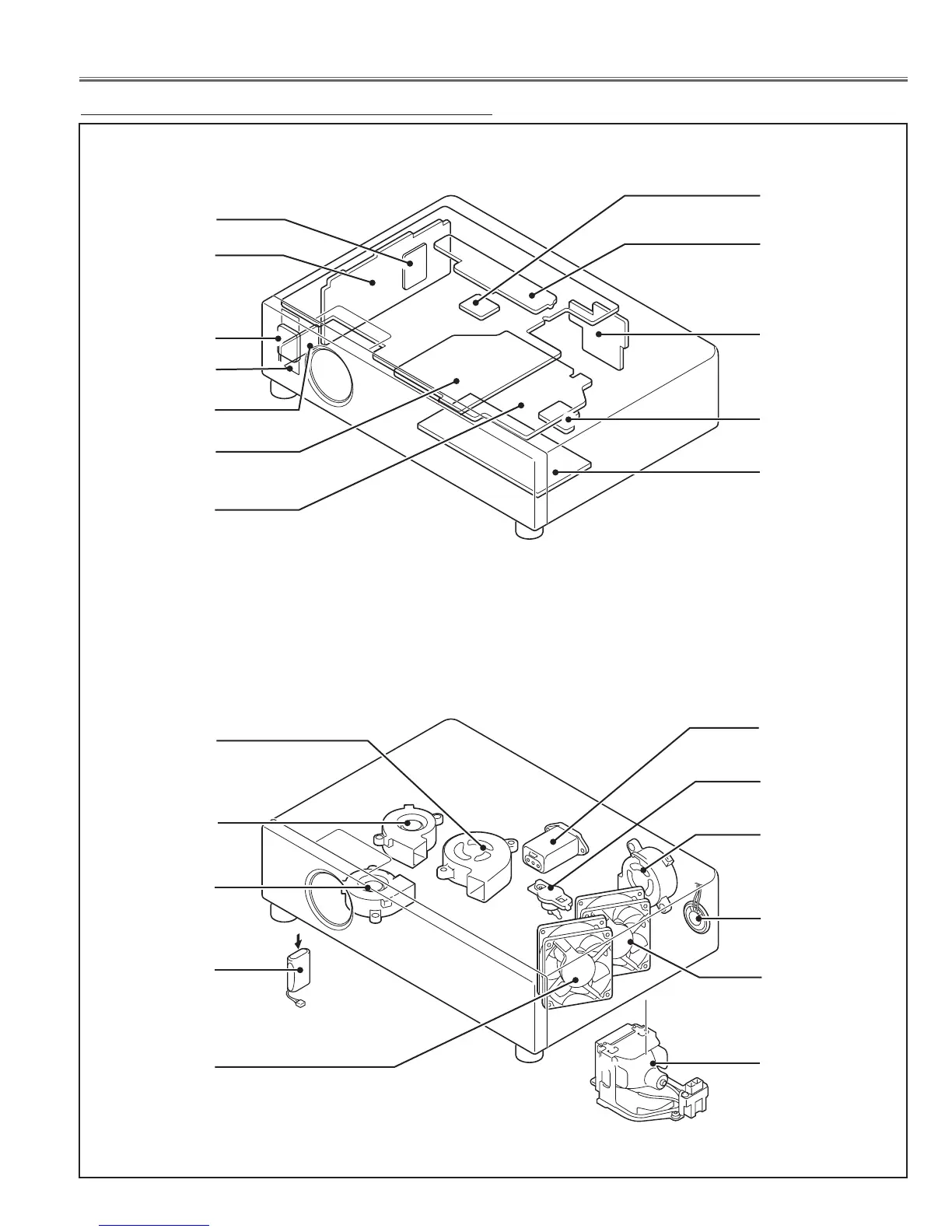

Electrical Parts Location

● Assemblied Boards

FN904

Cooling Fan

A690

Lamp Cover SW

Board

A2000

AV Board

A2900

R/C Board

FN901

Cooling Fan

LP900

Lamp Ass’y

LF901

Noise Filter

FN905

Cooling Fan

● Out Of Circuit Board

A2400

Network Board

SP901

Speaker

FN907

Cooling Fan

A4800

Temp Board

A630

Line Filter Board

A901

Ballast Board

A600

Power Board

FN903

Cooling Fan

B901

Battery

FN902

Cooling Fan

SW902

Thermal Switch

A1000

Main Board

A2200

Antenna Board

A2100

Buzzer Board

A2300

Module Board
