Sanyo PLC-XT35L

-135-
Mechanical Parts List
KP3-XT3500, KP3-XT35L00

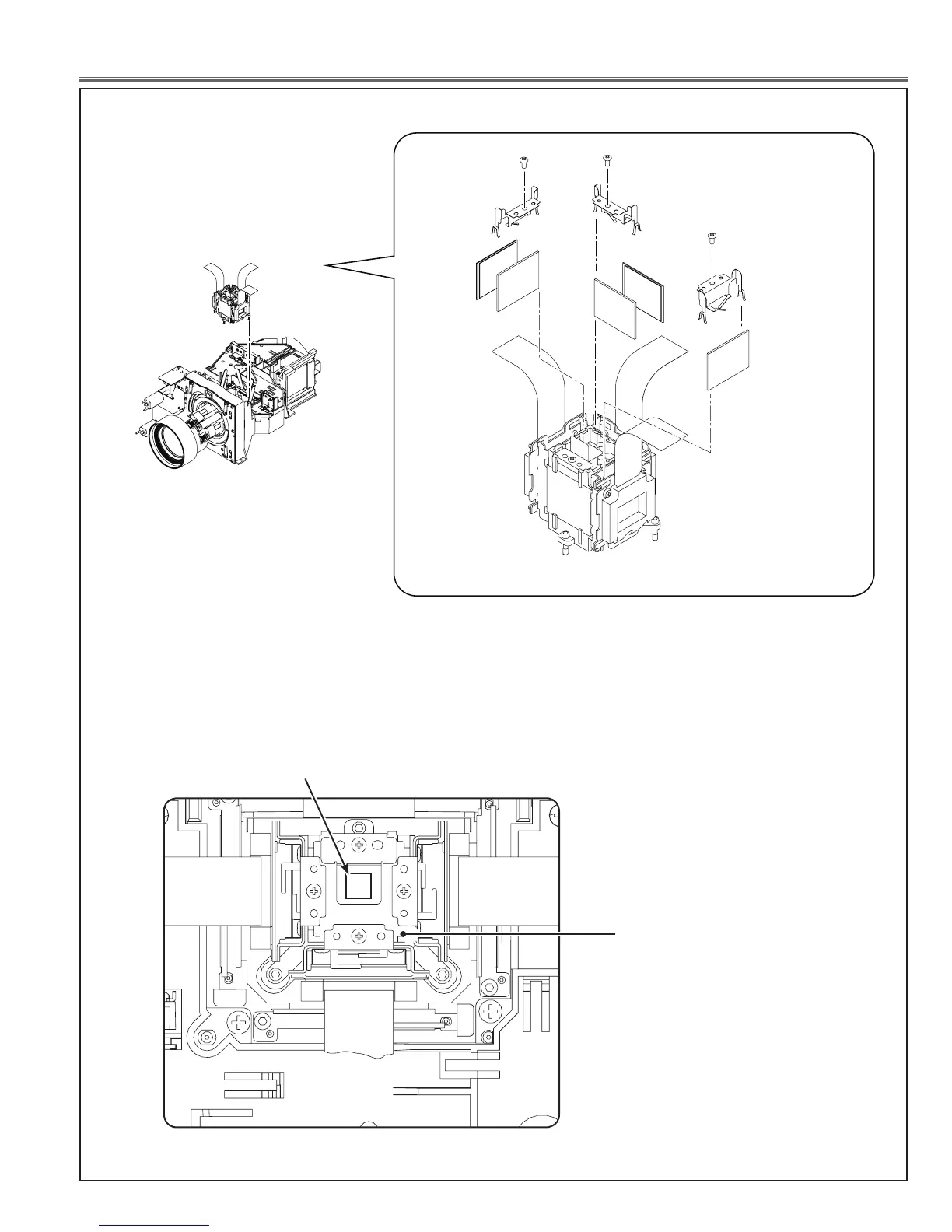

LCD panel / Prism assembly
L02-5
L02
L02-1
L02-4
L02-2
Blue
Red
Green
Note:
There are 2 types of LCD panel/prism assembly, named Type-R and Type-L. When replacing the LCD
panel/prism assembly, replace them with the same type. The type indication label is attached on top of
the LCD panel/prism assembly as shown in the below.
Indication of the Type
R
LCD panel / Prism assembly
L02-3
