Sanyo PLC-XT35L Service Manual

-26-
Mechanical Disassembly
12
Exhaust Fan duct removal.
1. Remove 2 screws-A(T3X6) and remove the Lamp ballast connector.
2. Remove 2 screws-B(T3X10) and remove Exhaust Fan duct.
13-1
Power board(Ballast) ass'y removal-1.
1. Remove 1 screw-A(M3X6), 4 screws-B(T3X8) and remove the Power board(Ballast) ass'y.
A
A
B
A
B
B
B
B
B

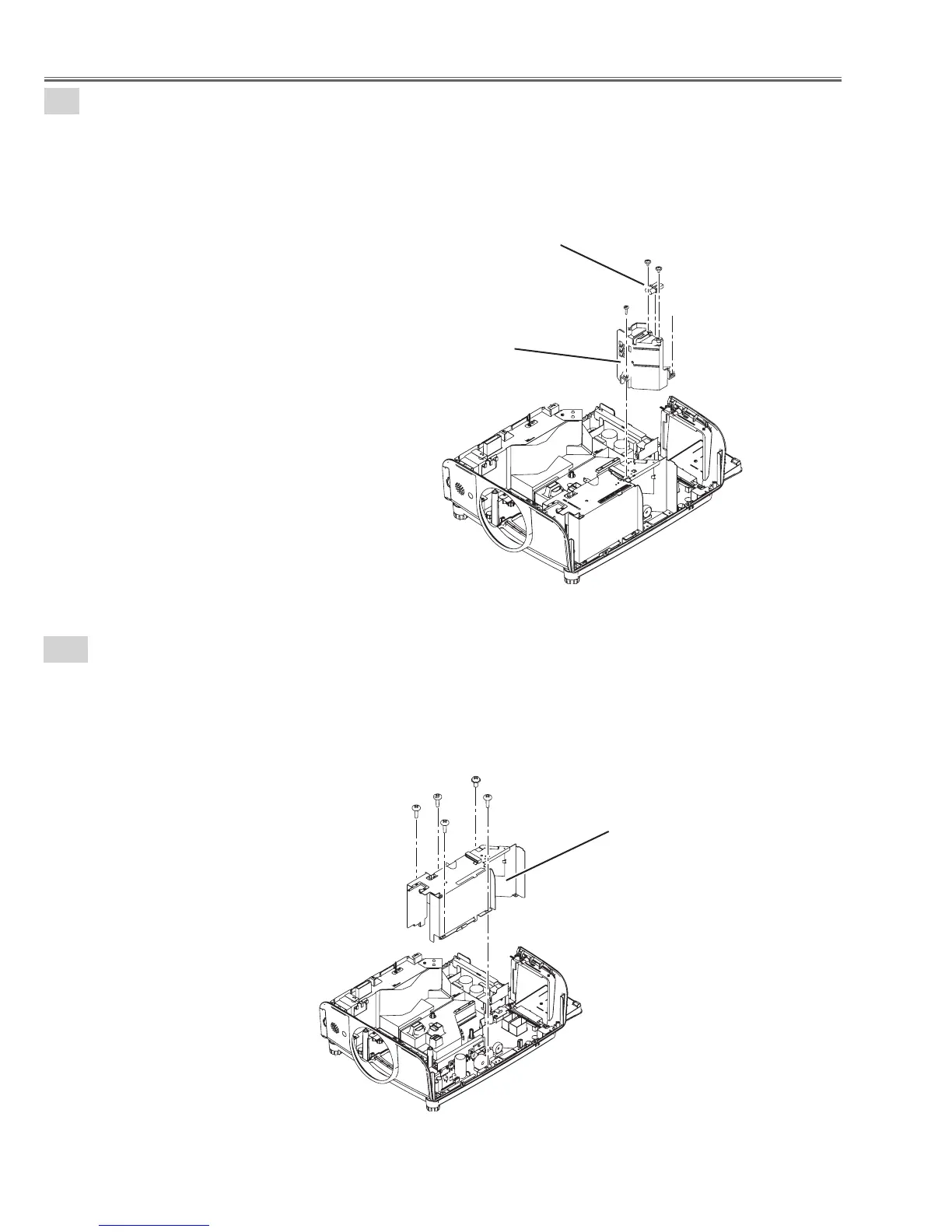

Fig.12
Fig.13-1
Exhaust Fan duct
Power board(Ballast) ass'y
Lamp ballast connector
