Sanyo PLC-XT35L Service Manual

-27-
Mechanical Disassembly
13-2
Power board(Ballast) ass'y removal-2.
1. Remove the 2 rivets A and B, and take off the trigger box. (Press the edge of the rivet-A and
remove the rivets)
2. Remove 2 Fixer clamp and remove the Power board(Ballast).
3. Remove the Spacer sheet.

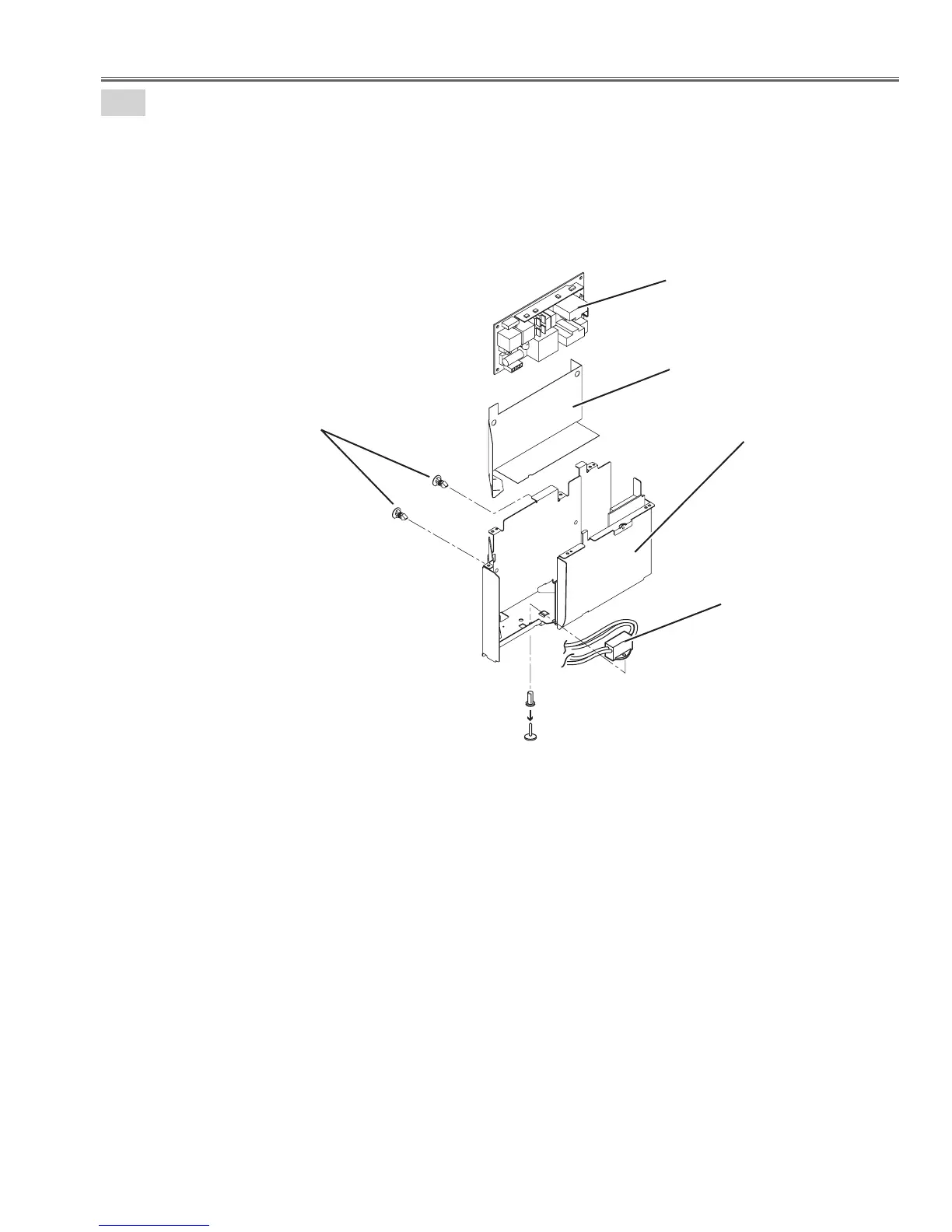

Fig.13-2
Ballast board
(A901)
Fixer clamp
Spacer sheet
Shield plate main power
Trigger box
Rivet-A
Rivet-B
