-28-
Mechanical Disassembly
14
Power board ass'y removal.
1. Remove 1 screw-A(M3X8), 3 screws-B(T3X8) and remove the Power board ass'y.
2. Remove the Spacer sheet.

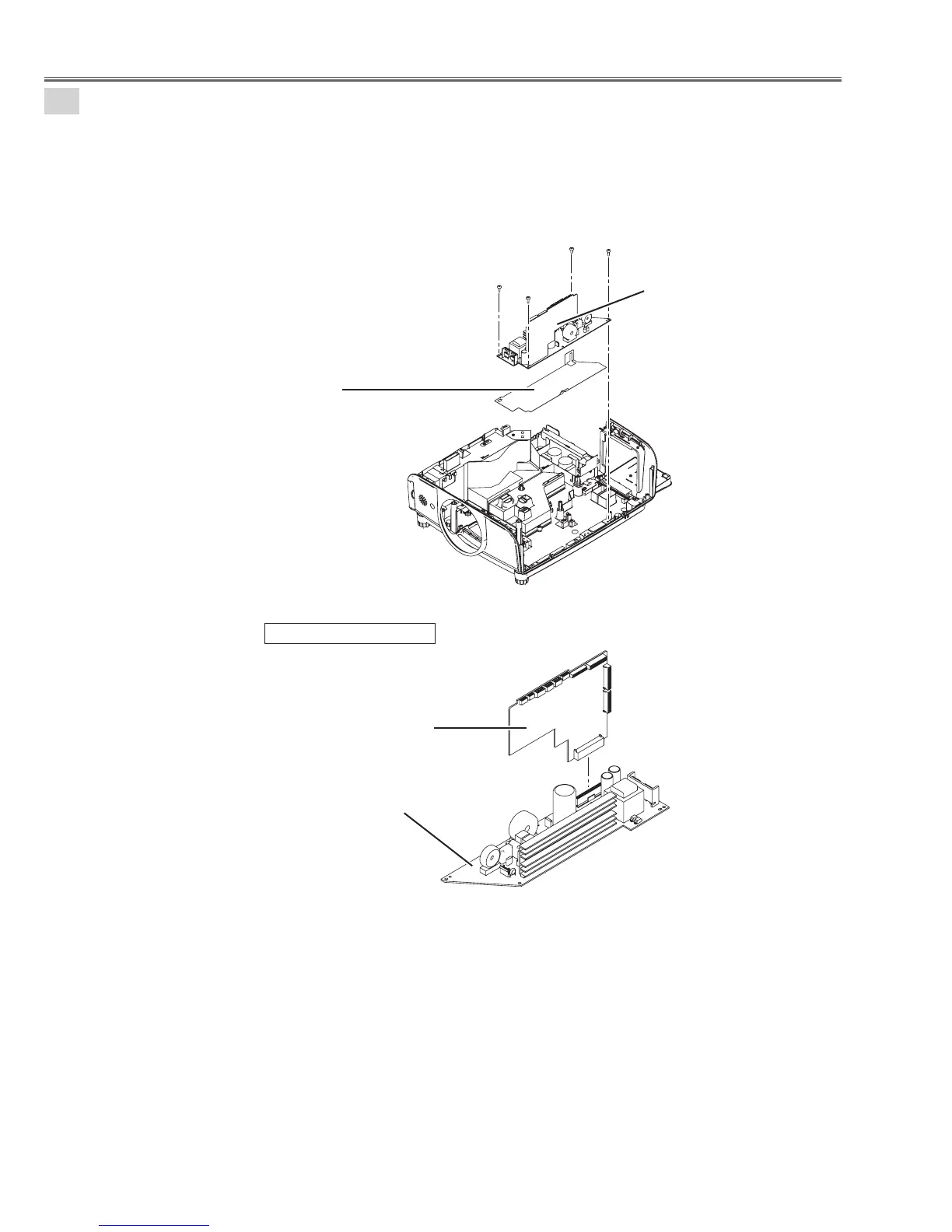

Fig.14a
Fig.14b
Power board ass'y
Power board ass'y
Power board(DC)
(A903)
Power board(AC)
(A902)
Spacer sheet
A
B
B
B
