Sanyo PLC-XT35L

-29-

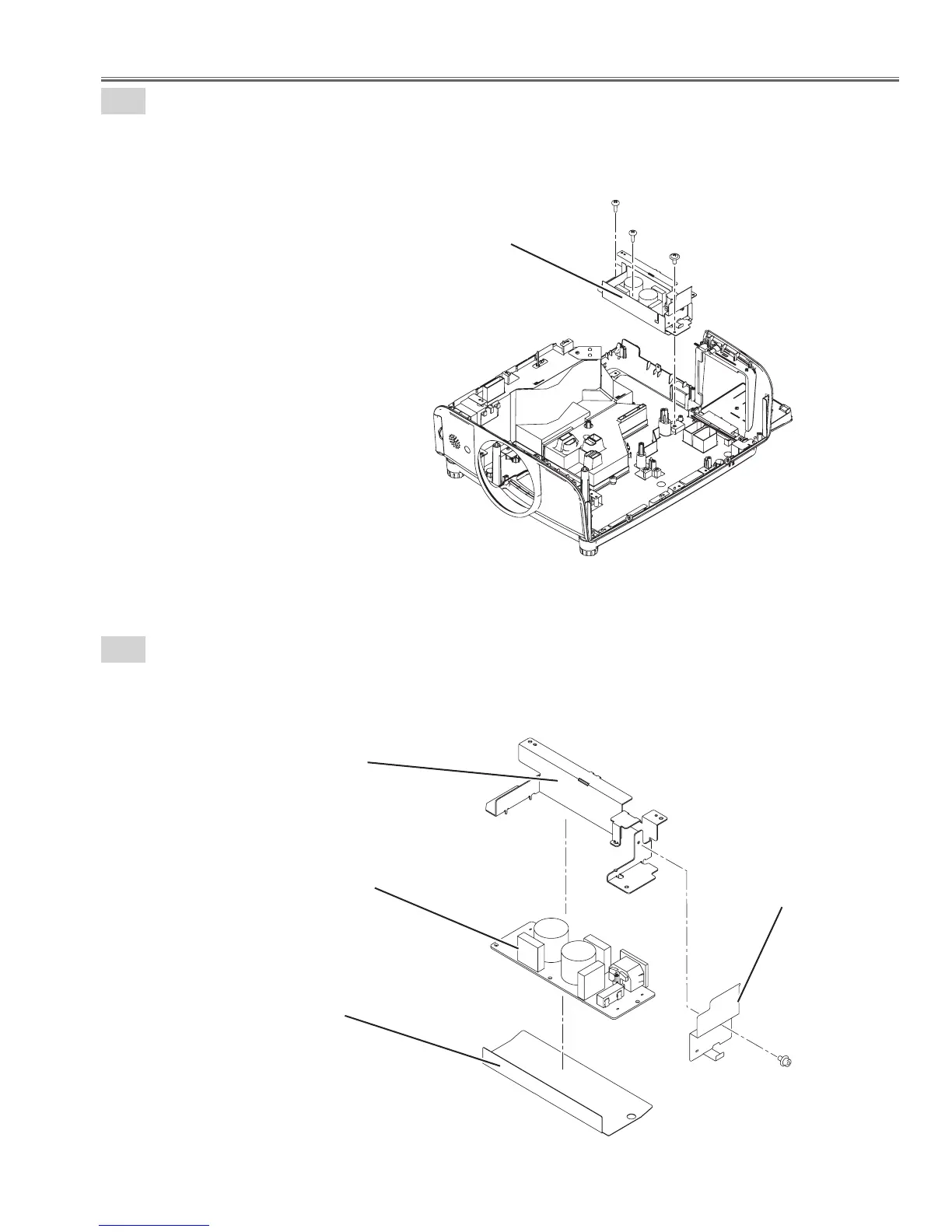

Mechanical Disassembly
15-1
Power board(Filter) ass'y removal-1.
1. Remove 1 screw-A(M3X6), 2 screws-B(T3X8) and remove the Power board(Filter) ass'y.
15-2
Power board(Filter) ass'y removal-2.
1. Remove 1 screw-A(M2.5X5) and remove the Fuse cover.
2. Remove the Holder PWB, remove the Spacer sheet and remove the Power board(Filter).
Fig.15-1
Fig.15-2
Power board(Filter) ass'y
Power board(Filter)
(A904)
Spacer sheet
Holder PWB
Fuse cover
A
A
B
B
