-30-

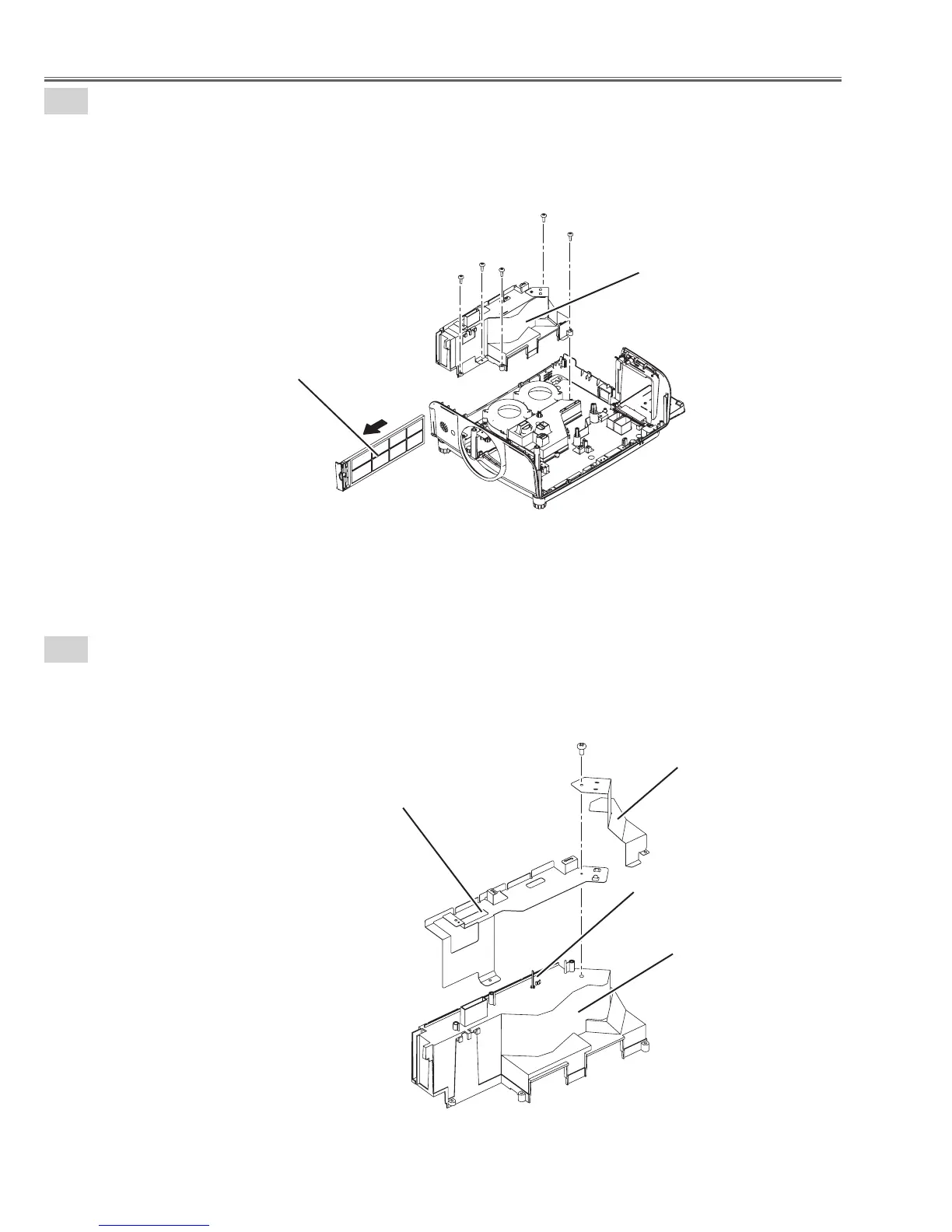

Mechanical Disassembly
16-1
Intake Fan(FN904,FN905)removal-1.
1. Pull out air filter base ass'y.
2. Remove 5 screws-A(T3X8) and remove the intake duct ass'y.
16-2
Intake Fan(FN904,FN905)removal-2.
1. Remove 1 screw-A(M3X6), the Shield plate-A and remove the Shield plate-B.
Fig.16-1
Fig.16-2
Intake duct ass'y
Shield plate-A
Thermistor(TH901)
Shield plate-B
Intake duct
Filter base ass'y
A
A
A
A
A
A
