-36-
Optical Parts Disassembly
23

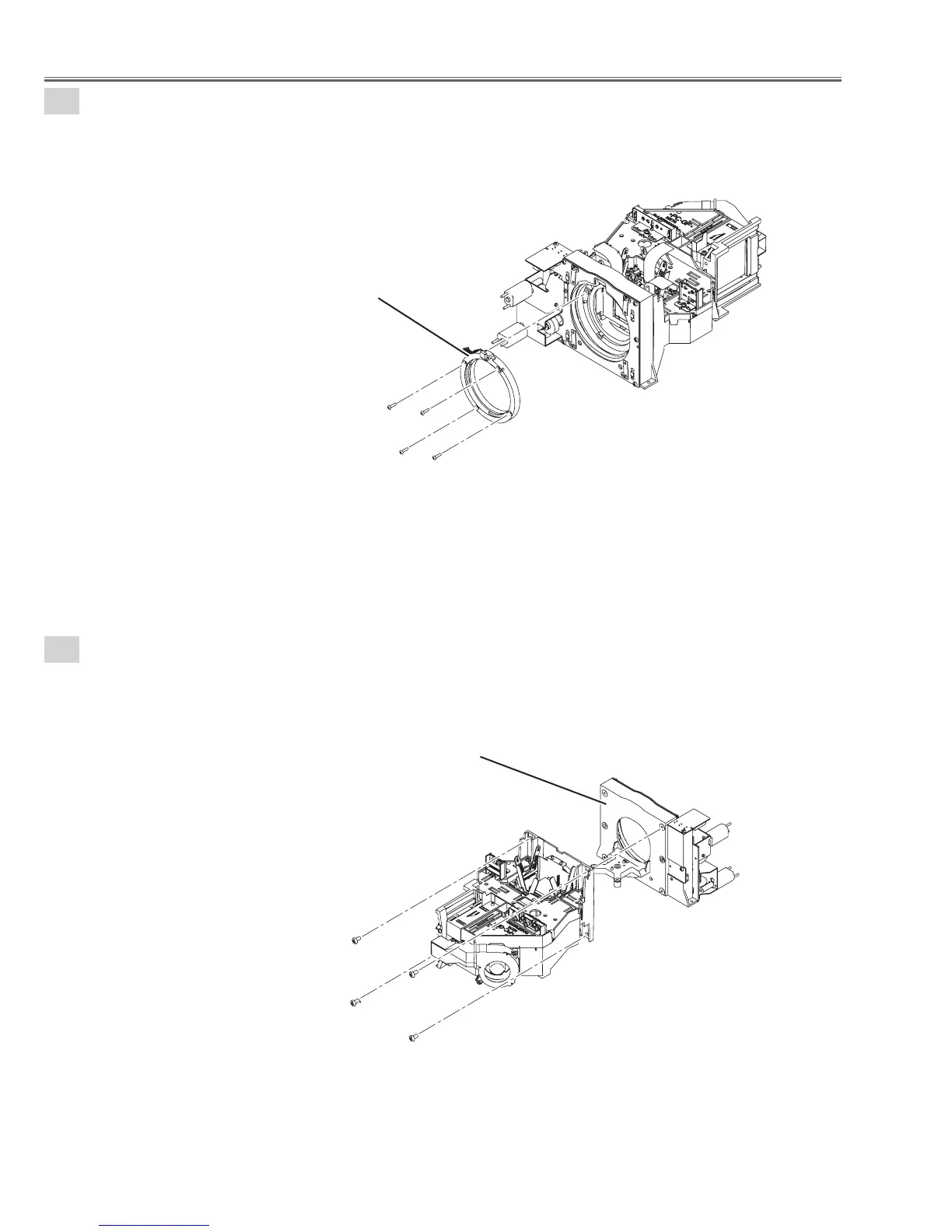

Lens shift ass'y removal.
1. Remove 4 screws-A(M3X6) and remove the Lens shift ass'y.
Fig.23
Lens shift ass'y
A
A
A
A
22
Lens mount removal.
1. Remove 4 screws-A(M2.5X10) and remove the Lens mount.
Fig.22
Lens mount
A
A
A
A
