-37-
Optical Parts Disassembly
24

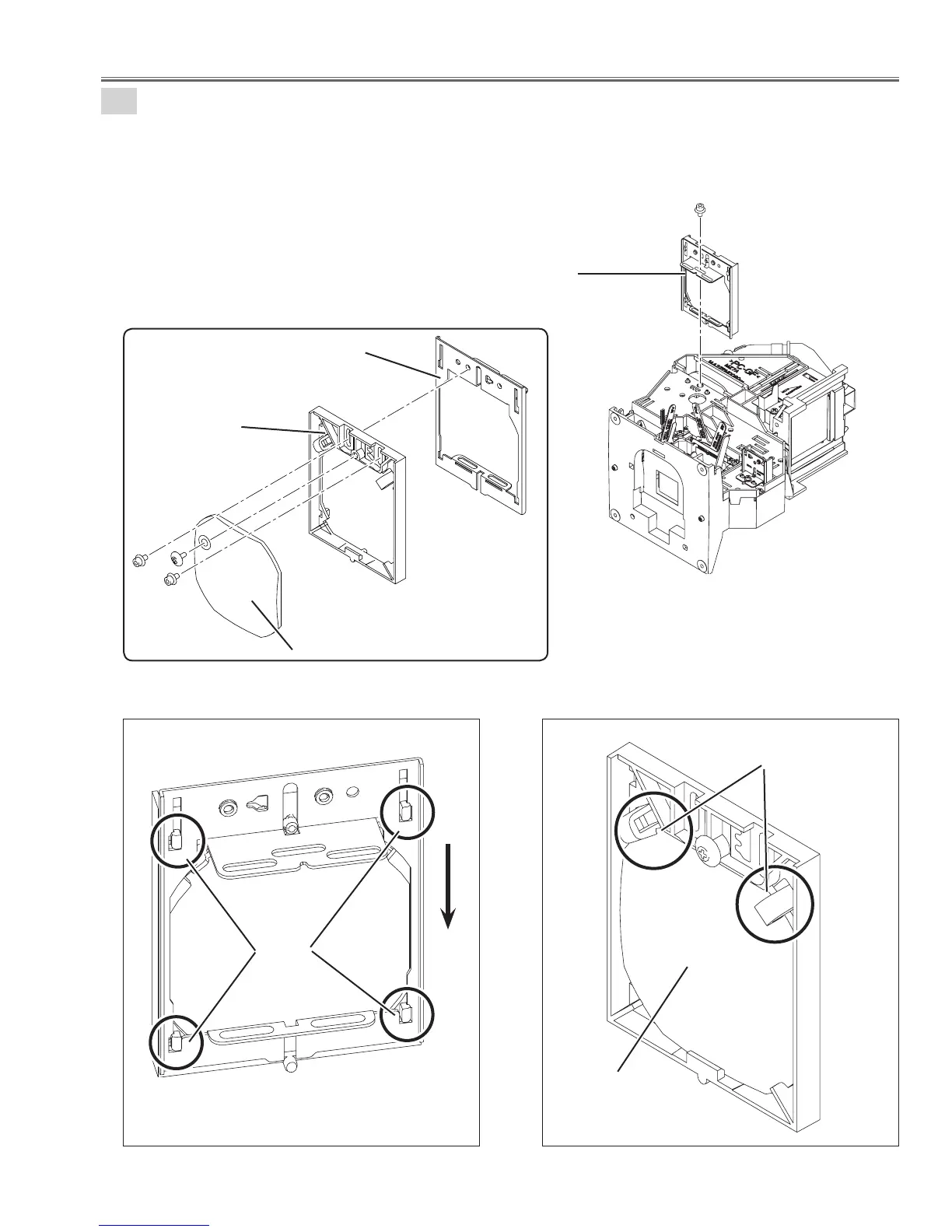

Condenser lens ass'y removal.
1. Remove 1 screw-A(M2.5X5) and remove the Condenser lens ass'y.
2. Remove 2 screws-B(M2.5X5) and remove the Lens holder ass'y.
3. Remove 1 screw-C(T3X6) and remove the Condenser lens.
Fig.24a
Fig.24b
Condenser lens ass'y
A
Condenser lens
Lens holder
Lens holder ass'y
Mounting plate
C
B
B
Hooks
Hooks
Slide the Lens holder ass'y.
Fig.24c
Fig.24d
Condenser lens
To Next Page
