-38-
Optical Parts Disassembly
25

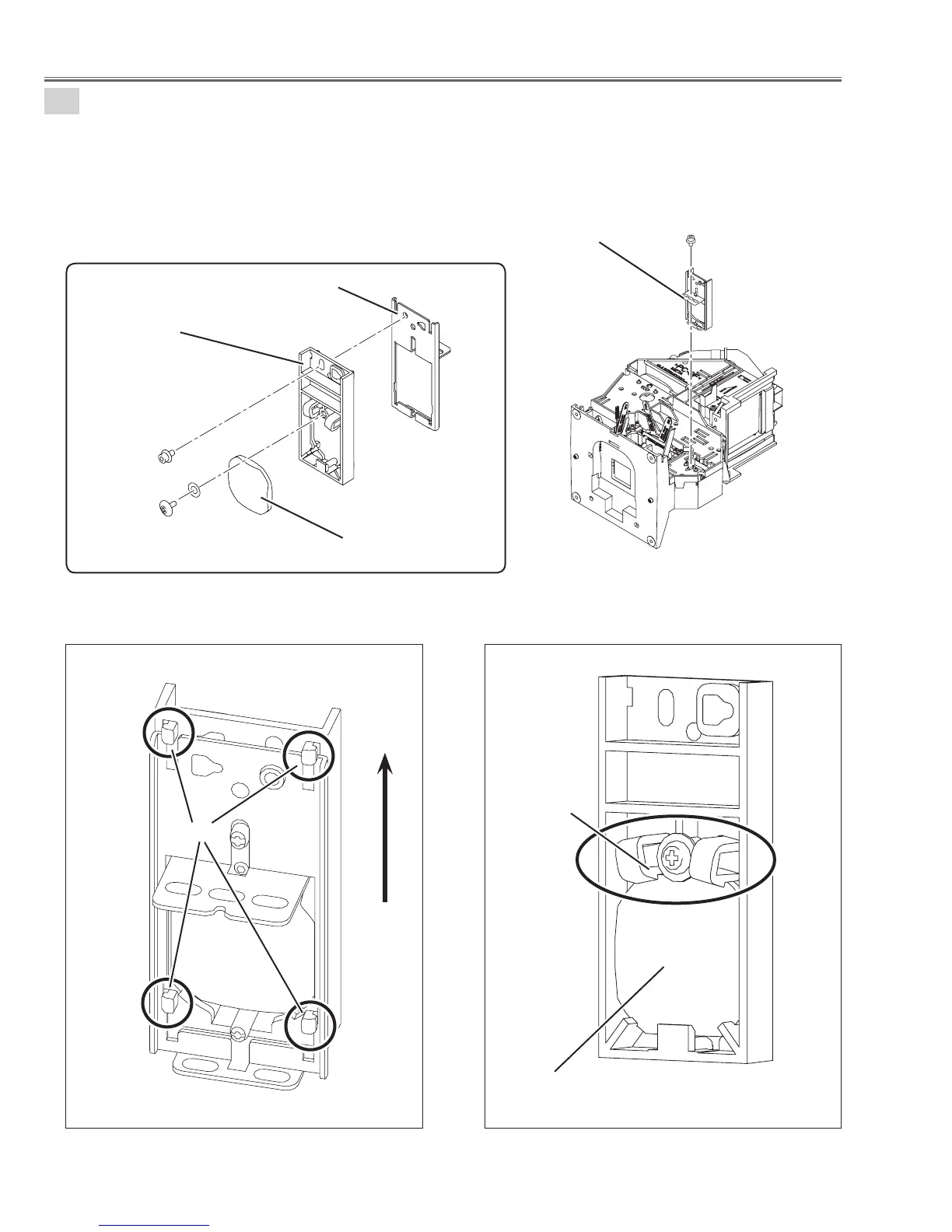

Relay lens ass'y removal.
1. Remove 1 screw-A(M2.5X5) and remove the Relay lens ass'y.
2. Remove 1 screw-B(M2.5X5) and remove the Lens holder ass'y.
3. Remove 1 screw-C(T3X6) and remove the Relay lens.
Fig.25a
Fig.25b
Relay lens ass'y
A
Relay lens
Lens holder
Mounting plate
C
B
Hooks
Hook
Slide the Lens holder ass'y.
Lens holder ass'y
Condenser lens
Fig.25c
Fig.25d
To Next Page
