!0R/C JACK
When using the wired remote control, connect the
wired remote control to this jack with a remote
control cable (not supplied).
!2MONITOR OUTPUT TERMINAL (ANALOG)
This terminal outputs the video signal from
computer to external video equipment (pp.20, 22).
✽ RESET button
A built-in micro processor which controls this unit
may occasionally malfunction and need to be reset.
This can be done by pressing the RESET button
with a pen, which will shut down and restart the
unit. Do not use the RESET function excessively.

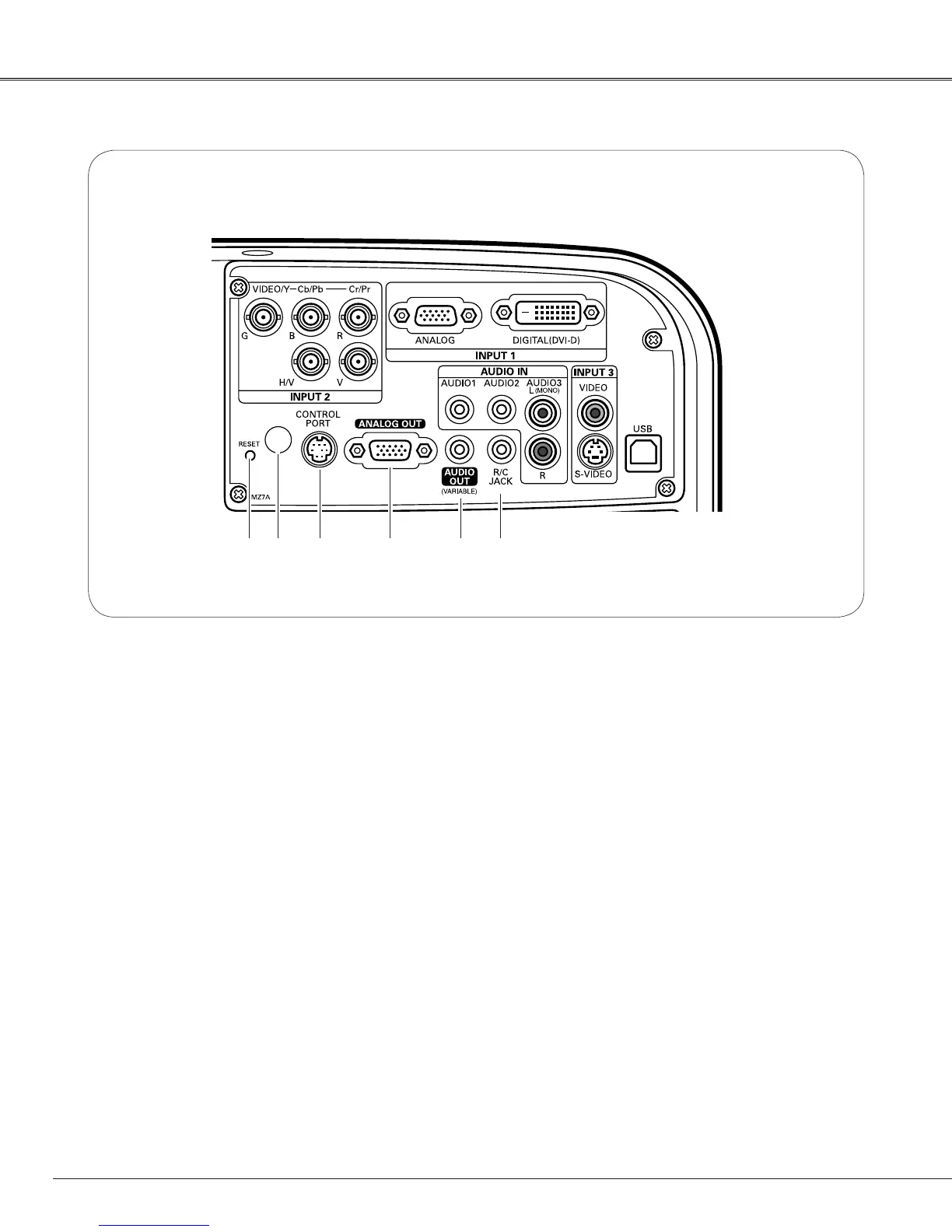

Rear Terminal
!0!1!2!3!4
✽
!1AUDIO MONITOR OUTPUT JACK (VARIABLE)
This jack outputs the audio signal from computer
or video equipment to external audio equipment
(pp.20–22).
!3CONTROL PORT CONNECTOR
When controlling the projector from a computer,
connect the computer to this connector with a
control cable.
!4INFRARED REMOTE RECEIVER (Back)
The infrared remote receiver is also located in the
front (pp.10, 16).
