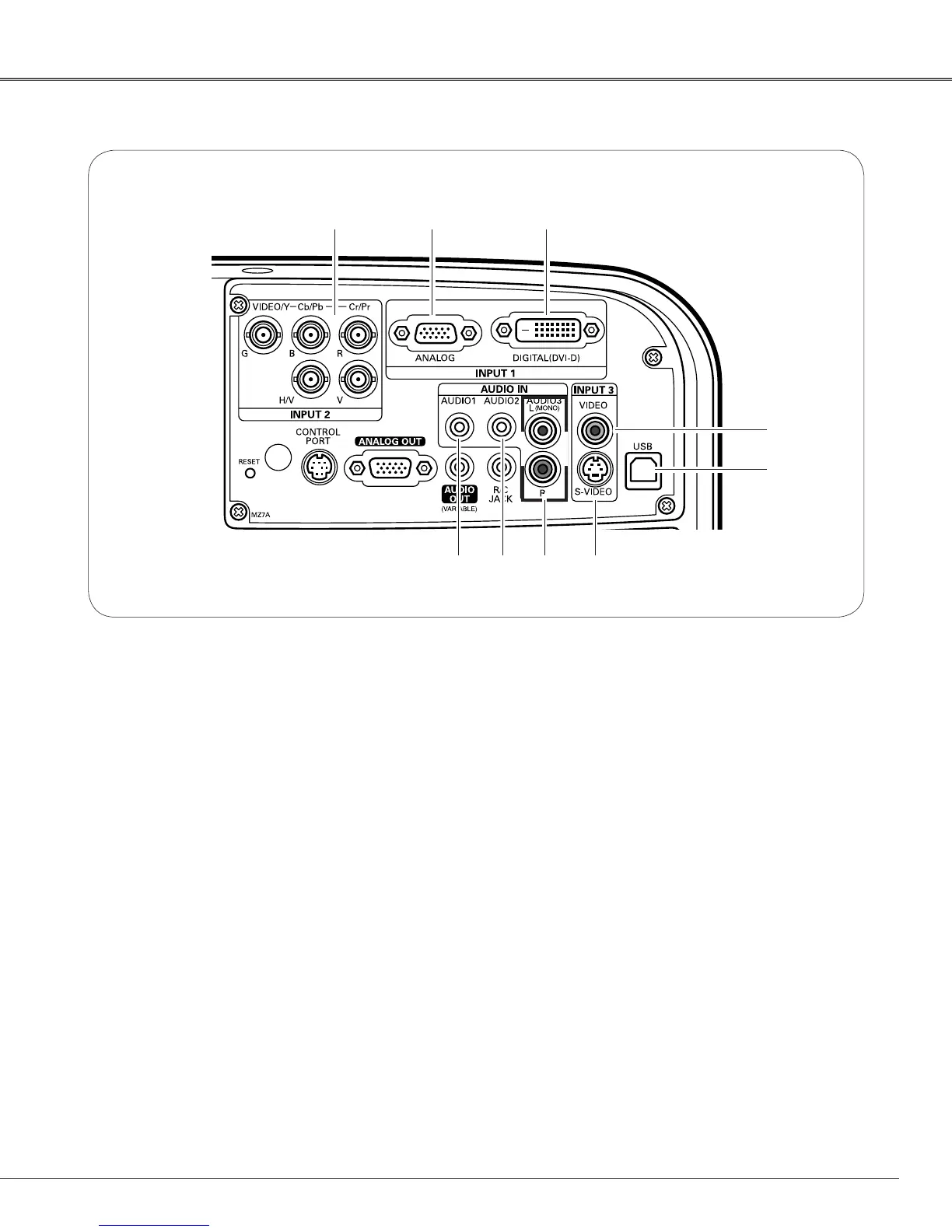

Rear Terminal
q w e
r
t
yi u
tUSB CONNECTOR (Series B)
Use this connector when controlling a computer
with the remote control of the projector. Connect
the USB terminal of your computer to this
connector with the supplied USB cable (p.20).
yS-VIDEO INPUT JACK
Connect the S-VIDEO output signal from video
equipment to this jack (p.21).
iAUDIO 2 JACK
Connect the audio output (stereo) signal from a
computer or video equipment connected to q to
this jack (pp.20–22).
oAUDIO 1 JACK
Connect the audio output (stereo) signal from a
computer or video equipment connected to w or
e to this jack (pp.20, 22).
rVIDEO INPUT JACK
Connect the composite video output signal from
video equipment to this jack (p.21).
uAUDIO 3 JACKS (L(MONO)/R)
Connect the audio output signal from video
equipment connected to r or yto these jacks
(p.21). For a mono audio signal (a single audio jack),
connect it to the L (MONO) jack.
q5 BNC INPUT JACKS
Connect the component or composite video output
signal from video equipment to VIDEO/Y, Cb/Pb,
and Cr/Pr jacks or connect the computer output
signal (5 BNC Type [Green, Blue, Red, Horiz. Sync,
and Vert. Sync.]) to G, B, R, H/V, and V jacks (pp.20–
22).
wCOMPUTER INPUT TERMINAL (ANALOG)
Connect the computer (or RGB scart) output signal
to this terminal (pp.20, 22).
eCOMPUTER INPUT TERMINAL (DIGITAL)
Connect the computer output signal (Digital DVI-D
type) to this terminal. The HD (HDCP compatible)
signal can also be connected (pp.20, 22).
