Connecting to a Computer (Digital and Analog RGB)
Cables used for connection
• VGA Cable (HDB 15 pin)* • USB Cable
• DVI-Digital Cable • Audio Cables (Mini Plug [stereo] x 2)
• BNC Cable
(*One cable is supplied; other cables are not supplied with the projector.)

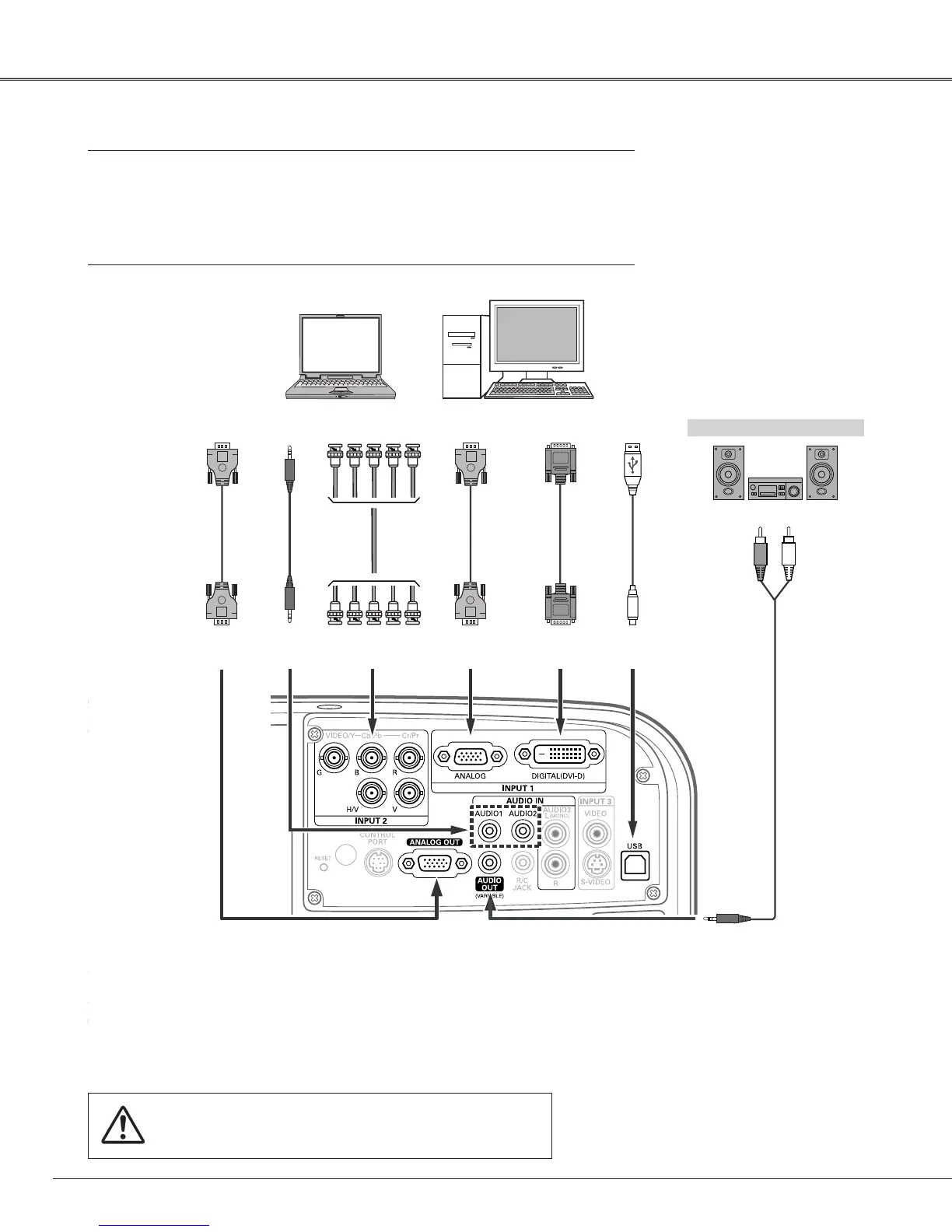

External Audio Equipment
DVI-Digital
cable
USB
cable
Audio
cable
(stereo)
Audio cable
(stereo)
USB port
Audio
Output
USB
AUDIO OUT
(stereo)
Audio Input
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.
✔Notes:
• When the AUDIO OUT is plugged-in, the projector’s built-
in speaker is not available.
• USB cable connection is needed when operating the
computer with the remote control.
• See page 73 for ordering optional cables.
Monitor
Output
DIGITAL
(DVI-D)
VGA
cable
Monitor
Output
Monitor Output
BNC
cable
ANALOG
IN
Monitor
Input
VGA
cable
ANALOG
OUT
G B R H/V V
AUDIO
IN
Installation
To Next Page
