Sanyo PLC-XU300A - Power Board Removal

-16-
Mechanical Disassembly
4. Power Board removal

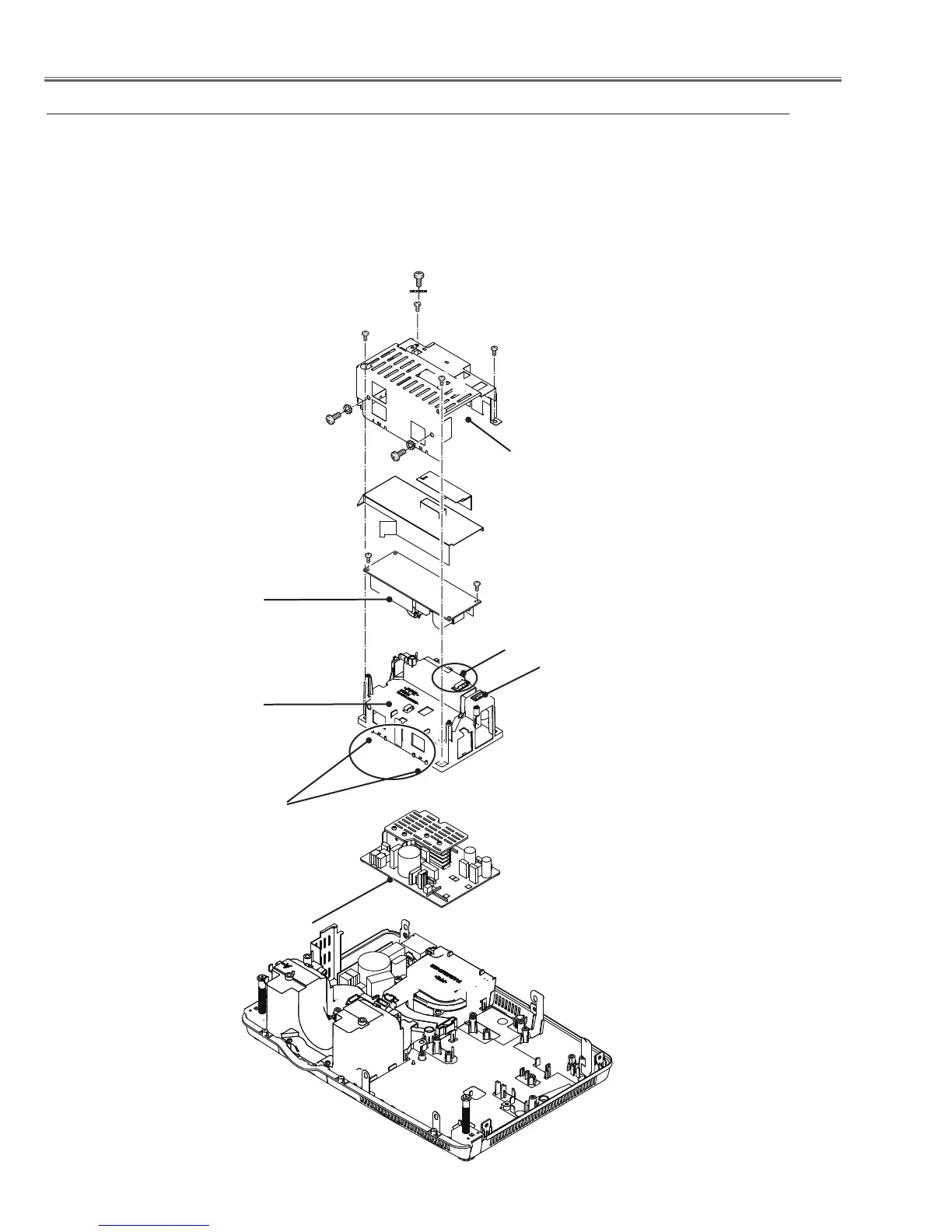

Fig.4
Thermal switch
(SW902)
Power board
A (T3x8)x3
D (T3x8)x2
Ballast board
1. Remove 3 screws A (T3x8), screw B (M3x8) and 3 screws C (M4x4) to
remove the power board shield.
2. Remove the 2 screws D (T3x8) to remove the Ballast board.
3. Remove the power board holder. Loose the hooks to remove the Power
board.
C (M4x4)x3
A
B(M3x8)
A
Power board
shield
C
C
D
Power board
holder
Power board
holder
Hooks
Hooks
