Part Names and Functions

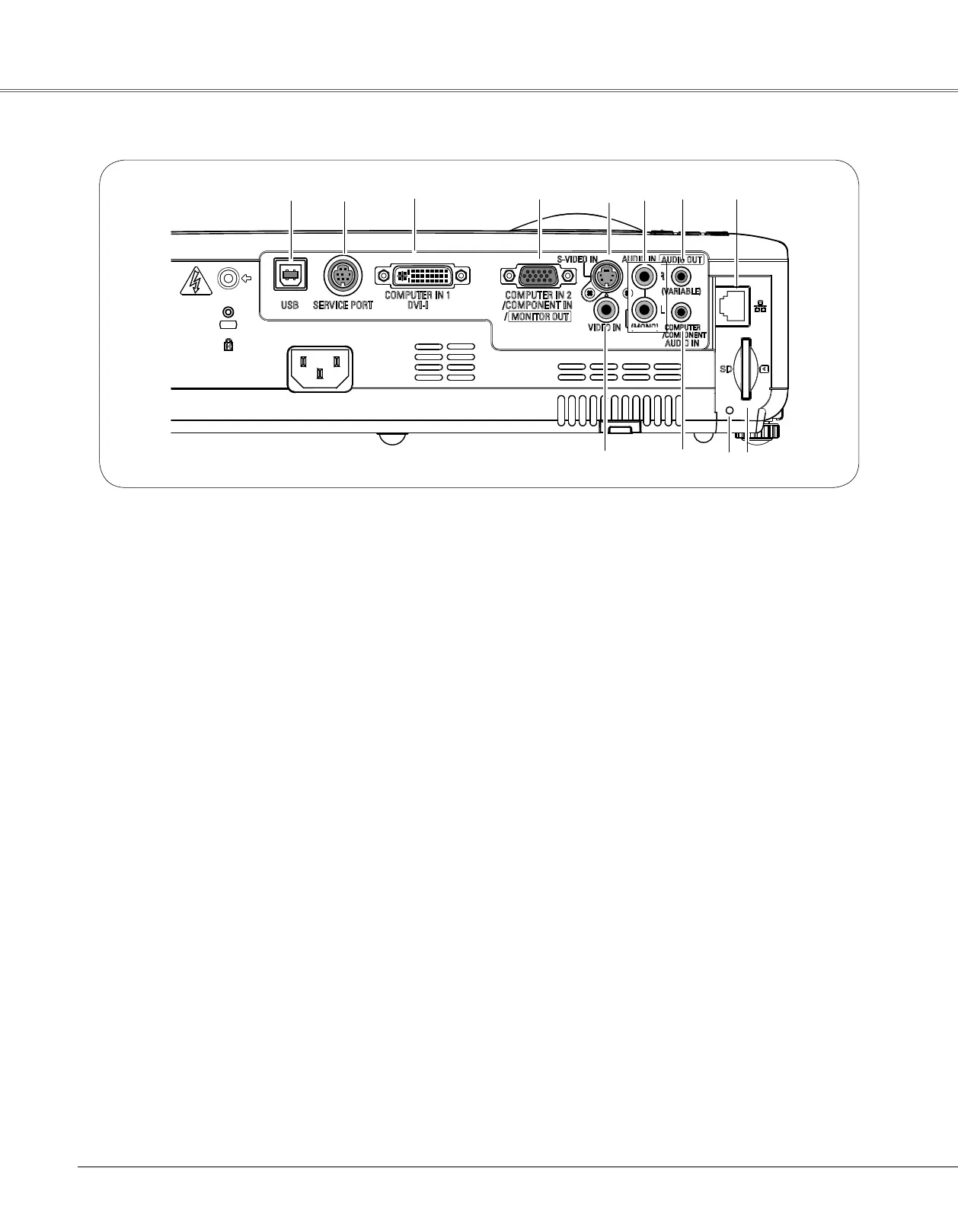

Rear Terminal
⑤ S-VIDEO IN
Connect the S-VIDEO output signal from video
equipment to this jack (p.19).
⑥ AUDIO IN
Connect the audio output signal from video
equipment connected to ⑤ or ⑫ to this jack. For a
mono audio signal (a single audio jack), connect it
to the L (MONO) jack (p.19).
⑪ COMPUTER/COMPONENT AUDIO IN
Connect the audio output (stereo) signal from a
computer or video equipment connected to
③ or
④ to this jack (pp.18, 20).
⑫ VIDEO IN
Connect the composite video output signal to
this jack (p.19).
④
COMPUTER IN 2/COMPONENT IN/ MONITOR
OUT
This terminal is switchable and can be used for
input from a computer or output the incoming RGB
analog signal from COMPUTER IN1 terminal to the
other monitor.
Set the terminal up as either Computer input or
Monitor output properly. (Used for Monitor out,
this terminal outputs only incoming signal from
COMPUTER IN 1 terminal.) (pp18,20)
⑦ AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack
(pp.18–20).
This terminal outputs sound from AUDIO IN
terminal (⑥ or ⑪).
② SERVICE PORT
This jack is used to service the projector.
③ COMPUTER IN 1/DVI-I
Connect computer output (Digital/Analog DVI-I
type) to this terminal (p.18).
⑧ LAN Connection Terminal
Connect the LAN cable (refer to the owner’s
manual “Network Set-up and Operation”).
① USB
In order to operate the computer with the remote
control and use the PAGE
▲▼buttons on the
remote control during a presentation, connect the
USB port of the computer to the USB terminal with a
USB cable (not supplied) (pp.12, 18).
⑨ SD Card Slot
Insert the SD card memory (not supplied) for
Memory viewer operation(refer to the owner's
manual of Memory viewer).
② ③① ⑤ ⑥④ ⑦ ⑧
⑨⑩⑪⑫
⑩ SD Card Indicator
Display the status of SD card. When inserting
SD Card , the i ndicator light s, a nd w h en
unplugging SD Card, the indicator turns off.
