Compliance

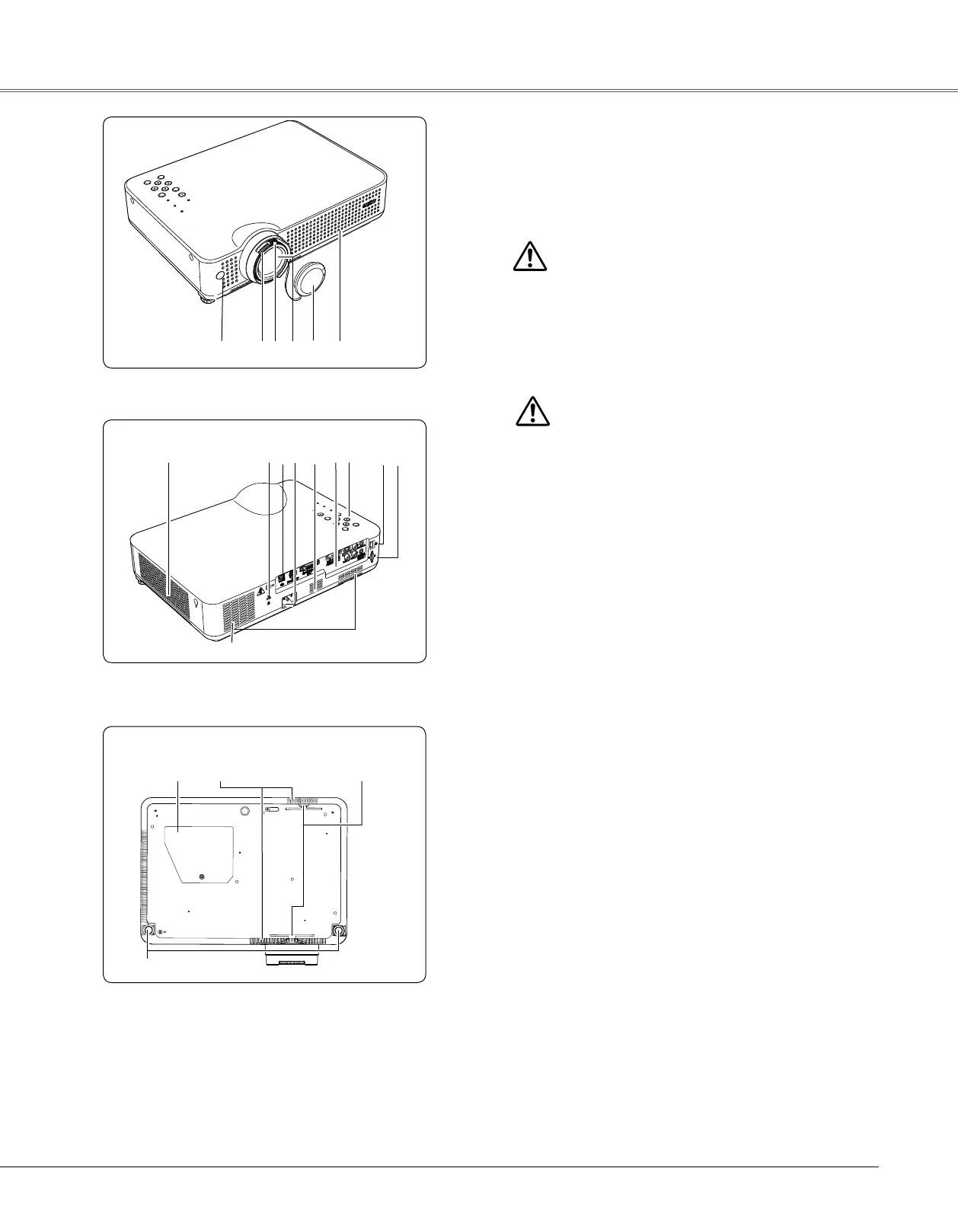

Part Names and Functions
① ⑤ ⑥③②
Front
Back
⑭
⑦
⑩
⑨⑧
⑥
④
⑪ ⑬⑫
⑮ ⑯
⑰
⑱
① Infrared Remote Receiver
② Focus Ring
③ Zoom Lever
④ Projection Lens
⑤ Lens Cap
(See page 59 for attaching.)
⑥ Air Intake Vent
⑦ Exhaust Vents
CAUTION
Hot air is exhausted from the exhaust vent. Do not put
heat-sensitive objects near this side.
⑧ USB Terminal
⑨ Power Cord Connector
⑩ Speaker
⑪ Terminals and Connectors
⑫ Top Controls and Indicators
⑬ LAN Connection Terminal
⑭ SD CARD Terminal
⑮ Lamp Cover
⑯ Air Intake Vents (back and bottom)
⑰ Air Filters
⑱ Adjustable Feet
Note:
⑬
LAN Connection T
erminal and
⑭
SD CARD Terminal
are for the Network function. Refer to the owner’s
manual “Network Set-up and Operation” .
Kensington Security Slot
This slot is for a Kensington lock used to deter theft of
the projector
.
*Kensington is a registered trademark of ACCO Brands
Corporation.
CAUTION
Do not turn on a projector with lens cap attached. High
temperature from light beam may damage lens cap and
result in fire hazard.
Bottom
