Sanyo PLV-Z1 - Mechanical Disassemblies; Cabinet and Front Removal

-10-

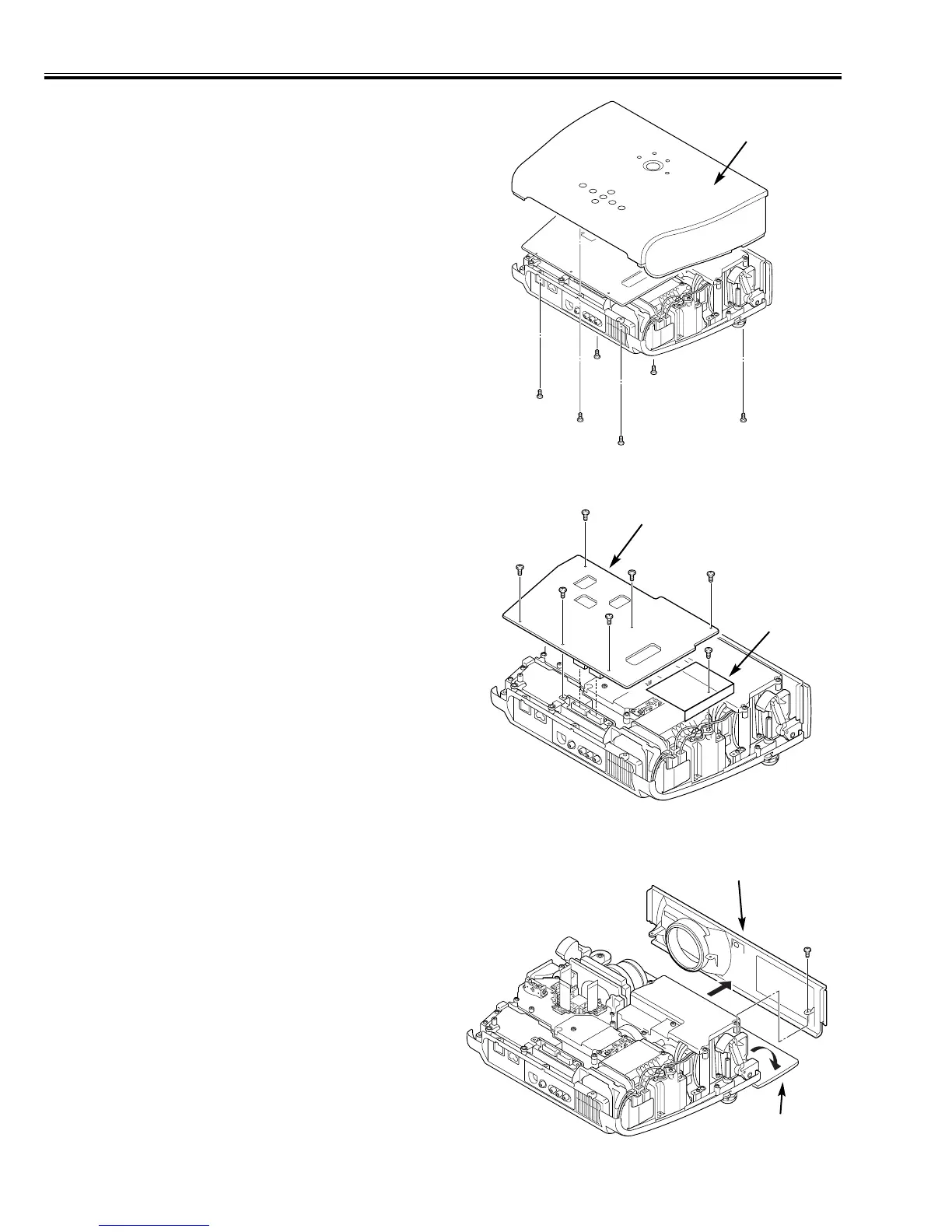

■ Mechanical Disassemblies
1. CABINET - TOP REMOVAL
1. Remove six screws to take the Cabinet Top upward off.
2. MAIN BOARD AND THERMAL BARRIER PLATE REMOVAL
1. Remove six screws A to take the Main Board upward
off.
2. Remove the screw B to take the termal barrier plate
upward off.
Fig. 1
Fig. 2
A
A
A
A
A
A
B
Main Board
Thermal
Barrier
Plate
3. CABINET - FRONT REMOVAL
1. Open the door.
2. Remove the screw to take the Cabinet Front off.
Fig. 3
Cabinet Top
Cabinet Front
Door
