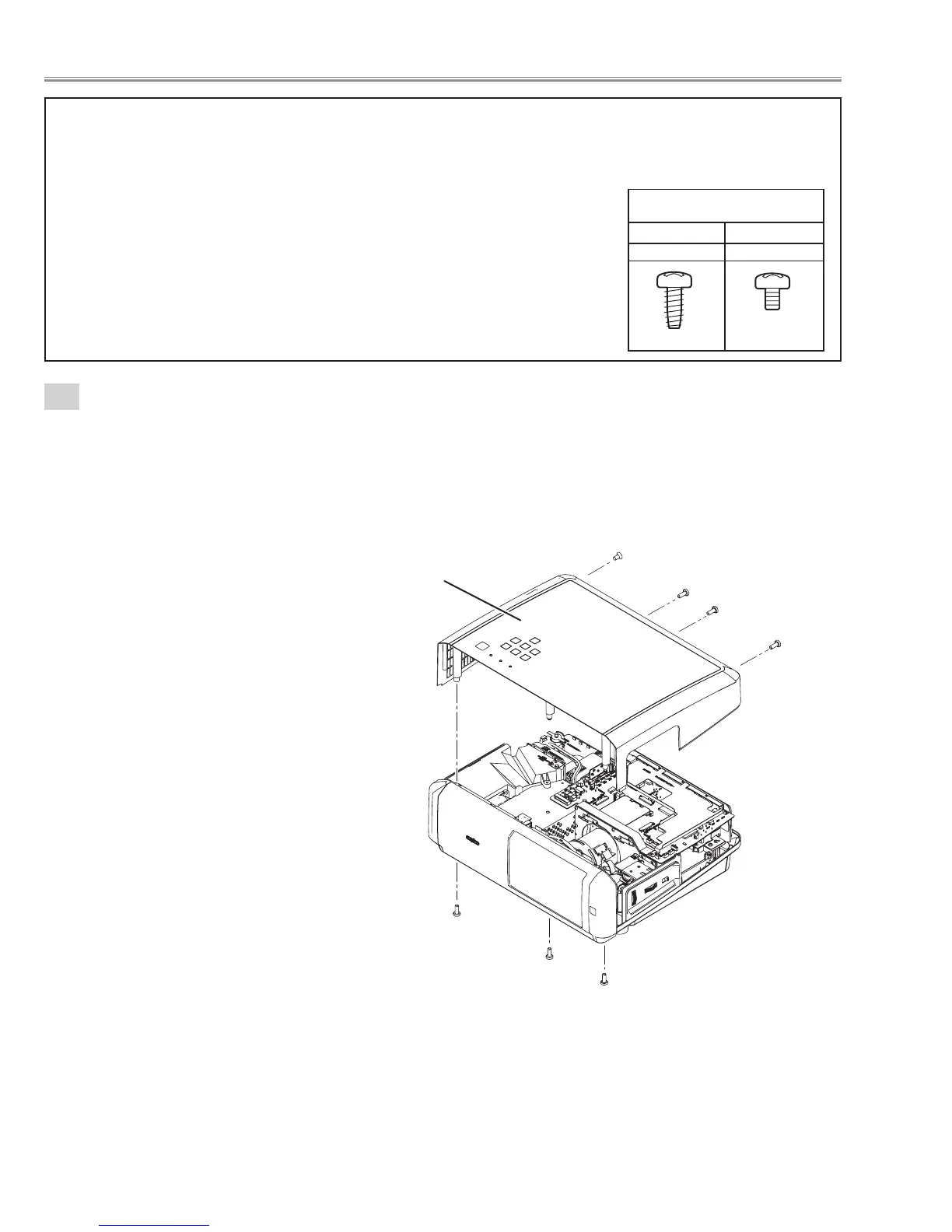

Sanyo PLV-Z4 - Mechanical Disassemblies; Cabinet Top Assembly Removal

1
Cabinet top ass'y removal.
Disassemble should be made following procedures in numerical order.
Following steps show the basic procedures, therefore unnecessary step may be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original
otherwise it may cause lose of performance and product safety.
The wiring method of the leads and ferrite cores should be returned exactly the
same state as the original, otherwise it may cause lose of performance and prod-
uct safety.
Screws Expression
(Type
Diameter x Length) mm
T type M Type
Tapping screw Machine screw
■ Mechanical disassemblies
1. Remove the 3 screws-A(M3x8) from the bottom side.
2. Remove the 2 screws-B(M3x8), remove the screw-C(T3x8), remove the screw-D(M3x6) and
remove the Cabinet top ass'y.
- 14 -
B
B
D
C
A
A
A
Fig. 1
Cabinet top ass'y
