(3) Loosen the 2 screws, in the right and the left, which fix the heatexchanger. (Fig.42)

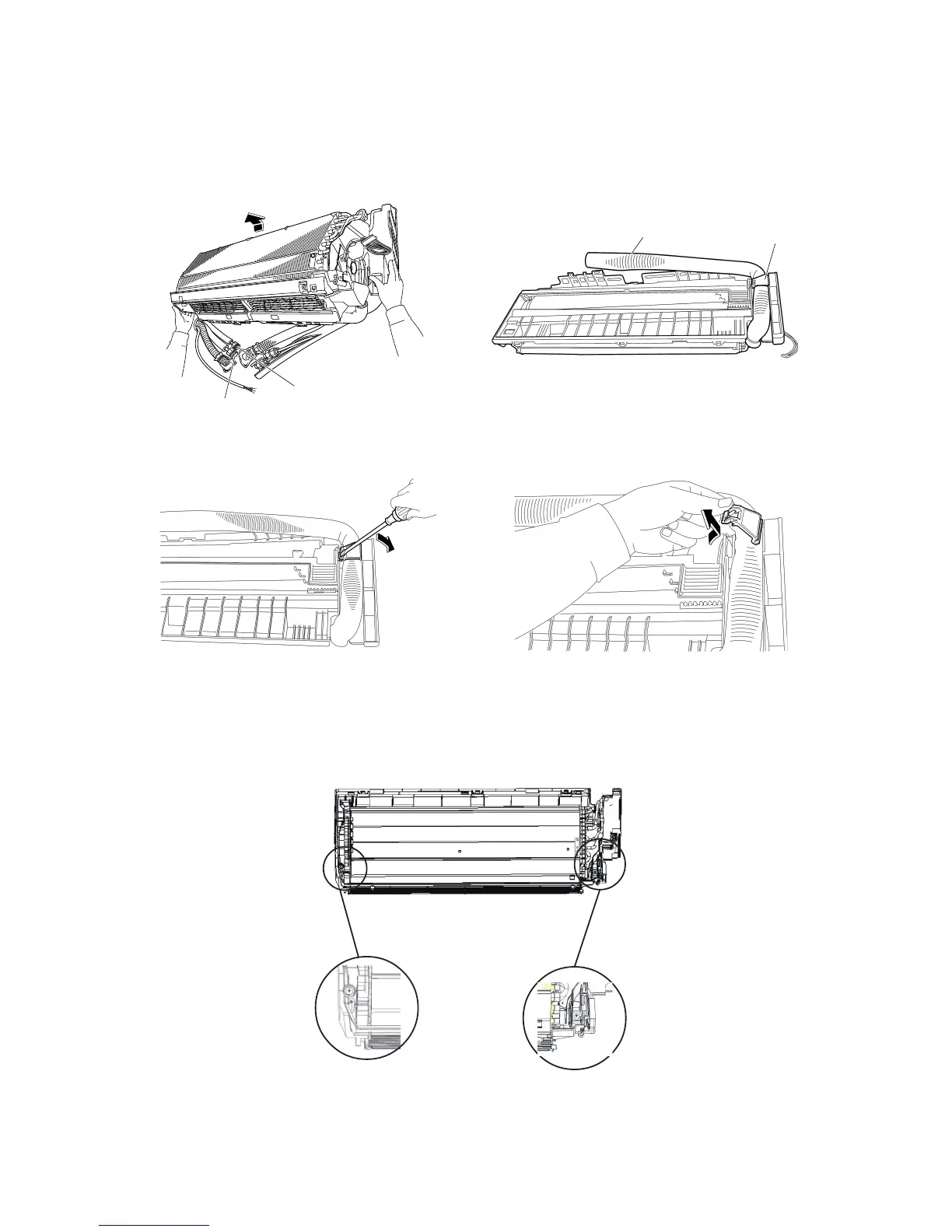

Fig. 38 Fig. 39
Fig. 40 Fig. 41
Fig. 42
9-1-9. Removing the indoor unit
(1) Remove the indoor unit from the installation plate. (Fig.38)
(2) Release the hook of the piping fixture on the back of the unit. (Fig.39, Fig.40 and Fig.41)
Wide tube
Narrow tube
Auxiliary piping
Piping fixture
52
