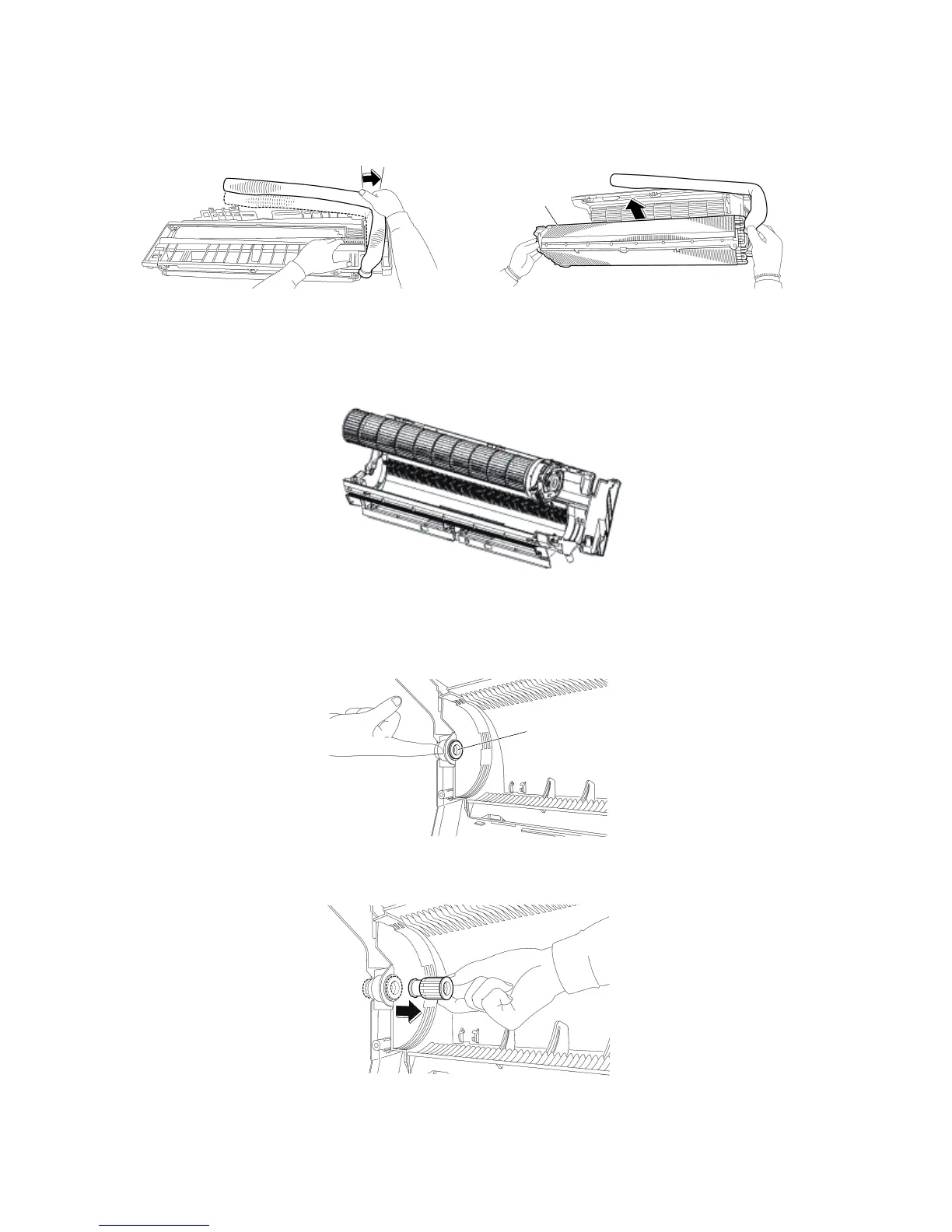

Fig. 43 Fig. 44
Fig. 45
9-1-10. Removing the cross flow fan motor (Fig.45)
Fig. 46
Fig. 47
9-1-11. Removing the ring of bearing (Fig.46 and Fig.47)
(4) Widen the auxiliary piping to the extent of 10º to 20º. (Fig.43)
(5) Pull the heat exchanger to the front side to undo the hooks completely, and then lift it. (Fig.44)
Auxiliary piping
Heat exchanger
Bearing
53
