9-2-8. Disassembling the compressor section
(1) Solder off the welding spot of capillary, valve and outlet pipe of heatexchanger.
(2) Remove the 2 screws fixing the wide tube valve. (Fig.64)
Solder off the welding spot connecting wide tube valve and air return pipe, and remove the wide tube valve.
It is necessary to warp the wide tube valve when soldering off the welding spot.
Remove the 2 screws fixing the narrow tube valve. Solder off the welding spot connecting narrow tube
valve and remove the narrow tube valve.
(3) Solder off the pipe connected with the compressor. (Fig.65)
Remove the 3 footing screws of the compressor and remove the compressor. (Fig.66)
NOTE

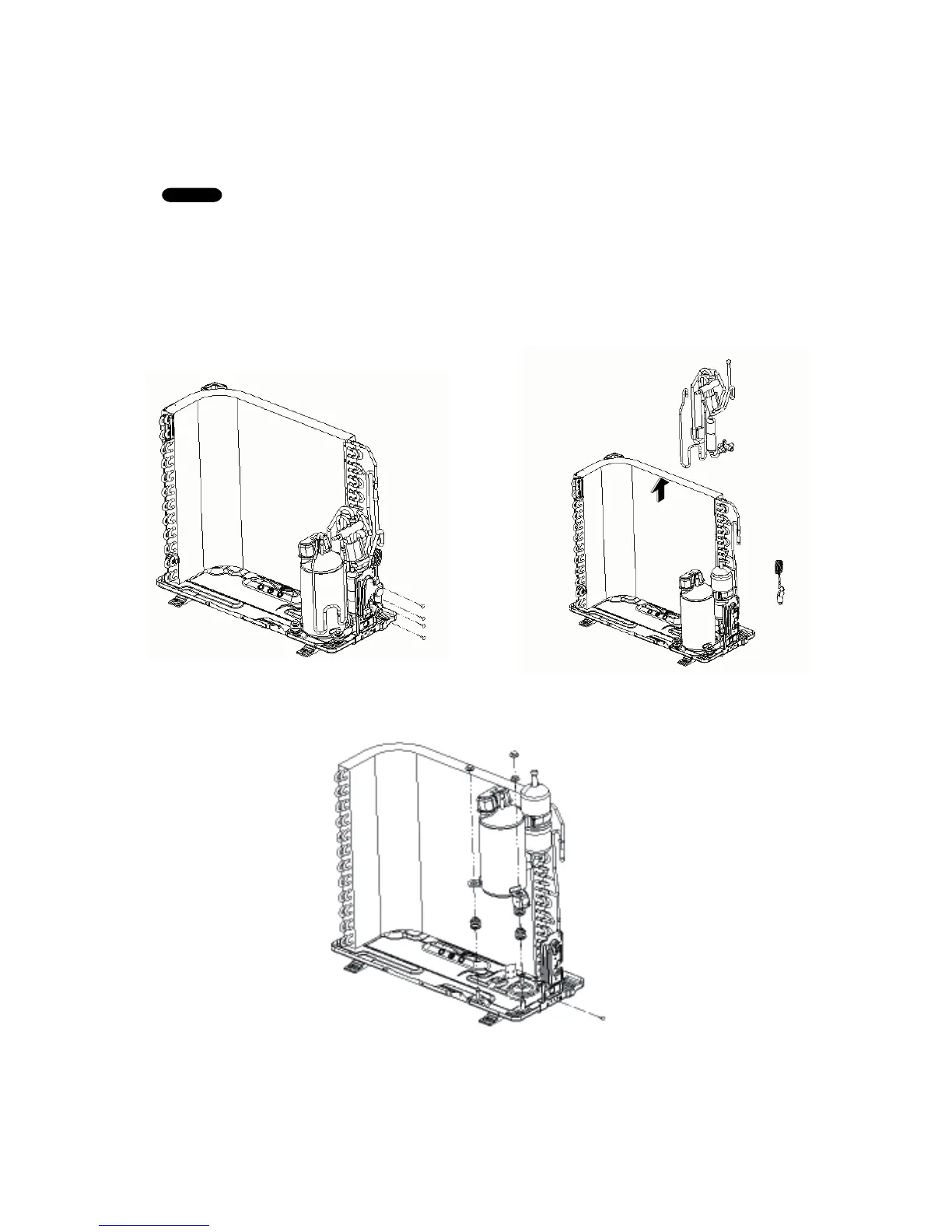

Fig. 64 Fig. 65
Fig. 66
