Sound blanket
Be careful about the four way valve, pipes and so on, which were heated
up by a gas brazing machine, so as not to get burnt your hands.
Caution
9-2-6. Removing the sound blanket

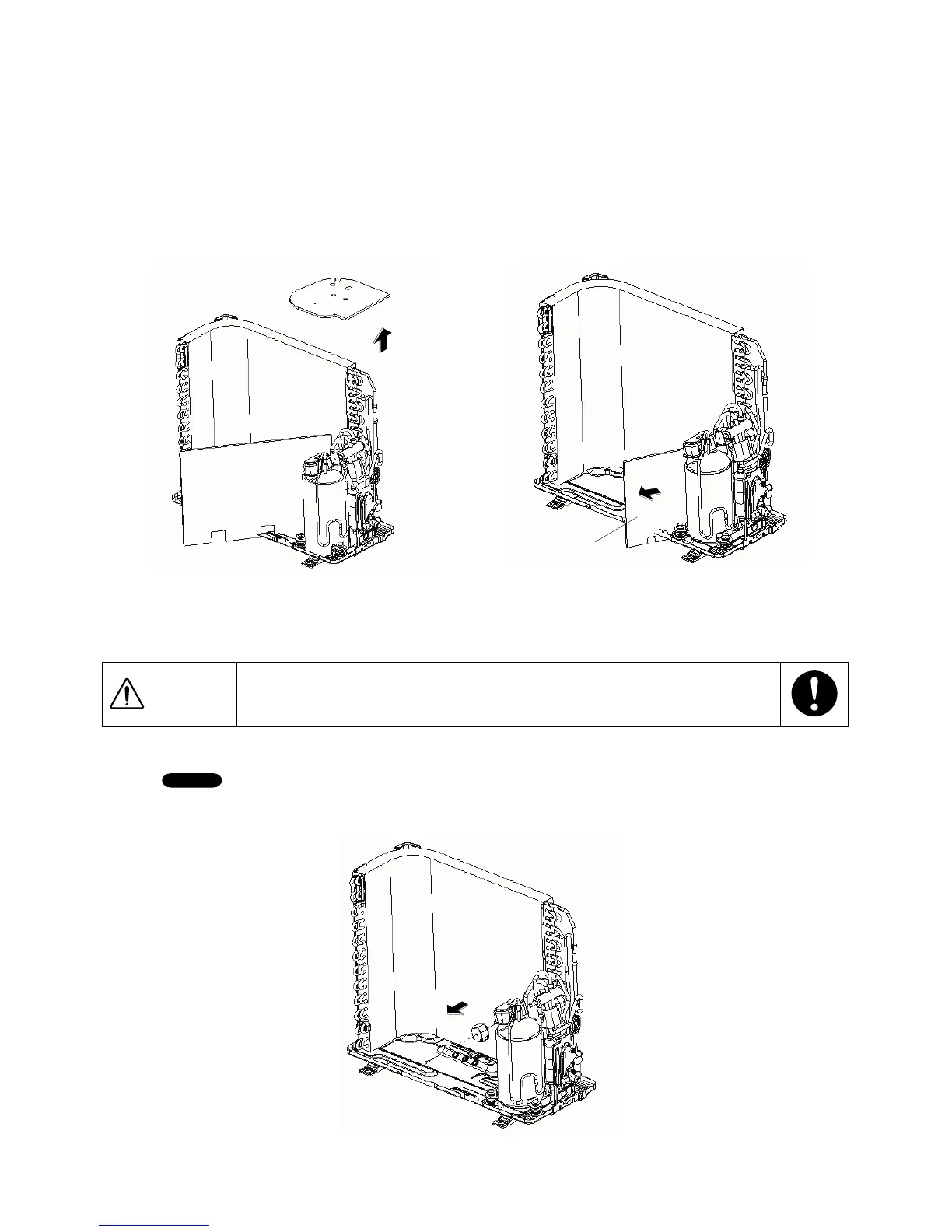

(1) Lift and remove the sound blanket (top). (Fig.61)
(2) Unite the strings and open the sound blanket.
(3) Lift and remove the sound blanket (body) as it is opened.
(4) Pull the sound blanket out. (Fig.62)
9-2-7. Removing the four way valve coil
(1) Loosen the screw of the four way valve coil and remove the four way valve coil. (Fig.63)
1. Provide a protective sheet or a steel plate so that the brazing flame can not influence
peripheries.
2. Be careful so as not to break the pipes by pressing it excessively by pliers when withdrawing it.
NOTE
Fig. 61 Fig. 62
Fig. 63
To Next Page
