IV - 47
TD831077
4
W-ECO MULTI SYSTEM Unit Specifications

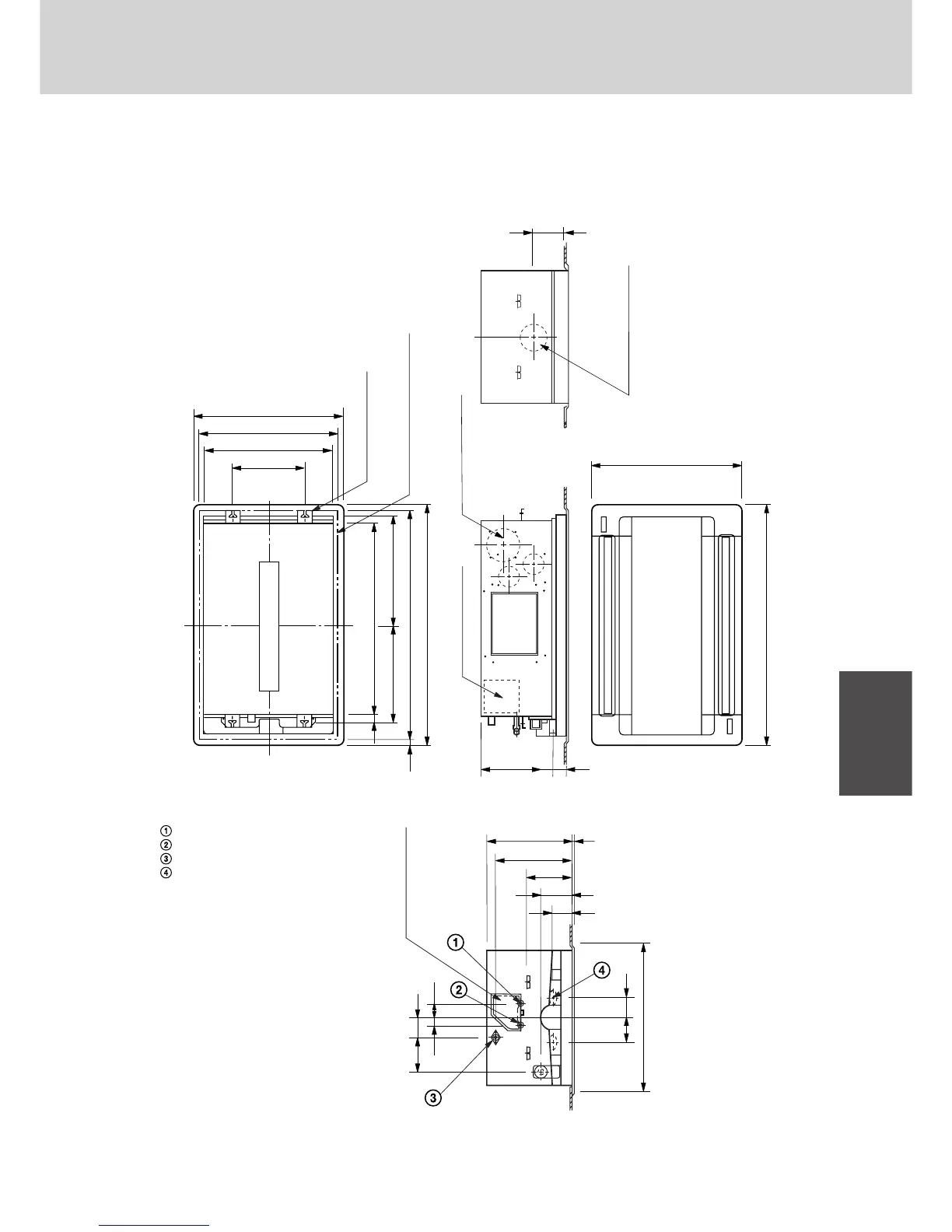

3-3. Dimensional data
Indoor unit : 9, 12 Type
3. 2-Way Air Discharge Semi-concealed Type
FOR DISCHARGE DUCT
(1–ø150 SLIT HOLE)
INSPECTION PANEL
FOR ECV, DRAIN PAN
INSPECTION PANEL
FOR DRAIN PUMP
CEILING OPENING (1070 × 640)
SUSPENSION HOLES
1110
1110
896
107020
680
115
162 88
67
33
93
510450
32
680
140
680
330
330
390 8
351
210
148
89
60
616
640
FOR FRESH AIR INTAKE
(ø125 HOLE)
0206_S_
I
PANEL CENTER
Refrigerant liquid line (ø 9.52)
Refrigerant gas line (ø 12.7)
Drain connection (25 A. O.D.32 mm)
Power supply entry
