W-ECO MULTI SYSTEM Unit Specifications
IV - 58
TD831077
4

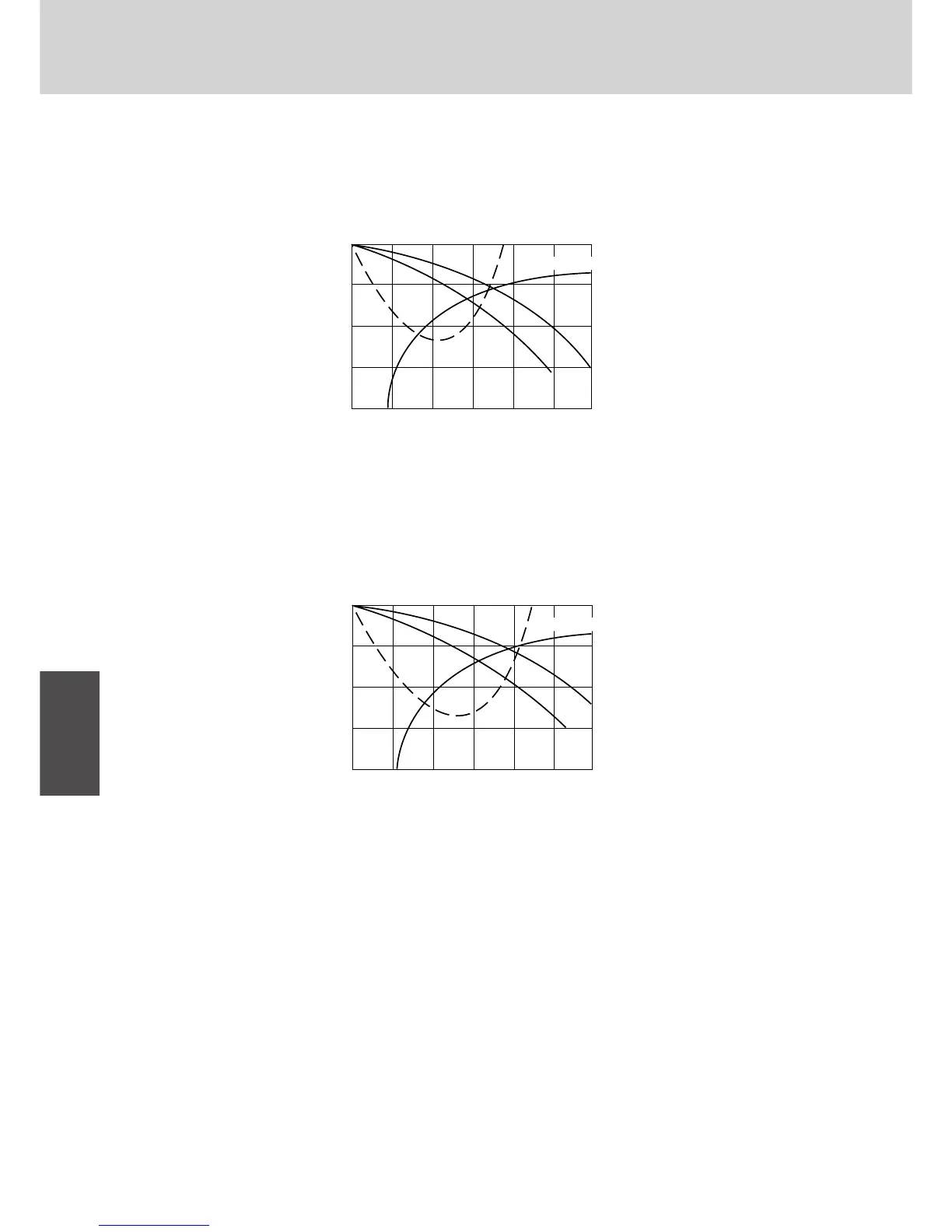

4-5. Air throw distance chart
Model: 9 Type
Model: 12 Type
4. 1-Way Air Discharge Semi-concealed Type
1 : LOUVER ANGLE 10˚ in cooling mode
2 : LOUVER ANGLE 20˚ in cooling mode
3 : LOUVER ANGLE 60˚ in heating mode
01
12
3
23456
0
1
2
3
4
HORIZONTAL DISTANCE (m)
AXIS AIR VELOCITY (m/s)
VERTICAL DISTANCE (m)
AXIS AIR VELOCITY
0287_AS_I
01
1
2
2
3
3
456
0
1
2
3
4
HORIZONTAL DISTANCE (m)
AXIS AIR VELOCITY (m/s)
VERTICAL DISTANCE (m)
AXIS AIR VELOCITY
0288_AS_I
Condition Fan Speed : Hi
Room air temp. : 27 ˚C DB in cooling mode
20 ˚C DB in heating mode

Sanyo SPW-C1503GDYH8 Specifications
