Design of W-ECO MULTI SYSTEM
2
TD831077
4. Installation Instructions

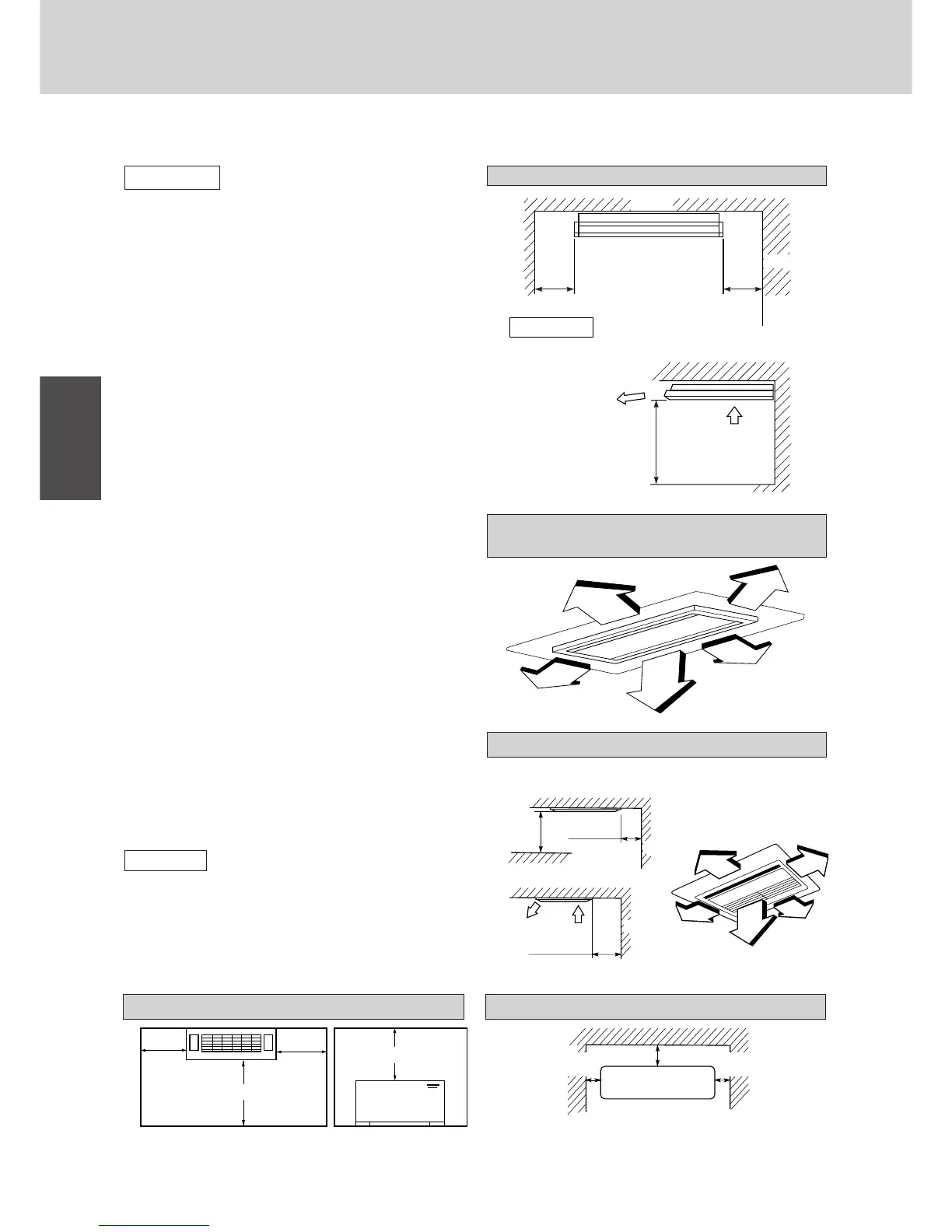

4-1. Selecting the installation site
Indoor Unit
Ceiling-Mounted Type
1174_T_I
min. 25 cm
The rear of the indoor unit can be installed flush
against the wall.
min. 50 cm
Air intake
Air
discharge
min. 25 cm
Ceiling
Wall
NOTE
Front view
AVOID:
● areas where leakage of flammable gas may be
expected.
● places where large amounts of oil mist exist.
● direct sunlight.
● locations near heat sources which may affect the
performance of the unit.
● locations where external air may enter the room
directly. This may cause “sweating” on the air
discharge ports, causing them to spray or drip.
● Iocations where the remote controller will be splashed
with water or affected by dampness or humidity.
● installing the remote controller behind curtains or
furniture.
DO:
● select an appropriate position from which every corner
of the room can be uniformly cooled.
● select a location where the ceiling is strong enough to
support the weight of the unit.
● select a location where tubing and drain pipe have the
shortest run to the outdoor unit.
● allow room for operation and maintenance as well as
unrestricted air flow around the unit.
● install the unit within the maximum elevation difference
above or below the outdoor unit and within a total
tubing length from the outdoor unit as detailed in Table
1-20.
● allow room for mounting the remote controller about
1m off the floor, in an area that is not in direct sunlight
nor in the flow of cool air from the indoor unit.
NOTE
Air delivery will be degraded if the distance from the floor
to the ceiling is greater than 3 m. (for SL type, greater
than 3.5 m)
Floor-Standing, Concealed Floor-Standing Type
min.
10 cm
min. 100 cm
0754_M_I
min.
10 cm
min. 100 cm
Horizontal view Vertical view
Side view
Concealed-Duct Type
2-Way, 4-Way Semi-Concealed Type
0021_X_I
1m
1m
1m
1m
1m
1-Way Semi-Concealed & Slim Type
1175_X_S
20
cm
20
cm
100
cm
20
cm
100
cm
min. 5 cm
min. 5 cm
min. 1 m
Air
intake
Air
discharge
Obstacle
Ceiling
Wall
Wall
0770_AS_
