Sanyo VPC-CS1 Service Manual

– 12 –
A
A
4
6
5
10
11
19
8
7
17
17
15
18
21
16
9
22
20
14
13
3
12
2
1
A
B

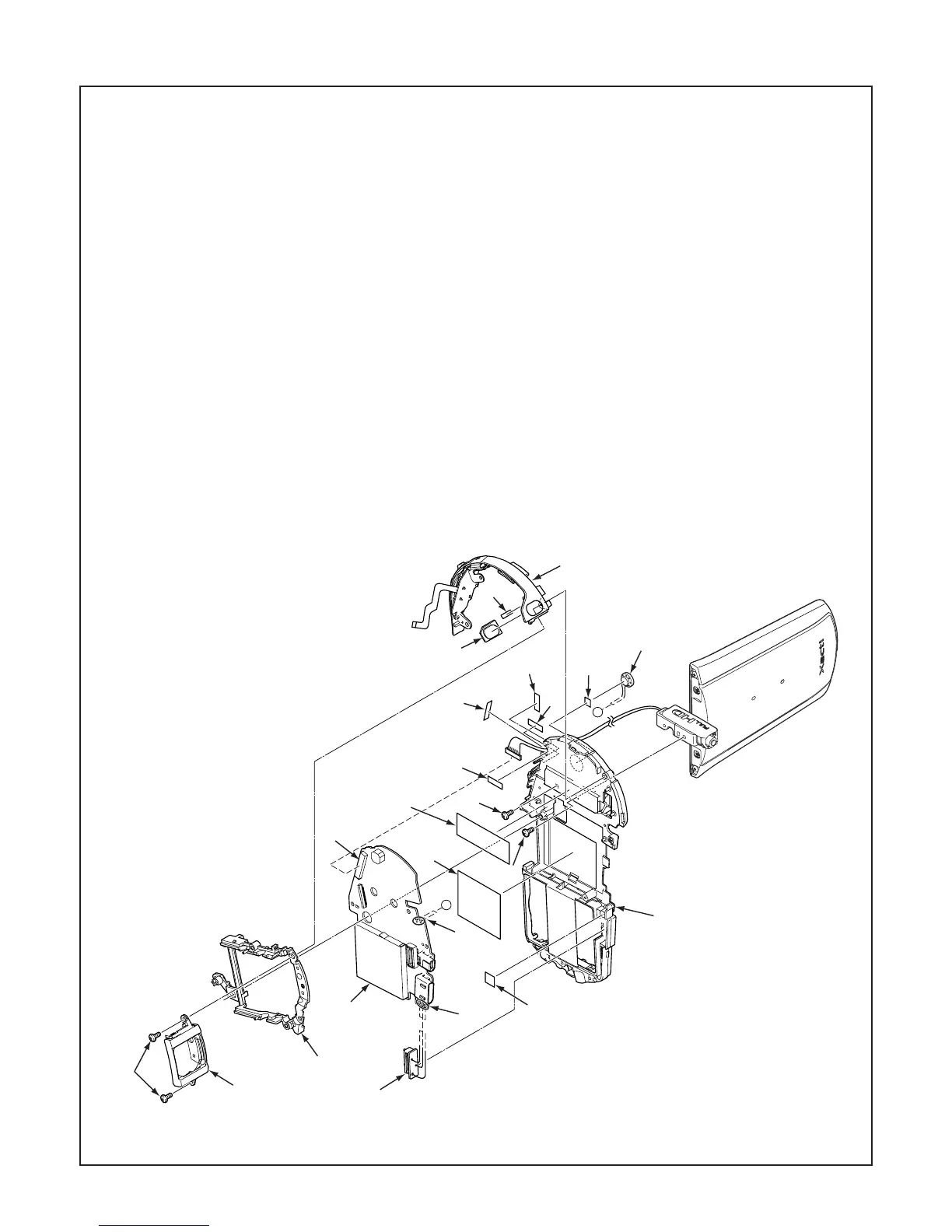

1. Two screws 1.7 x 4.5
2. Holder lens
3. Holder lens base
4. Unit button main
5. Dec LED
6. Adhesive dec LED
7. Spacer LCD cable D
8. Spacer LCD cable C
9. Connector (CN105)
10. Speaker, 8
11. Adhesive speaker
2-2. REMOVAL OF TB3 BOARD AND CP1 BOARD
12. TB3 board
13. CP1 board
14. Remove the solder.
15. Remove the solder.
16. Spacer joint base
17. Two screws 1.7 x 2.5
18. Assy, holder chassis
19. Spacer LCD cable A
20. Spacer LCD cable B
21. Spacer batt
22. Spacer chassis
When assembling,
tighten the screws order.
A → B
