Sartorius BL310 - Balance Setup Procedures; Assembly of Draft Shields and Pans

5

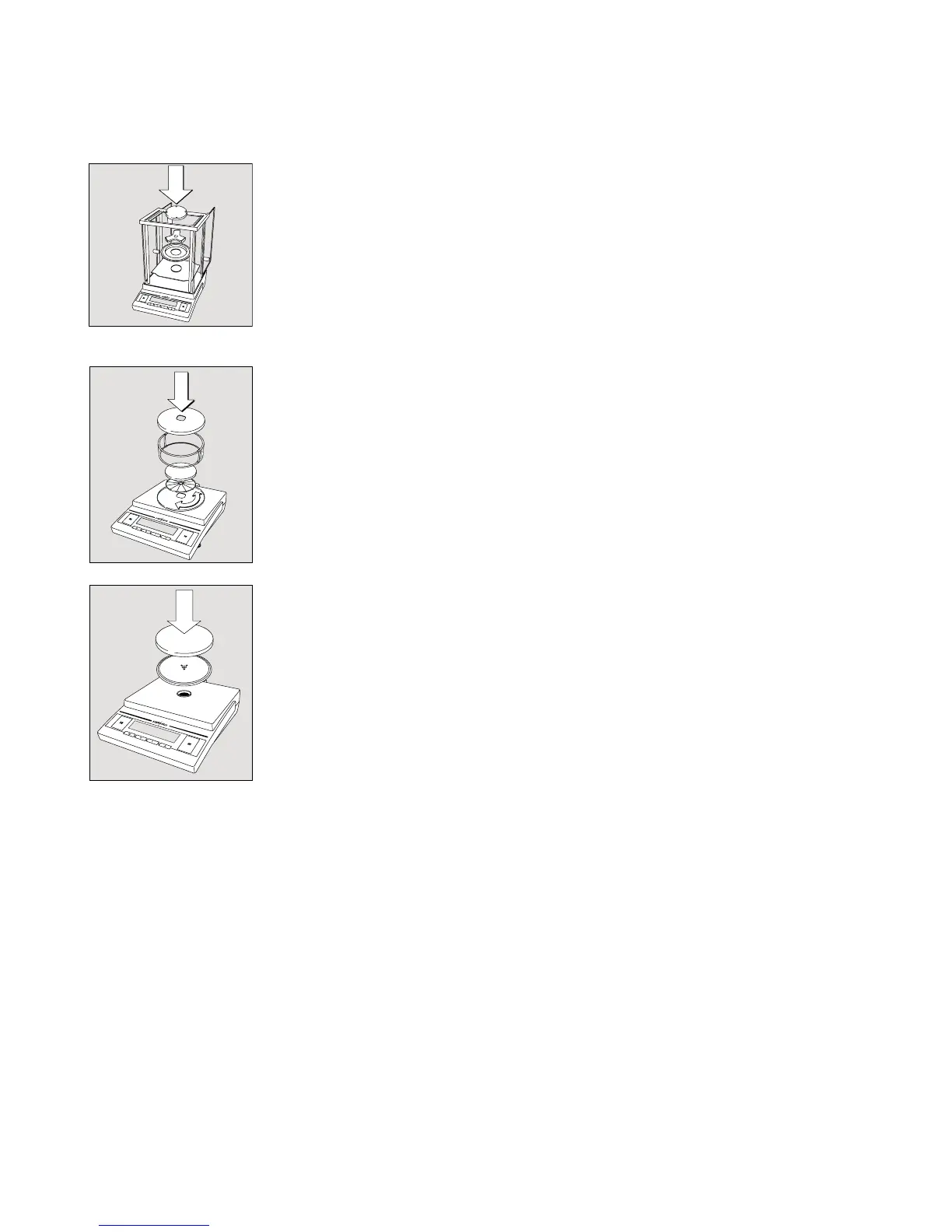

Setting up the Balance/ Scale
Balances/ Scales with an Analytical Draft Shield
Chamber:
 Place the components listed below inside
the chamber in the order given:
 Shield plate
 Shield ring
 Pan support
 Weighing pan
 Gem tray (only with model GC503)
Balances/ Scales with a Glass Draft Shield:
 Place the components listed below inside
the chamber in the order given:
 Draft shield base  place it on the balance so that
the edge for fitting the glass draft shield faces
upwards and turn it until it is firmly in place
 Pan support
 Weighing pan
 Glass draft shield
 Draft shield cover  place it on the balance so
that the edge faces downwards
Balances/ Scales with a Round Weighing Pan
 Place the components listed below inside
the chamber in the order given:
 Pan support
 Weighing pan
Balances/ Scales with a Rectangular Weighing Pan:
 Place the weighing pan on the balance/ scale
