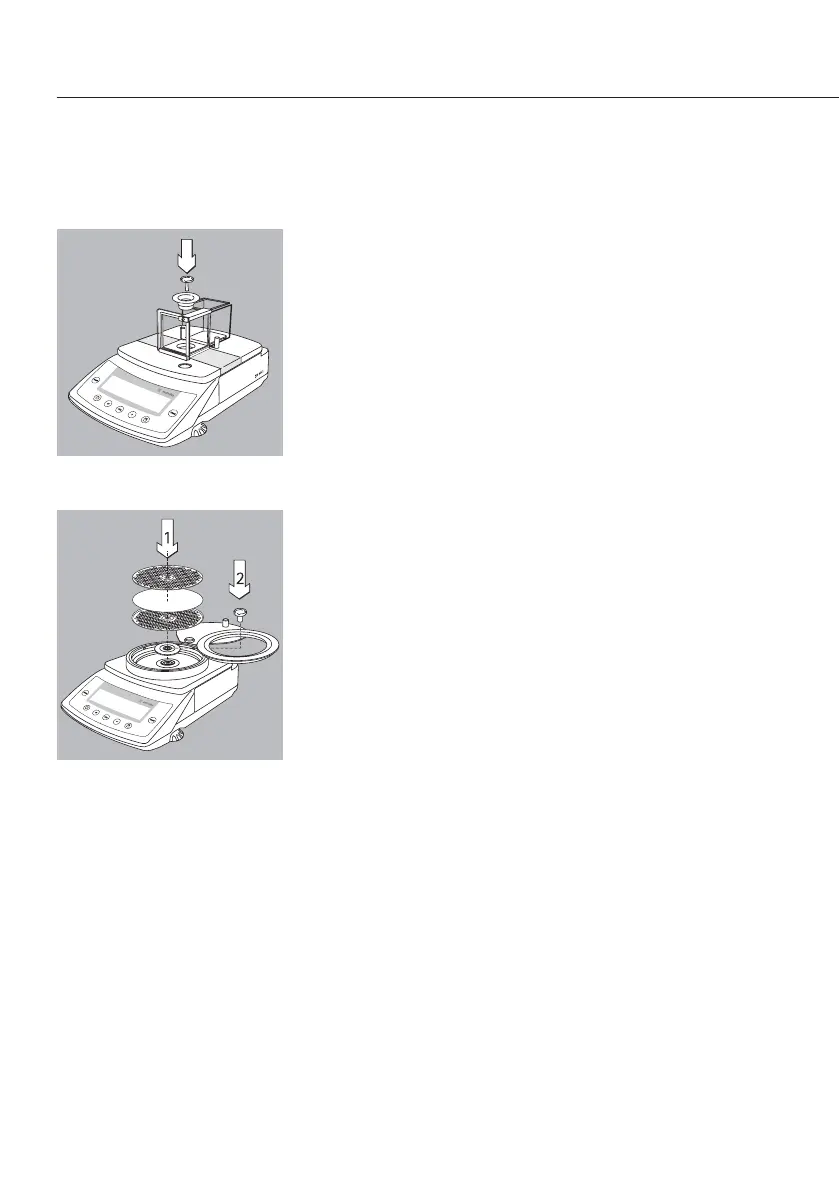

Installation
Model CPA2P
§ Remove the adhesive tape from the chamber doors
§ Place the components listed below inside the
chamber in the order given:
– Interior draft shield
– Weighing pan
Model CPA2P-F
1) Weighing filters of up to 125 mm d:
§ Lift the chamber lid gently and turn it to the
left or right
§ Place the components listed below inside
the chamber in the order given:
– Interior draft shield
– Filter pan
– Cover the sample (filter) with the lid
or
2) Weighing with the standard weighing pan
(20 mm d):
§ Lift the chamber lid gently and turn it to the
left or right
§ Place the components listed below inside
the chamber in the order given:
– Interior draft shield
– Spacer ring
– Weighing pan
6
